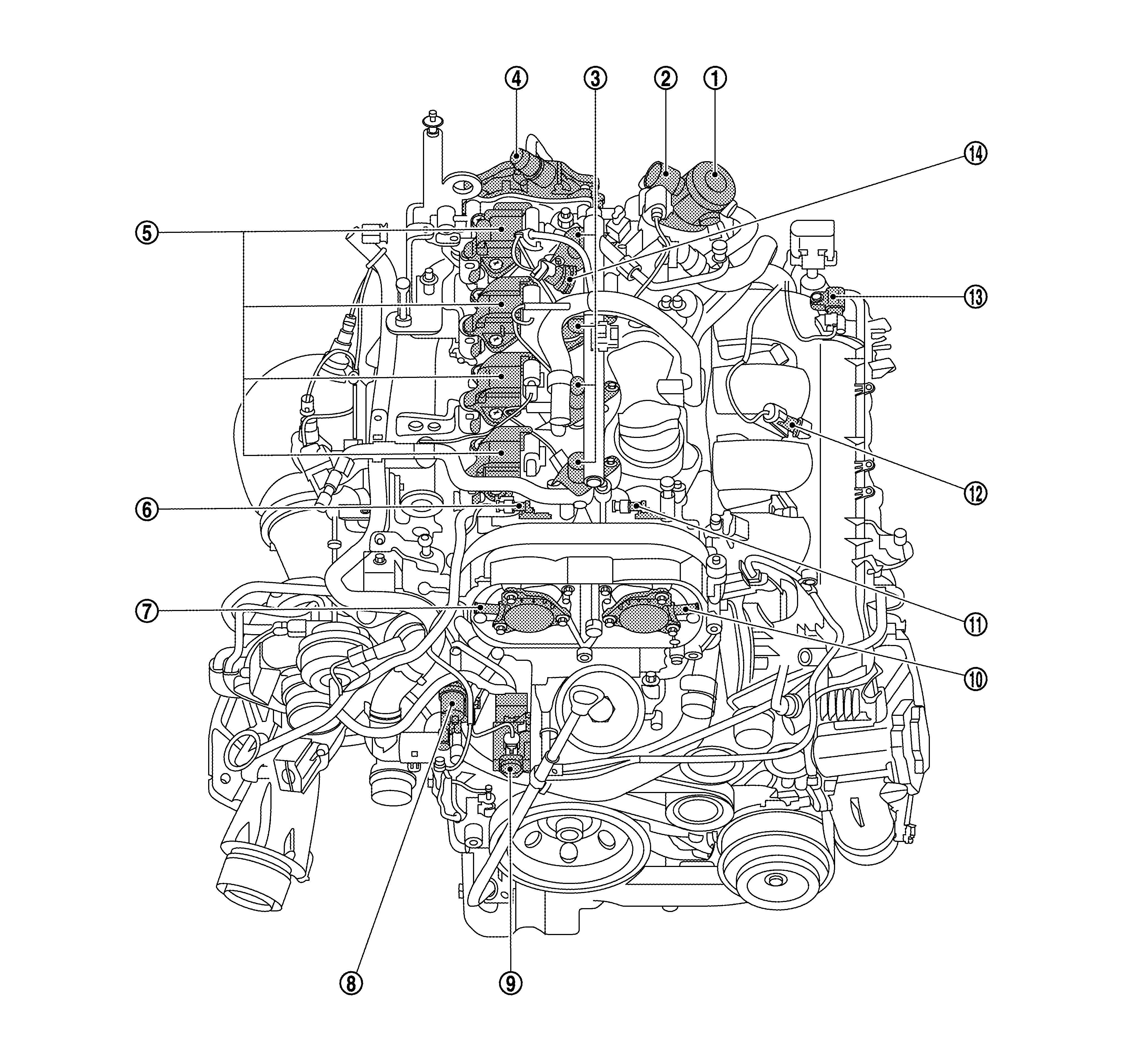

Engine Compartment (Top View)
|
No. |
Component |
Function |
|
|
High pressure fuel pump |
|
|
|
Quantity control valve |
|
|
|
Fuel injector |
|
|
|
Vacuum pump |
|
|
|
Ignition coil |
|
|
|
Exhaust camshaft position sensor |
Detects exhaust camshaft position. |
|
|
Exhaust camshaft actuator |
|
|
|
Coolant pump switchover valve |
|
|
|
Boost pressure control vacuum transducer |
|
|
|
Intake camshaft actuator |
|
|
|
Intake camshaft position sensor |
|
|
|
Charge air temperature sensor downstream of throttle valve |
Senses a charge air temperature downstream of throttle valve |
|
|
Pressure sensor downstream of throttle valve |
|
|
|
Fuel pressure and temperature sensor |
Senses a fuel pressure and fuel temperature in fuel rail. |
