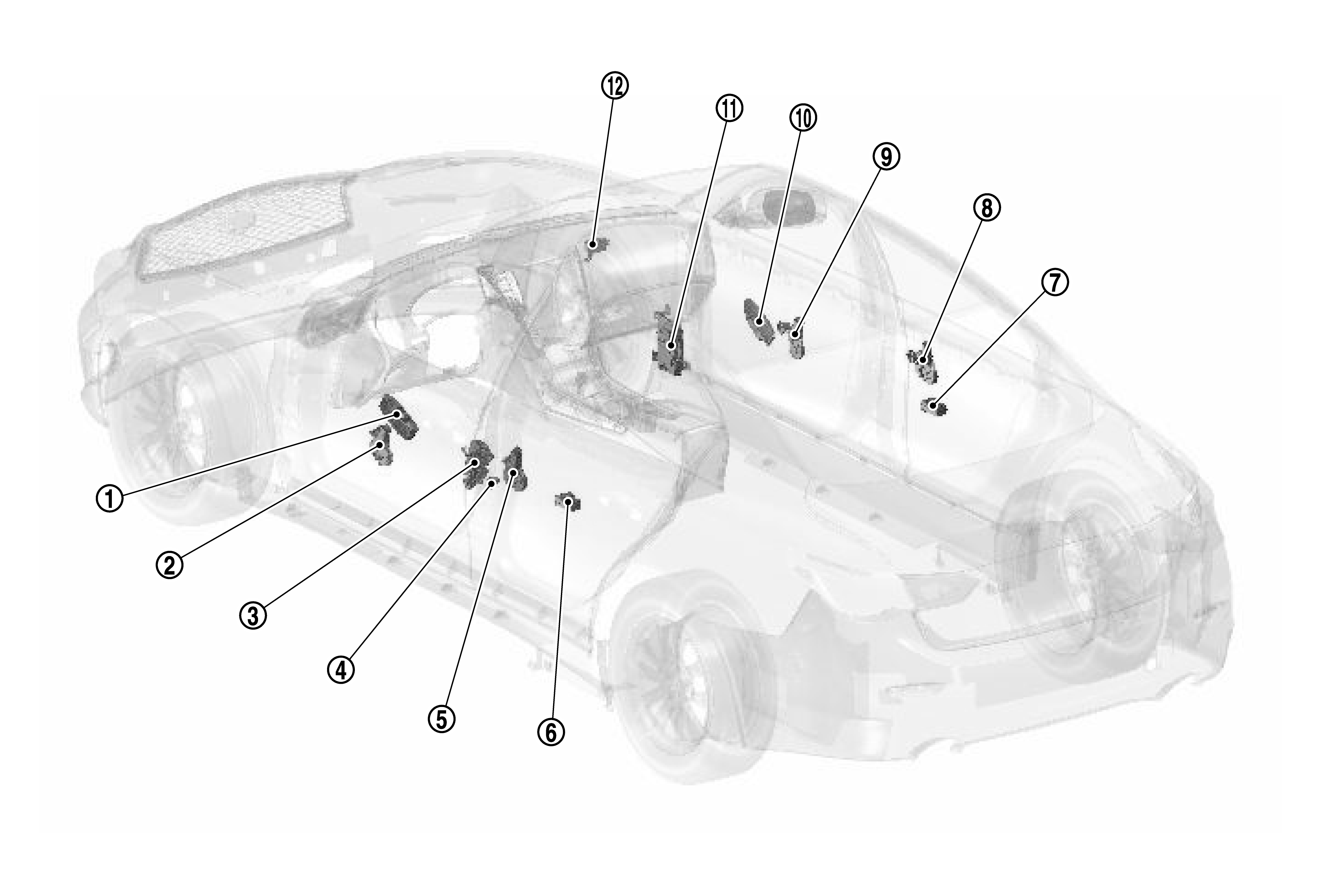

Component Parts: ComponentPartsLocation

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Power window main switch	Refer to Power Window Main Switch .
	Front power window motor (driver side)	Refer to Power Window Motor .
	Front door lock assembly (driver side) (door key cylinder switch)	Transmits operation condition of door key cylinder switch to power window main switch. Refer to Front Door Lock Assembly .
	Front door switch (driver side)	Detects door open/close condition and transmits to BCM. Refer to Door Switch .
	Rear power window motor LH	Refer to Power Window Motor .
	Rear power window switch LH	Refer to Rear Power Window Switch .
	Rear power window switch RH	Refer to Rear Power Window Switch .
	Rear power window motor RH	Refer to Power Window Motor .
	Front power window motor (passenger side)	Refer to Power Window Motor .
	Front power window switch (passenger side)	Refer to Front Power Window Switch (Passenger side) .
	BCM	Supplies power supply to power window switch. Controls retained power. Receives key ID signal from remote keyless entry receiver. Controls keyless power window operation via serial link. Refer to Component Parts Location .
	Remote keyless entry receiver	Receives key ID signal from the Intelligent Key, and then transmits to BCM.Refer to Remote Keyless Entry Receiver .
