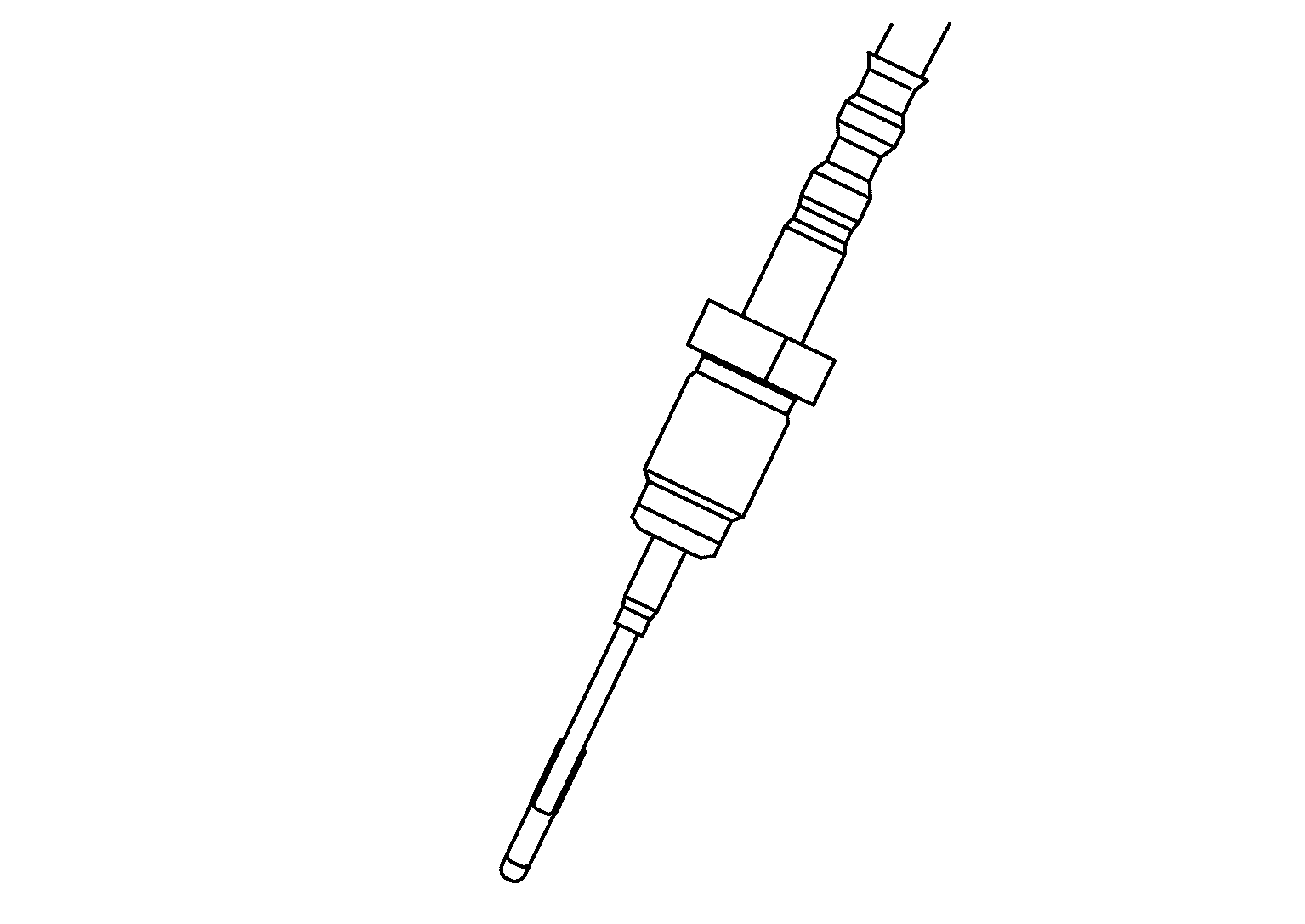

Exhaust Gas Temperature Sensor
The exhaust gas temperature sensor is installed to the turbine housing of turbocharger. This sensor uses a thermistor, and electric resistance changes according to temperature changes. The electrical resistance decreases with an increase in temperature.
|
Fluid temperature [ deg.C (deg.F)] |
Resistance (kOhm) |
|
100 (212) |
18.2 |
|
200 (392) |
4.0 |
|
300 (572) |
1.4 |
|
400 (752) |
0.65 |
|
500 (932) |
0.35 |
