Circuit Diagram (Turbo High Pressure Model)

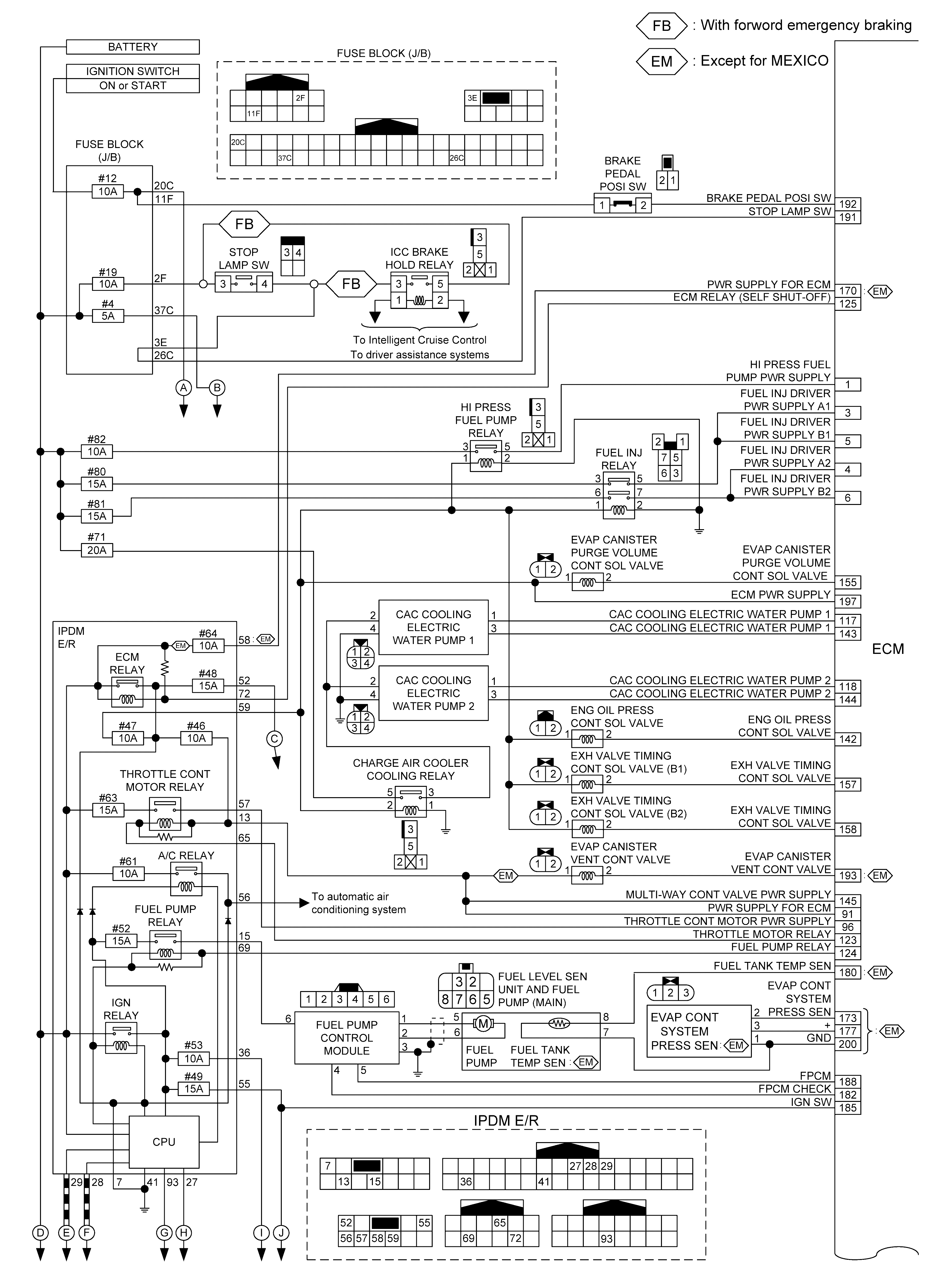

GNSILL0157605-605Courtesy of NISSAN NORTH AMERICA, INC.

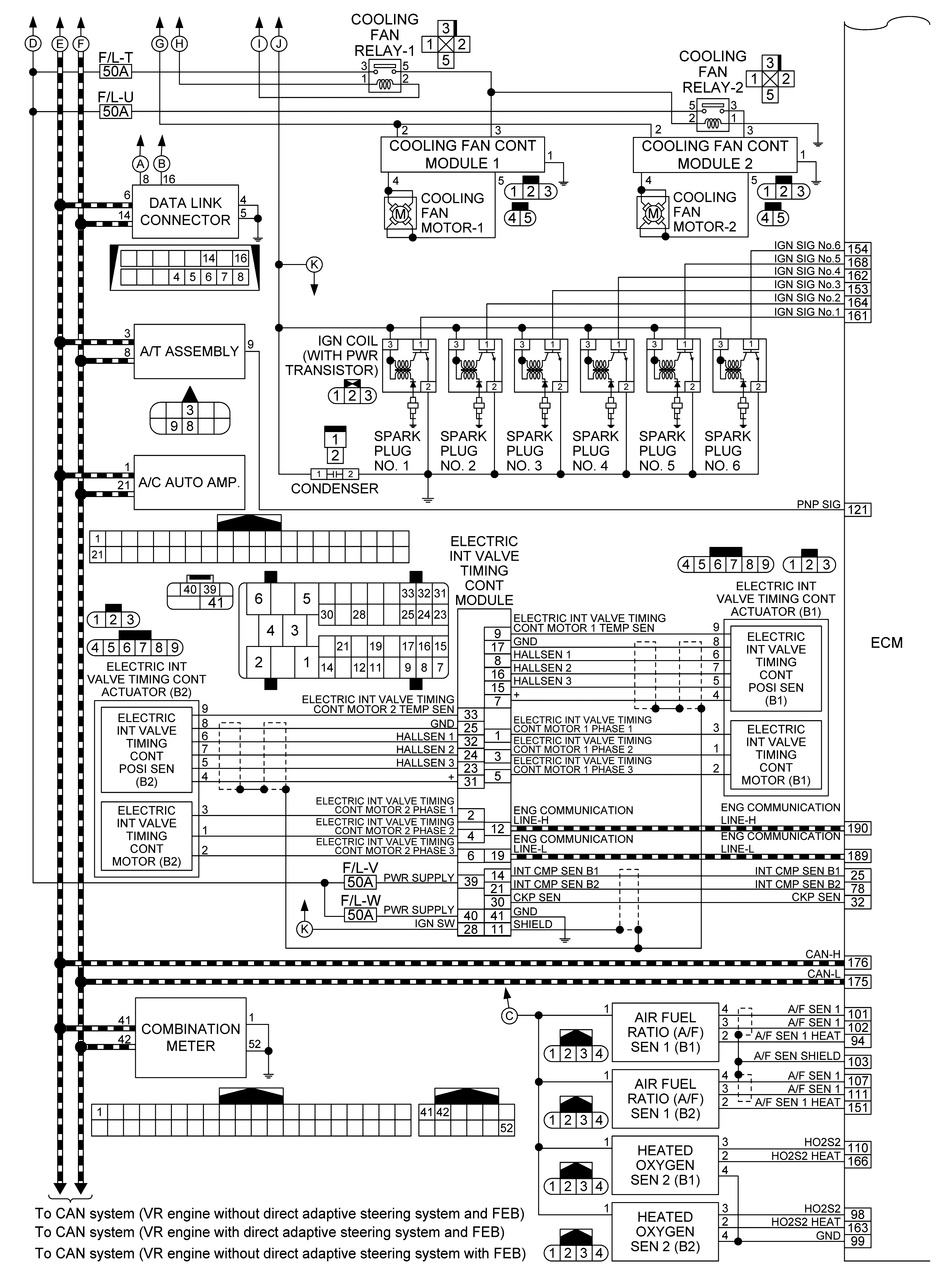

GNSJSBIB0184GB-184Courtesy of NISSAN NORTH AMERICA, INC.

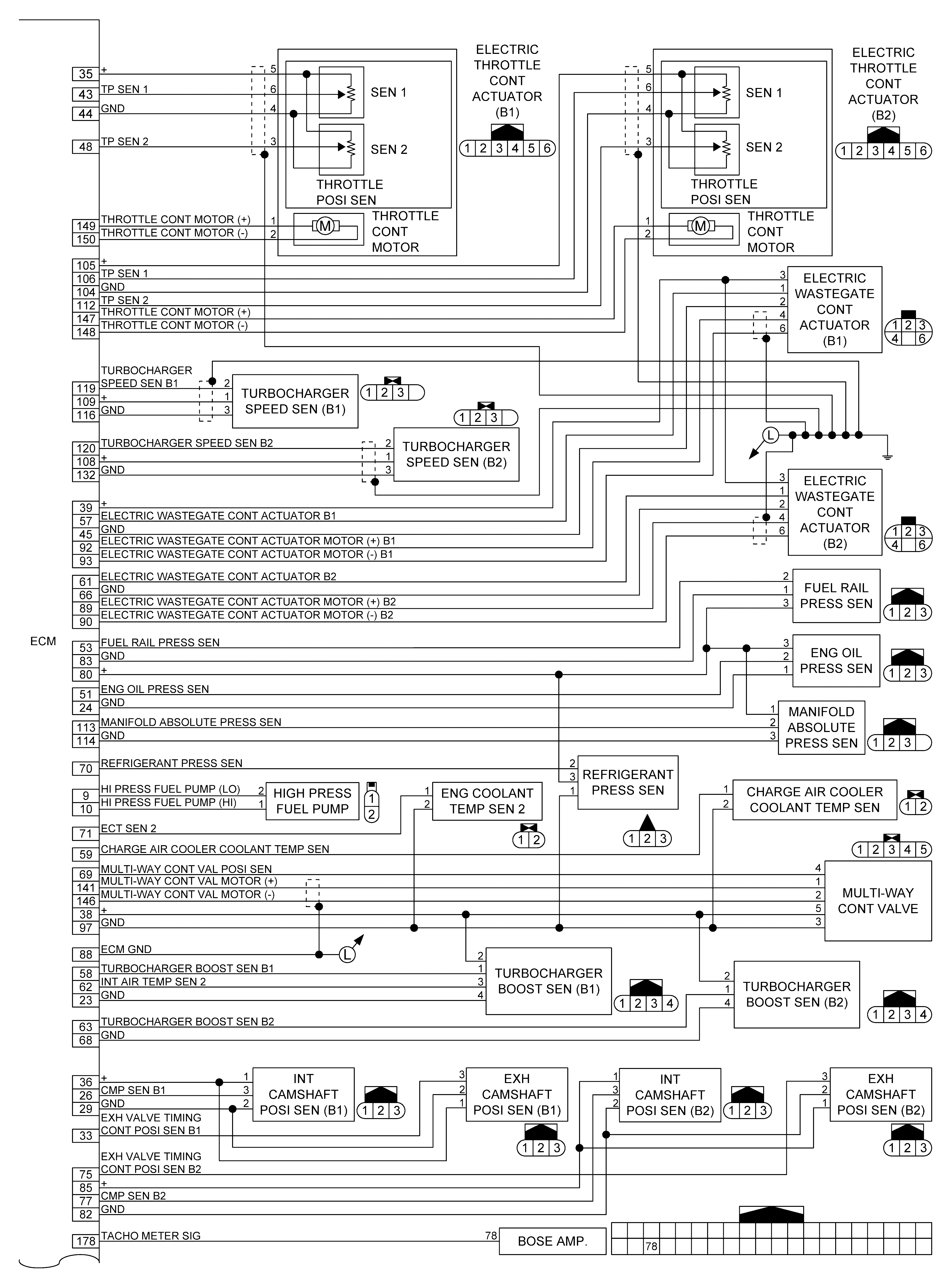

GNSJSBIB1396GB-396Courtesy of NISSAN NORTH AMERICA, INC.

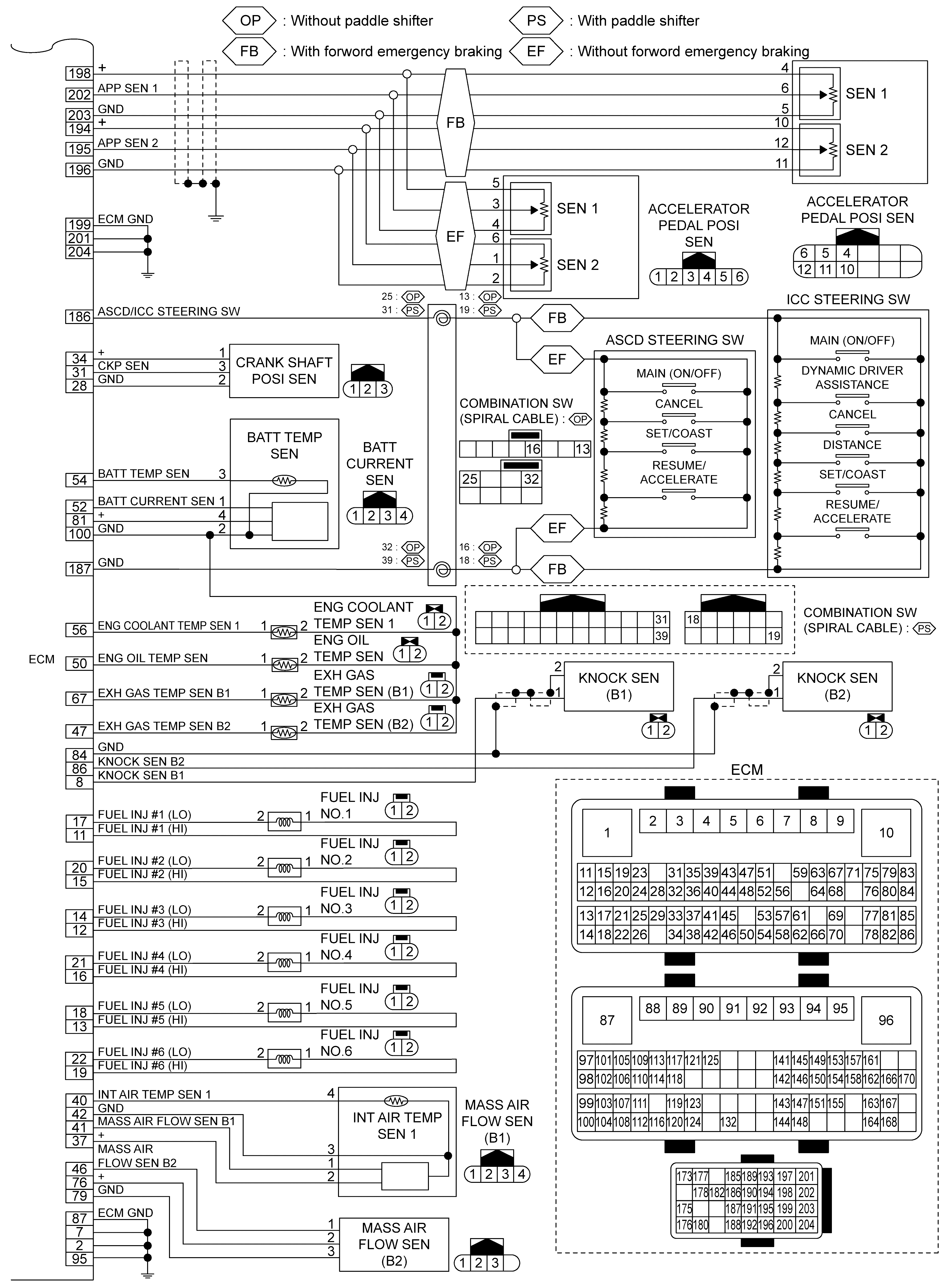

GNSILL0129442-442Courtesy of NISSAN NORTH AMERICA, INC.
