Work Procedure (Radar Alignment): Description

The radar alignment is performed automatically with CONSULT.

1. PERFORM RADAR ALIGNMENT
   1. Start the engine.
   2. Connect CONSULT and select "Work support" of "ICC sensor".
   3. Select "Calibration of long range radar" after the "Work support" screen is displayed.
      NOTE: Confirm the following items;

      • The target should be accurately placed.
      • The vehicle should be stopped.
   4. Select "Start" after the "Calibration of long range radar" screen is displayed.
      NOTE: If the adjustment screen does not appear or an error appears within approximately 10 seconds after "Calibration of long range radar" is selected, the following causes are possible.

      • The ICC target board is not installed in the correct position.
      • Adequate space is not secured around the ICC target board.
      • The radar alignment procedure exceeds its proper installation range.
        • Deformation of vehicle body.
        • Deformation of unit.
        • Deformation of bracket.
      • The area is not suitable for the adjustment work.
      • Front emblem (ICC sensor view) is not clean.
      • ICC system malfunction is displayed.

   GO TO 2.

2. RADAR ALIGNMENT
   1. Once the radar alignment procedure is started, you will be prompted by the CONSULT for the next instruction is displayed on the CONSULT screen.

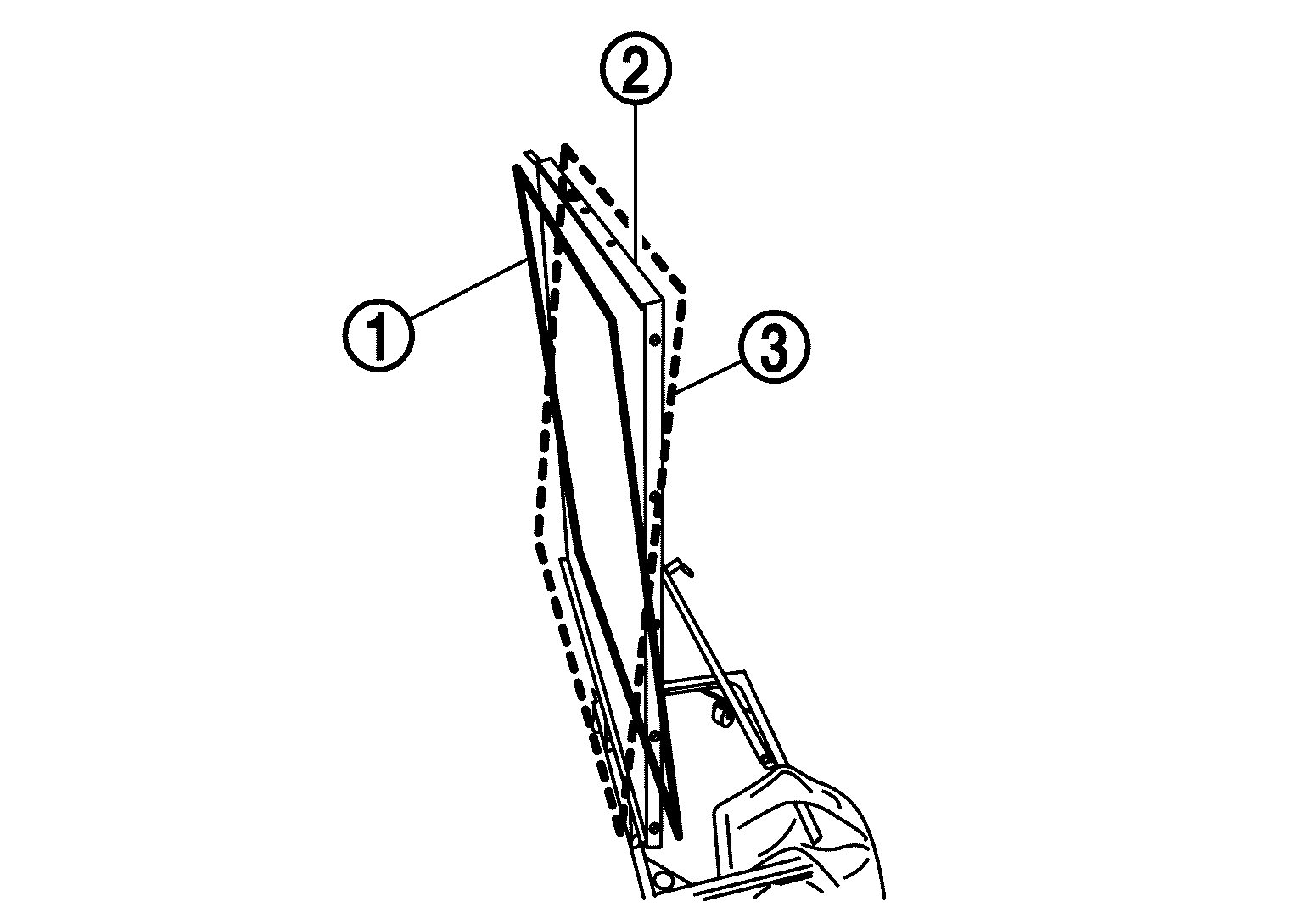

   2. Check ICC target board position (vertical position).

      Courtesy of NISSAN NORTH AMERICA, INC.

      • Position (top tilted toward vehicle) (not used)
      • Position (vertical position)
      • Position (top tilted away from vehicle) (not used)

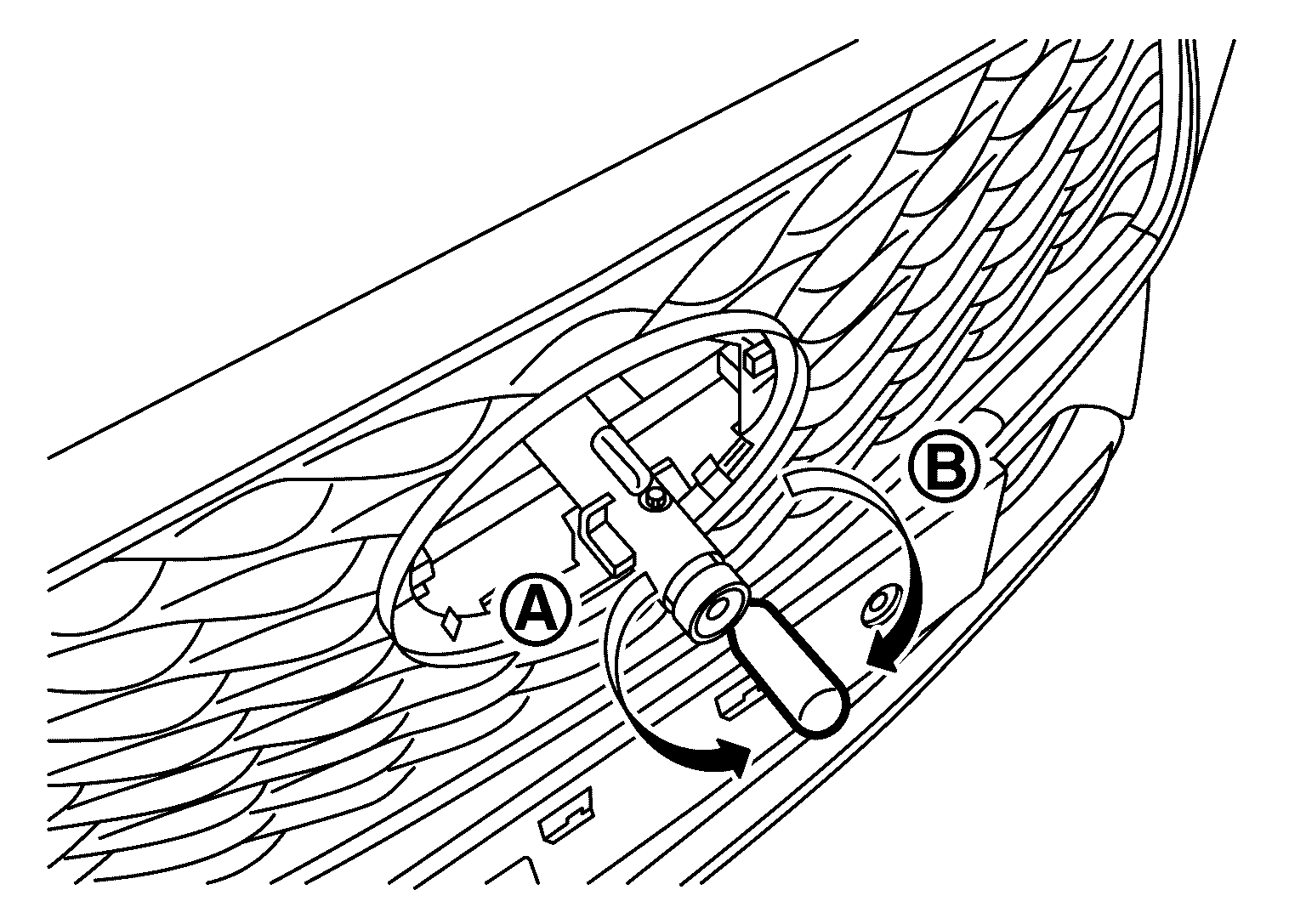

   3. Following instructions to perform physical adjustment to the sensor which may include turning the screw driver (special tool) by a specified number of turns counter-clockwise or clockwise as specified on CONSULT.

      Courtesy of NISSAN NORTH AMERICA, INC.

      CAUTION: Be careful not to cover the front side of the ICC sensor with a hand or any other body part during adjustment.
      NOTE: Reading on the CONSULT is not real-time and not automatically update while turning the tool. To check the angle, end the alignment and restart the procedure.

   ALIGNMENT END
