Work Procedure (Preparation)

ADVANCE PREPARATION FOR RADAR ALIGNMENT
1. Adjust all tire pressure to the specified value.
2. Empty the vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)
3. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.
4. Shift the selector lever to "P" position, and release the parking brake.
5. Clean the front emblem .
  NOTE: Check that the ICC sensor surface is clean.
GO TO 2.

PREPOSITION TARGET BOARD

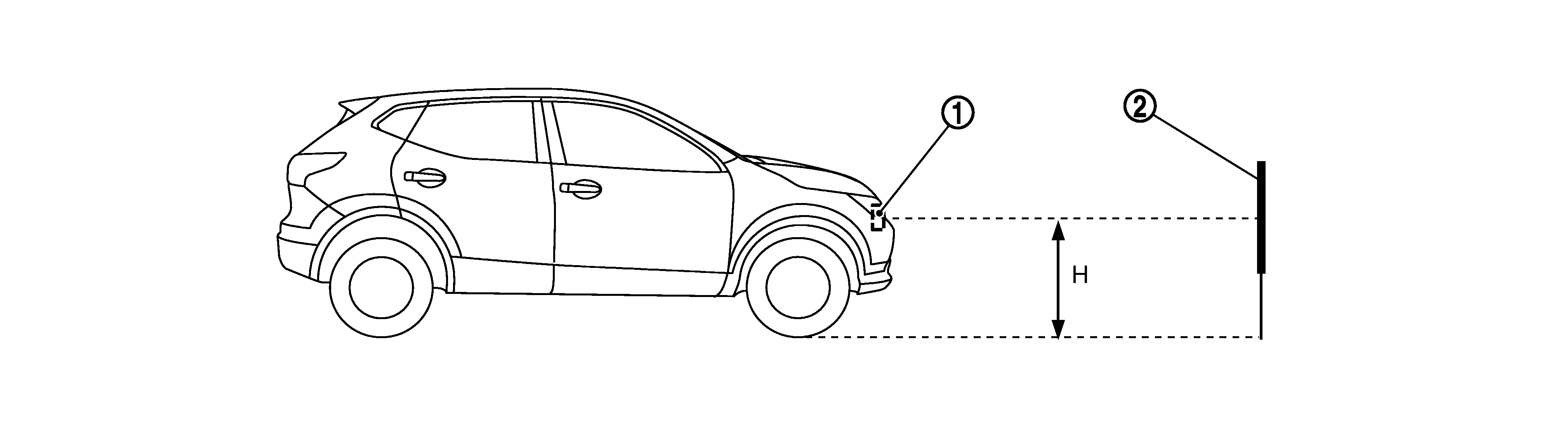

Adjust the height of the ICC target board center position.

Courtesy of NISSAN NORTH AMERICA, INC.

H	: 627 mm (24.68 in) (Without roof rail)
H	: 662 mm (26.06 in) (With roof rail)
	: ICC sensor

NOTE: Adjusting the ICC target board height may not allow the center to reach to H. In this case, raise the height to upper limit of the adjustment range.

CAUTION: To prevent damage to ICC target board, use a weight to protect the board from falling.

GO TO 3.

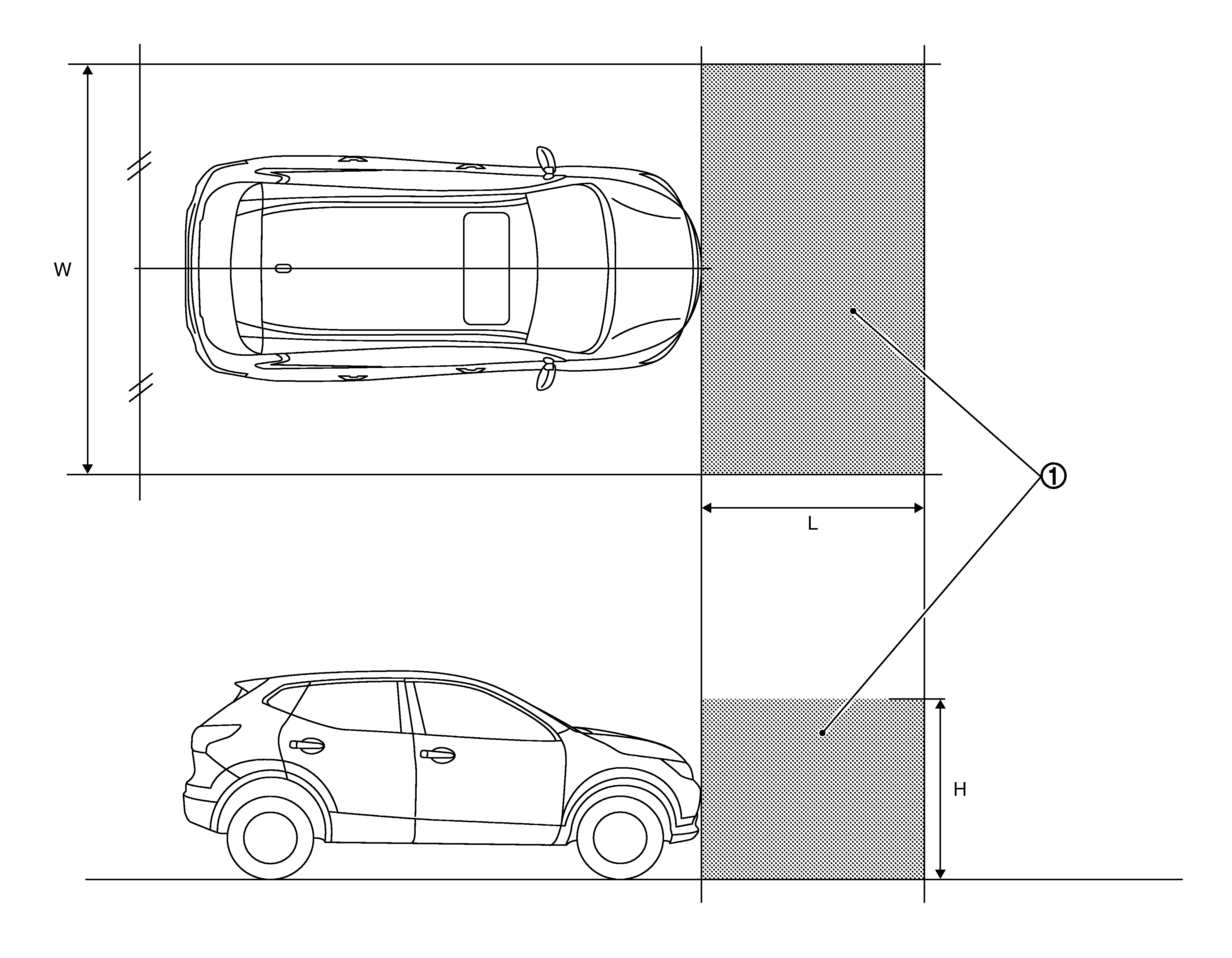

RADAR ALIGNMENT OPERATION AREA

Position the vehicle in a place that is level and where area can be secured.

Courtesy of NISSAN NORTH AMERICA, INC.

W	: 3, 000 mm (118.11 in)
L	: 2, 000 mm (78.74 in)
H	: 2, 000 mm (78.74 in)

NOTE:

is a no object zone.

Proceed to Work Procedure (Setting The ICC Target Board) .
