Work Procedure (Setting The ICC Target Board): Description

Accurate adjustment of the radar alignment requires that the ICC target board be accurately positioned.

CAUTION: If the radar alignment is adjusted with the ICC target board in the incorrect position, the FEB system does not function normally.

PREPARATION OF SETTING ICC TARGET BOARD (1)

Courtesy of NISSAN NORTH AMERICA, INC.

"A"-"E" ("C"-"F")	: 2, 017 mm (79.41 in) (Without roof rail)
	: 2, 027 mm (79.80 in) (With roof rail)

Mark points "A", "B", "C" and "D"at the center of the lateral surface of each wheels.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Hang a string with a cone from the fender so as to pass through the center of wheel, and then mark a point at the center of the lateral surface of the wheel.

Draw line "LH" passing through points "A" and "B" on the left side of vehicle.
NOTE: Approximately 2 m (6.56 ft) or more from the front end of vehicle.
Mark point "E" on the line "LH" at the positions 2, 017 mm (79.41 in) (without roof rail) or 2, 027 mm (79.80 in) (with roof rail) from point "A".
Draw line "RH" passing through points "C" and "D" on the right side of vehicle in the same way as step 2.
NOTE: Approximately 2 m (6.56 ft) or more from the front end of vehicle.
Mark point "F" on the line "RH" at the positions 2, 017 mm (79.41 in) (without roof rail) or 2, 027 mm (79.80 in) (with roof rail) from point "C".
Draw line "FW" passing through the points "E" and "F" on the front side of vehicle.
Mark point "X" at the center of point "E" and "F" on the line "FW".
CAUTION: Make sure that "E" to "X" is equal to "F" to "X".

GO TO 2.

SETTING ICC TARGET BOARD
Place the center of ICC target board on point "X" at line "FW" and install the ICC target board.

CAUTION: For performing the radar alignment correctly, securely install (ICC target board) to be parallel with the "E-F" line.

GO TO 3.

CHECK THE ICC TARGET BOARD INSTALLATION AREA

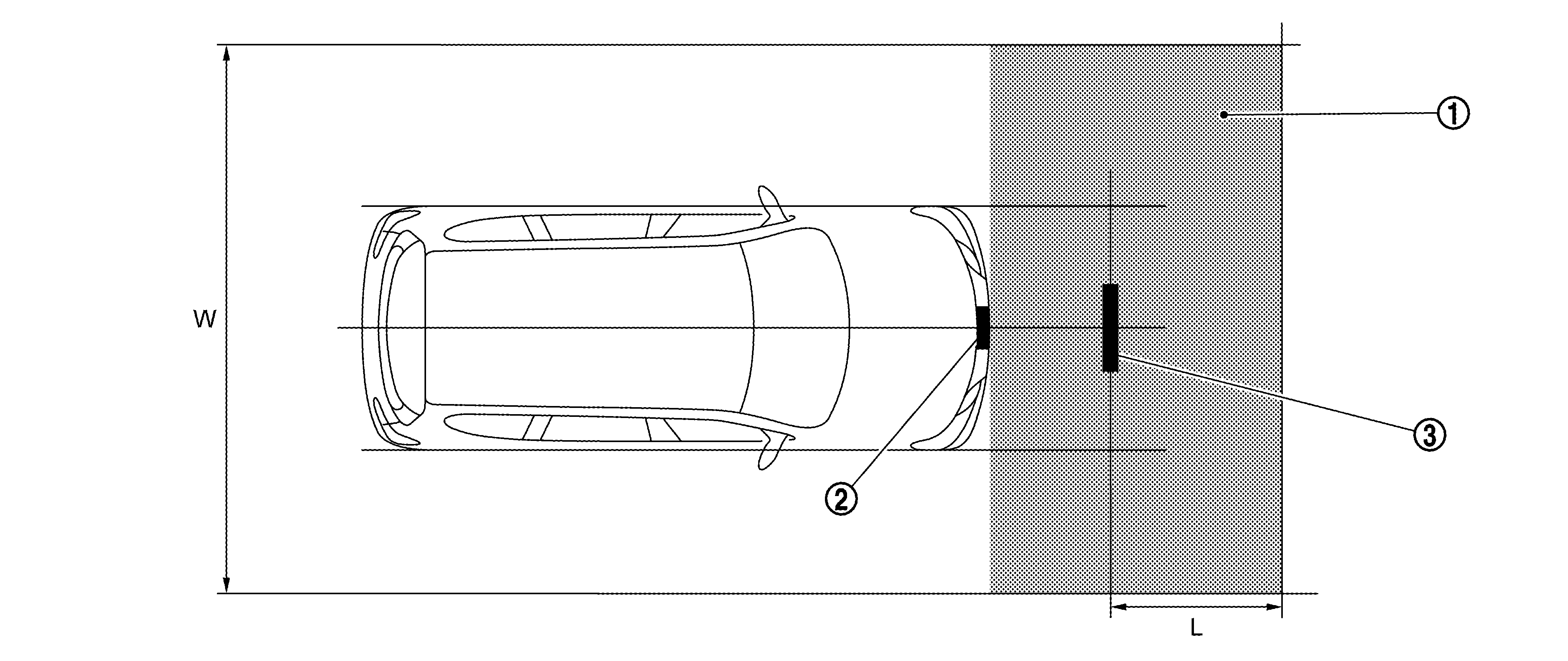

Do not place anything other than ICC target board in the space shown in the figure (view from top).

Courtesy of NISSAN NORTH AMERICA, INC.

	No object zone		Distance sensor		ICC target board
W.	3, 000 mm (118.11 in)	L _.	1, 000 mm (39.37 in)

Proceed to Work Procedure (Radar Alignment) .
