Exploded View

CAUTION: Always perform the ICC sensor alignment after the replacement, removal and installation of ICC sensor. Refer to Application Notice .

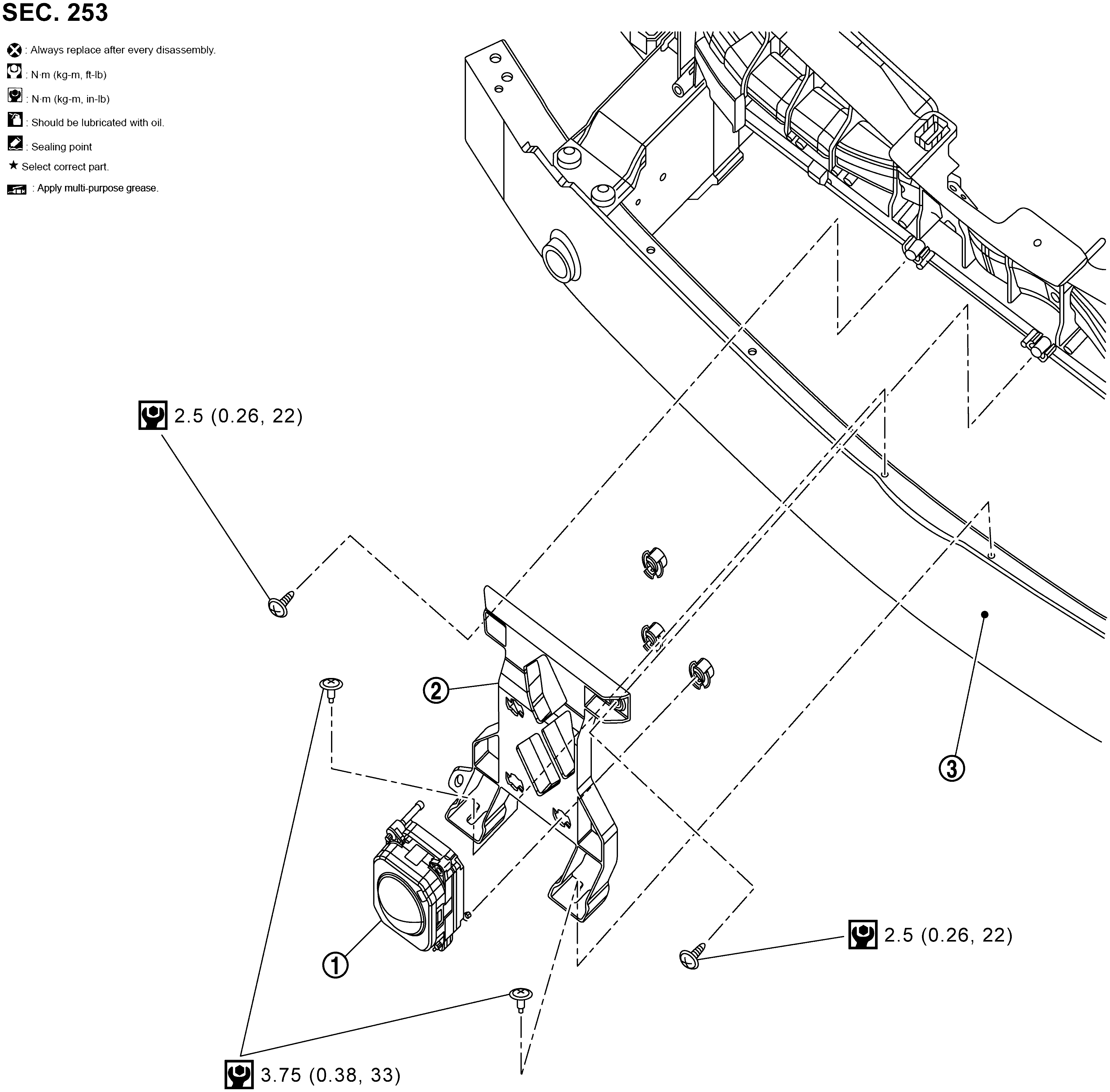

Fig 1: Exploded View Of ICC Sensor With Torque Specifications
GNSJSOIA2256GB-256Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

ICC sensor

SYMBOL

Bracket

SYMBOL

Front bumper reinforcement

SYMBOL

: N.m (kg-m, in-lb)
