Switch Name and Function

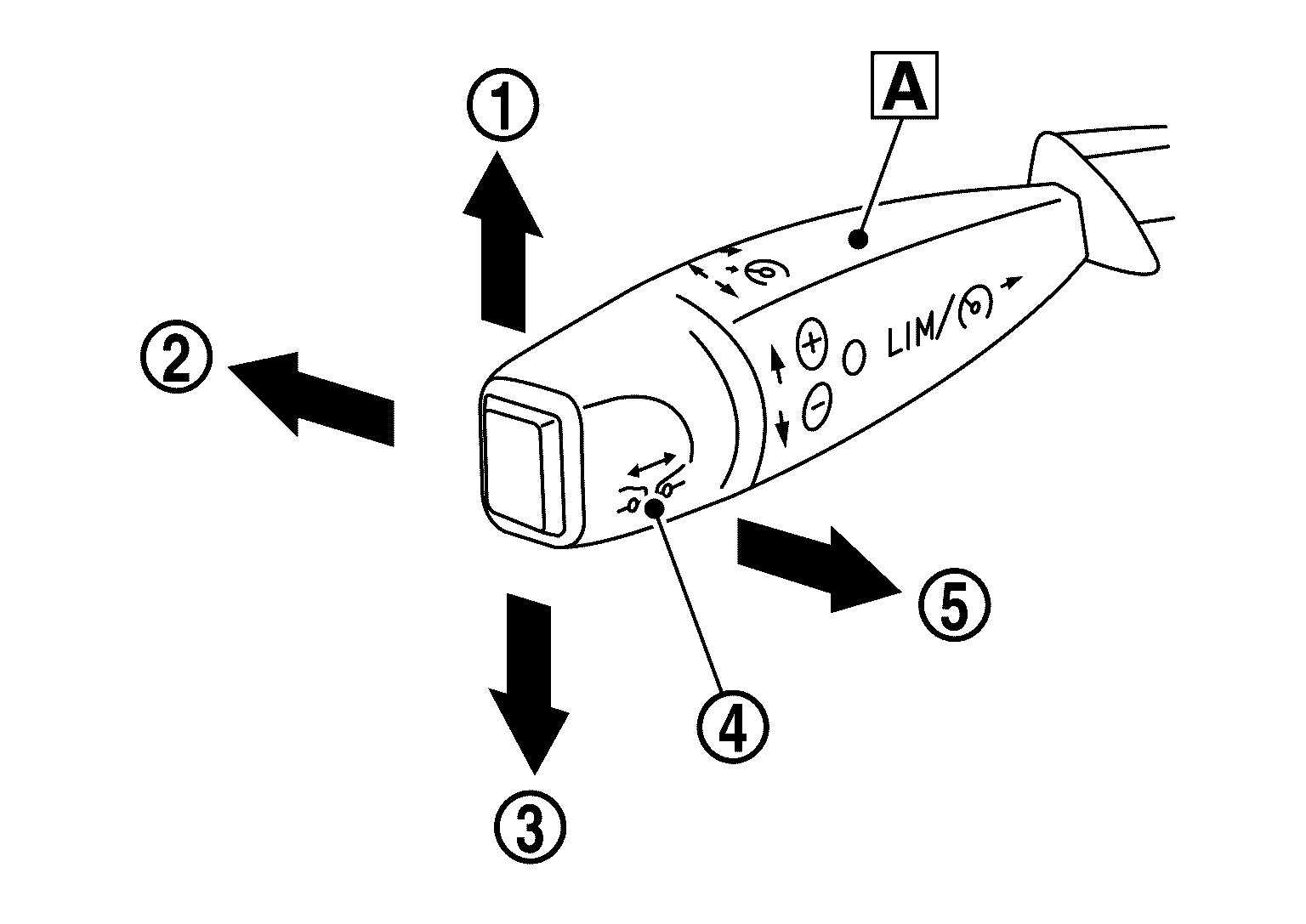

GNSJSOIA2488Z-488Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

: Cruise Control Lever

No.

Switch name

Description

SYMBOL

Accelerate and set switch

Store the current speed or a higher speed

SYMBOL

Switch OFF switch

Deactive the ICC system

SYMBOL

Decelerate and set switch

Store the current speed or a lower speed

SYMBOL

Distance control switch

Set the specified minimum distance

SYMBOL

Resume from memory switch

Store the current speed or call up the last store speed
