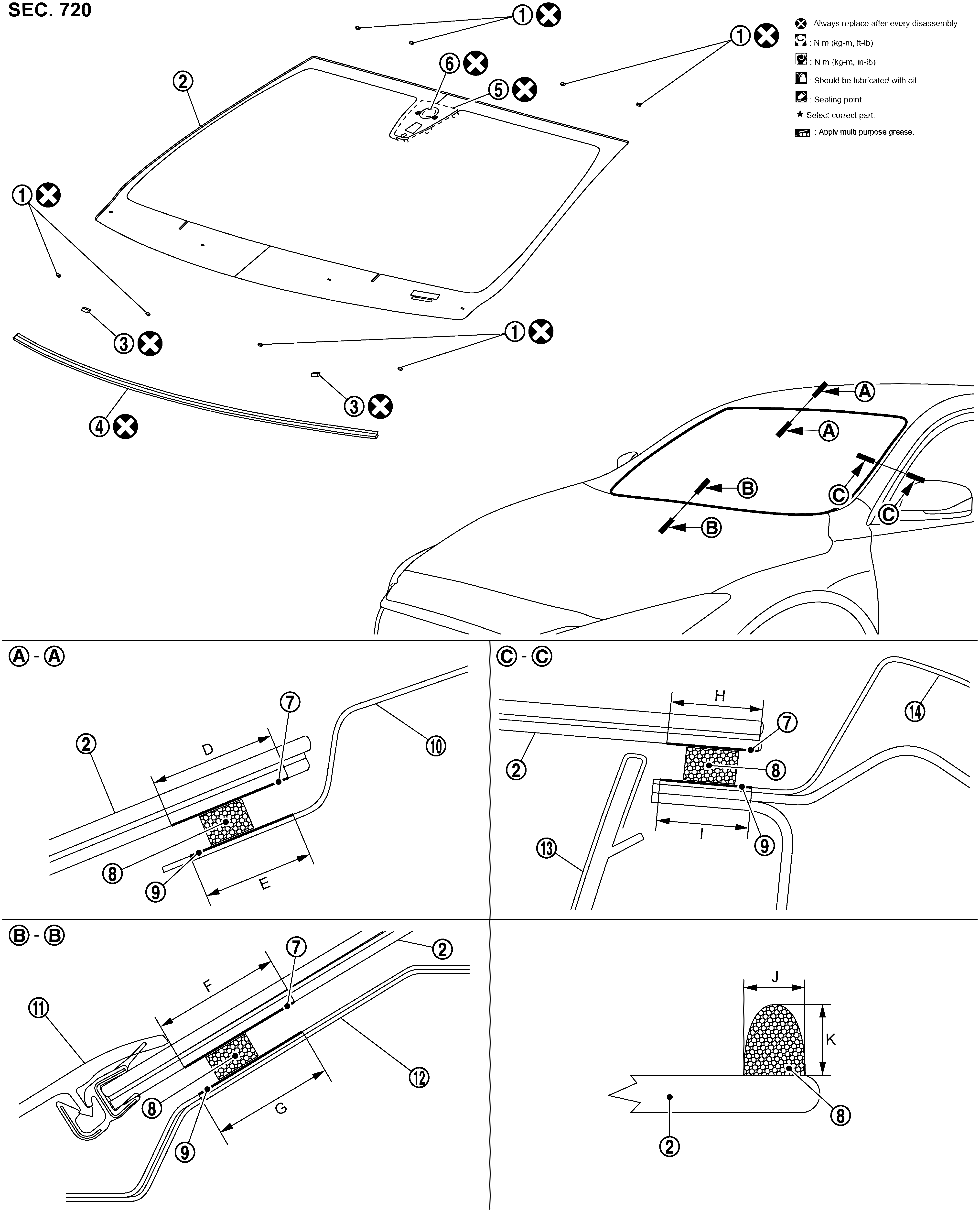

Without Glass Roof And Front Camera
|
|
Windshield glass spacer |
|
Windshield glass |
|
Spacer |
|
|
Windshield glass molding |
|
Electric unit bracket |
|
Inside mirror base |
|
|
Glass primer |
|
Adhesive |
|
Painted surface primer |
|
|
Roof panel |
|
Cowl top cover |
|
Cowl top panel |
|
|
Front pillar garnish |
|
Body side outer panel |
||
|
|
: Always replace after every disassembly. |
||||
Unit: mm (in)
|
Portion |
Primer range |
Adhesive range |
|||
|
J |
K |
||||
|
Windshield glass - Roof panel |
|
D |
22.0 - 25.0 (0.87 - 0.98) |
7.0 (0.276) |
12.0 (0.472) |
|
E |
20.0 (0.79) |
-- |
-- |
||
|
Windshield glass - Cowl top panel |
|
F |
22.0 - 25.0 (0.87 - 0.98) |
7.0 (0.276) |
12.0 (0.472) |
|
G |
23.0 (0.91) |
-- |
-- |
||
|
Windshield glass - Body side outer panel |
|
H |
16.0 (0.63) |
7.0 (0.276) |
12.0 (0.472) |
|
I |
15.0 (0.59) |
-- |
-- |
||
