Removal and Installation: Removal

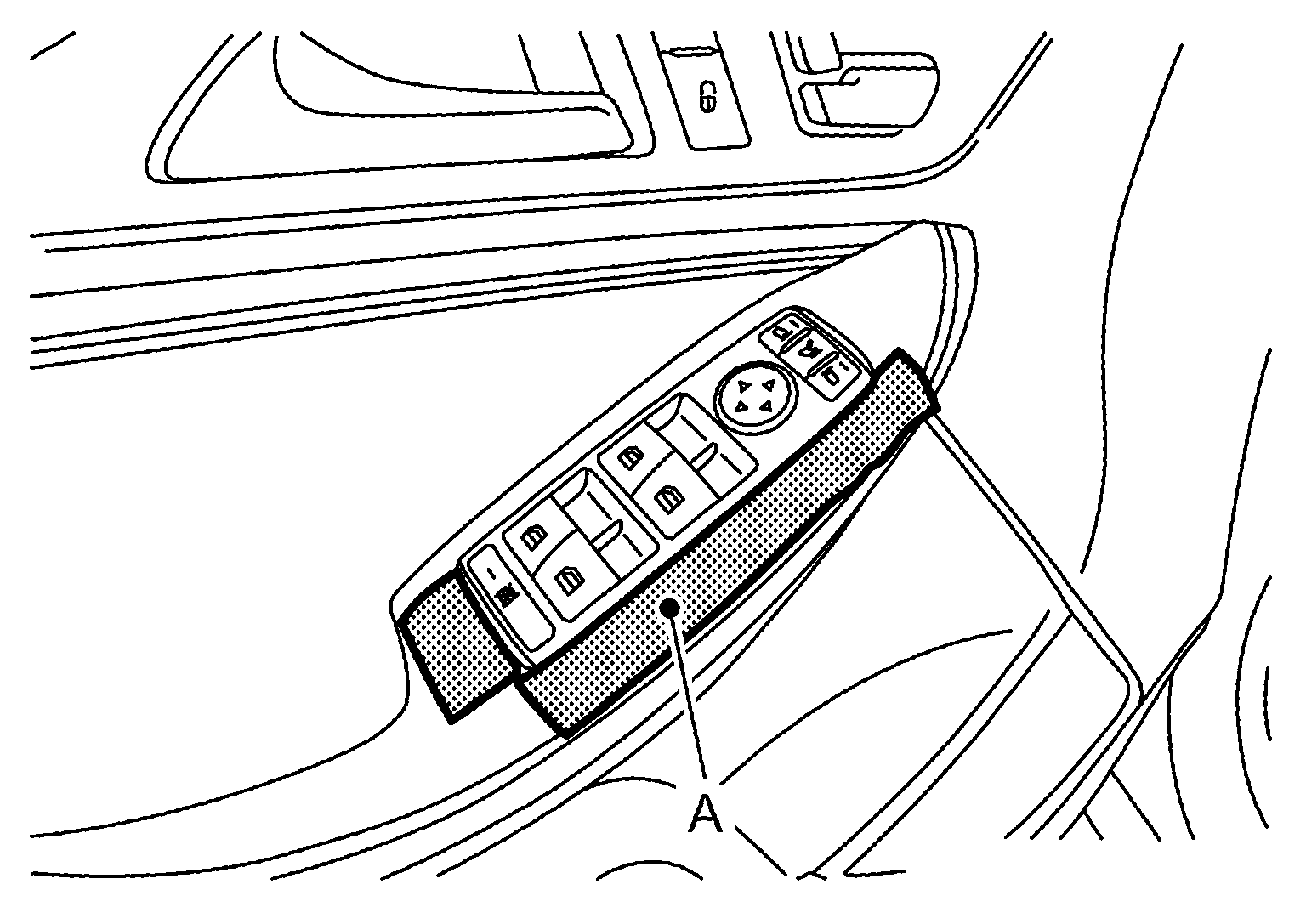

Apply protective tape (A) on the front door grip to protect from damage.

Courtesy of NISSAN NORTH AMERICA, INC.

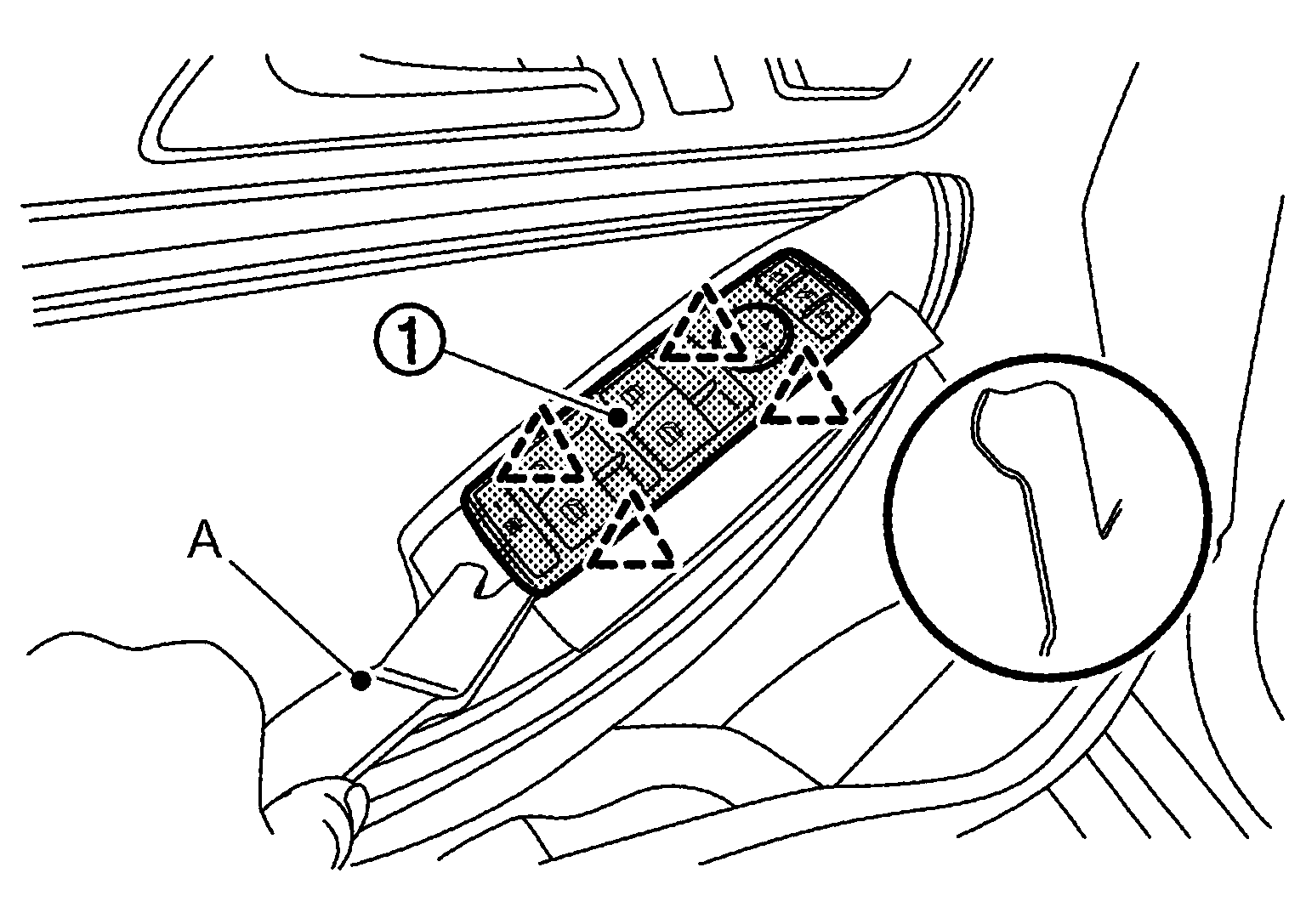

Disengage power window main switch fixing pawls using removal tool (A), and than remove power window main switch from door handle.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

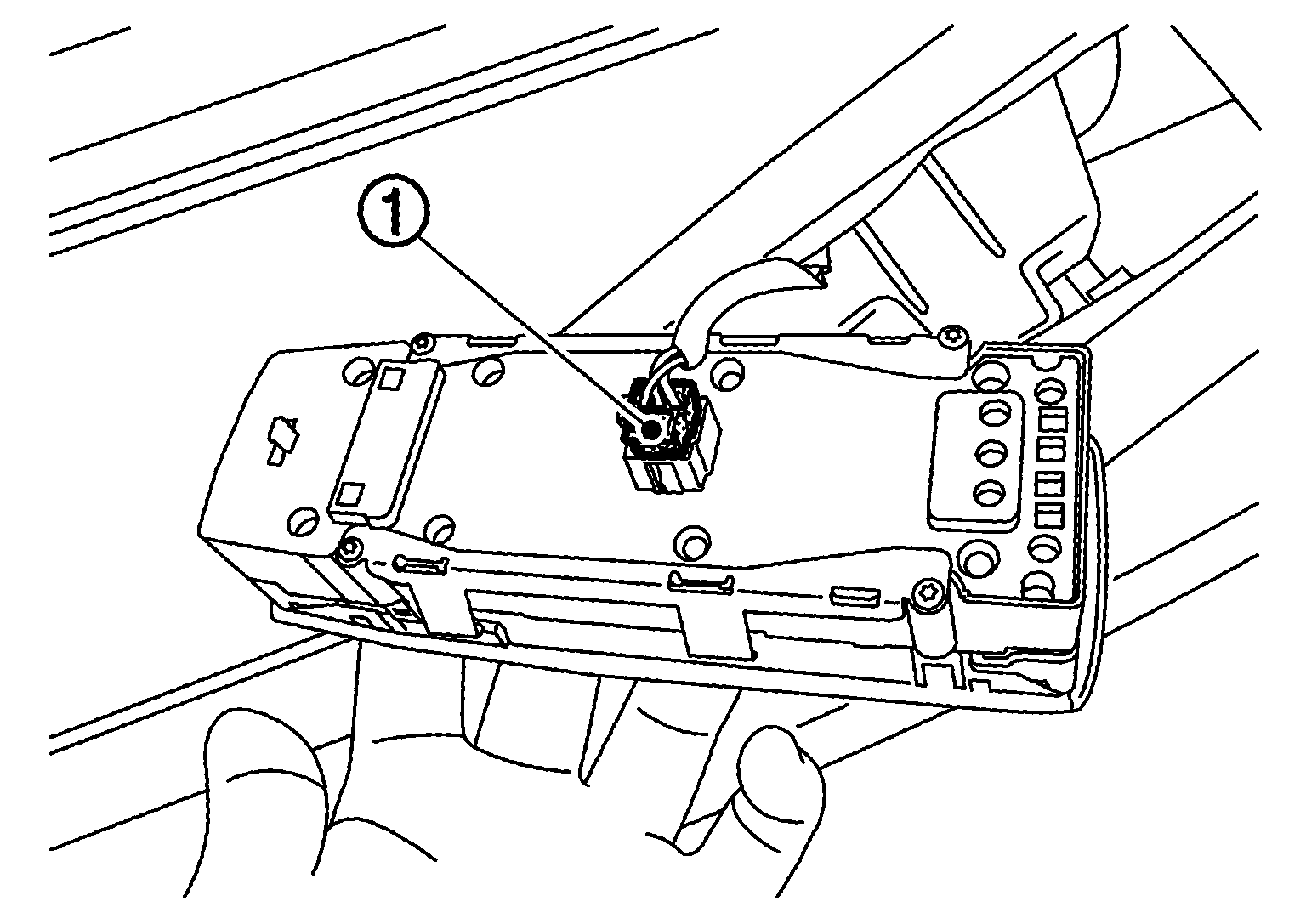

Disconnect power window main switch connector from power window main switch.

Courtesy of NISSAN NORTH AMERICA, INC.
