Removal and Installation: Removal

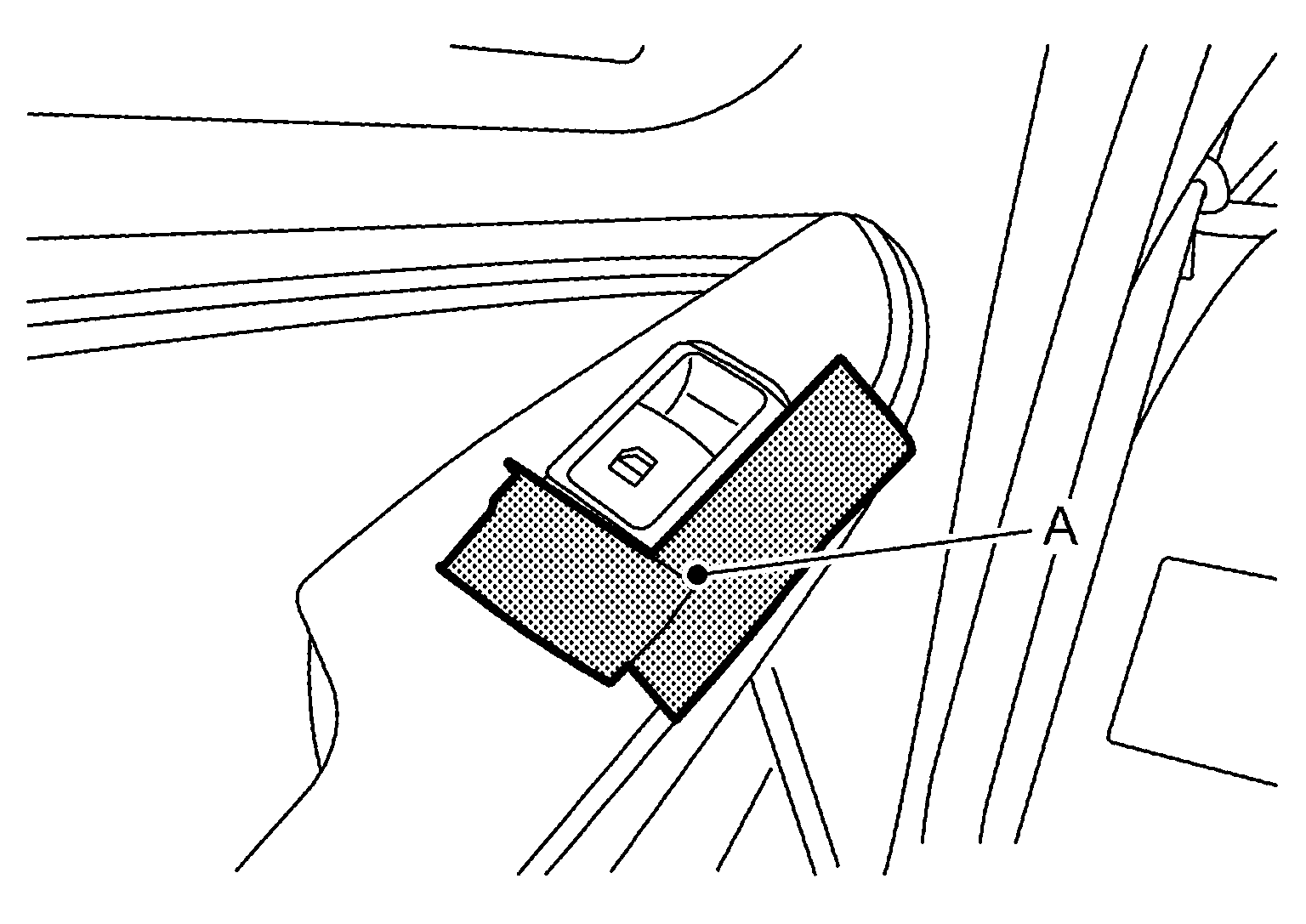

Apply protective tape (A) on the rear door grip to protect from damage.

Courtesy of NISSAN NORTH AMERICA, INC.

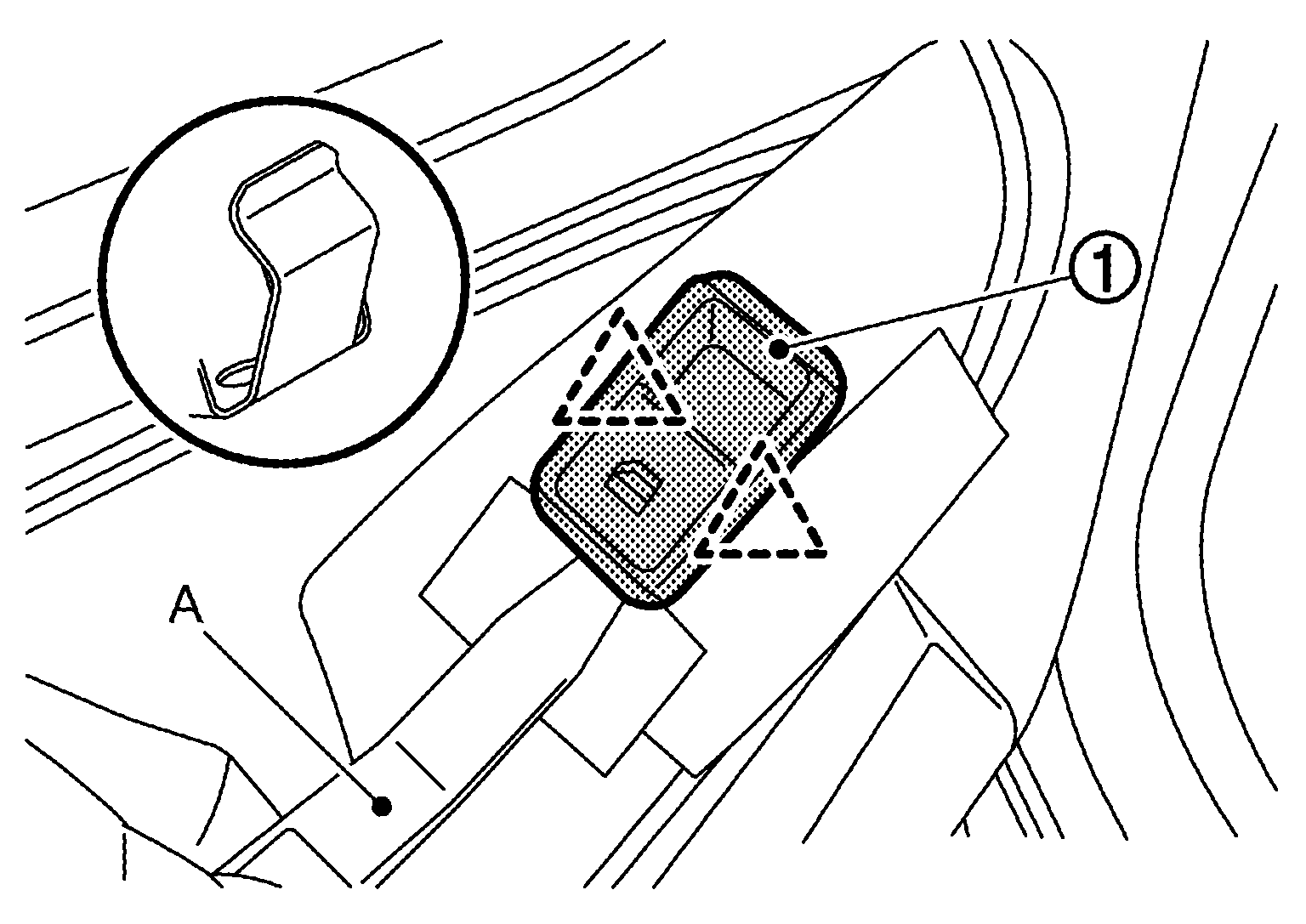

Disengage rear power window switch fixing pawls using removal tool (A), and than remove rear power window switch from door handle.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

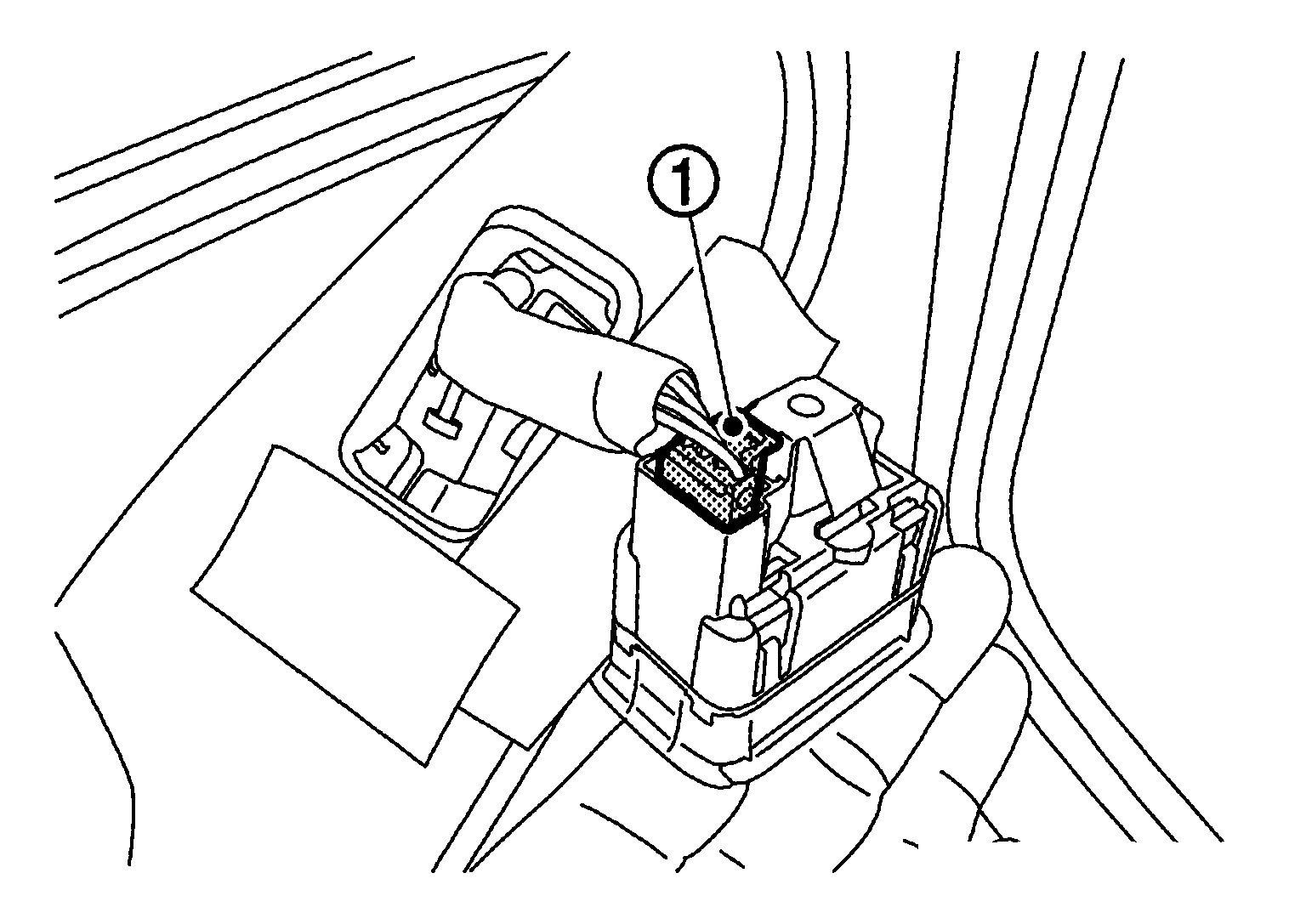

Disconnect rear power window switch connector from rear power window switch.

Courtesy of NISSAN NORTH AMERICA, INC.
