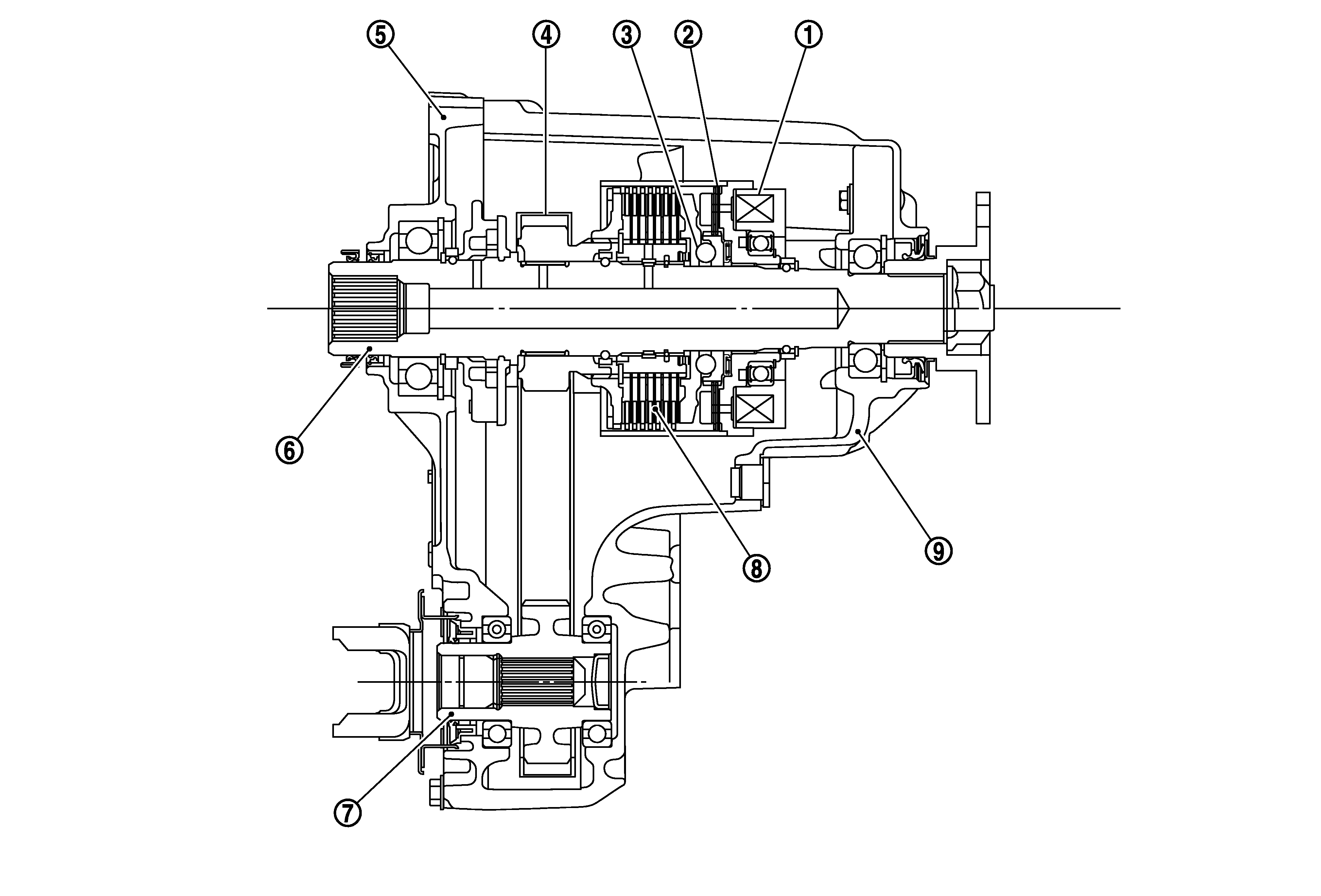

Sectional View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
GNSJSDIA0803Z-803Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Electromagnet

SYMBOL

Control clutch

SYMBOL

Cam

SYMBOL

Drive chain

SYMBOL

Front case

SYMBOL

Main shaft

SYMBOL

Front drive shaft

SYMBOL

Main clutch

SYMBOL

Rear case
