Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage cluster lid A fixing pawls. Refer to Removal and Installation .
  2. Disconnect push-button ignition switch connector and NATS antenna amp. connector.

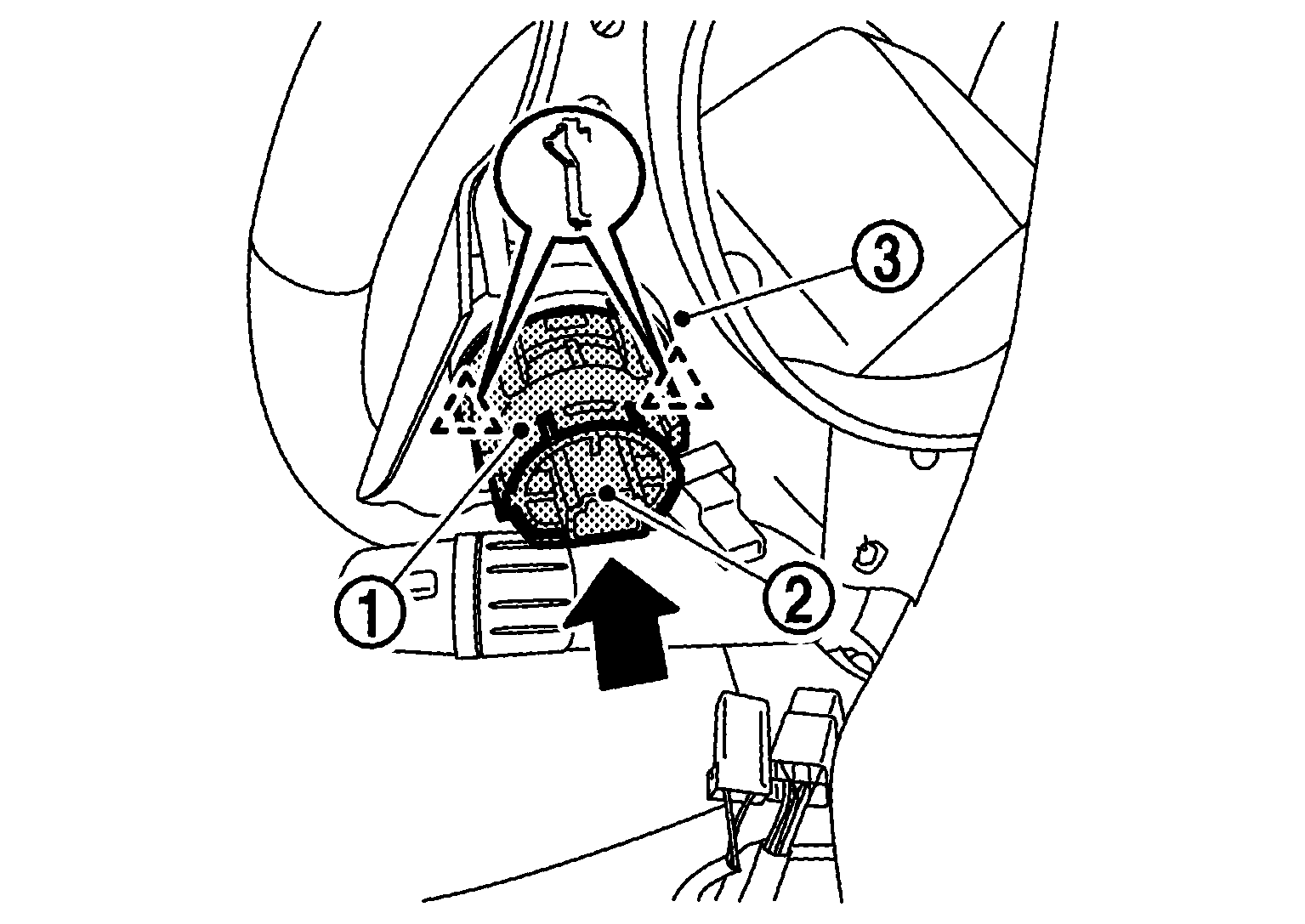

  3. Disengage NATS antenna amp. fixing pawls and then remove NATS antenna amp. SYMBOL and push-button ignition switch SYMBOL as a set from cluster lid A SYMBOL .
    GNSJMMIA1461Z-461Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

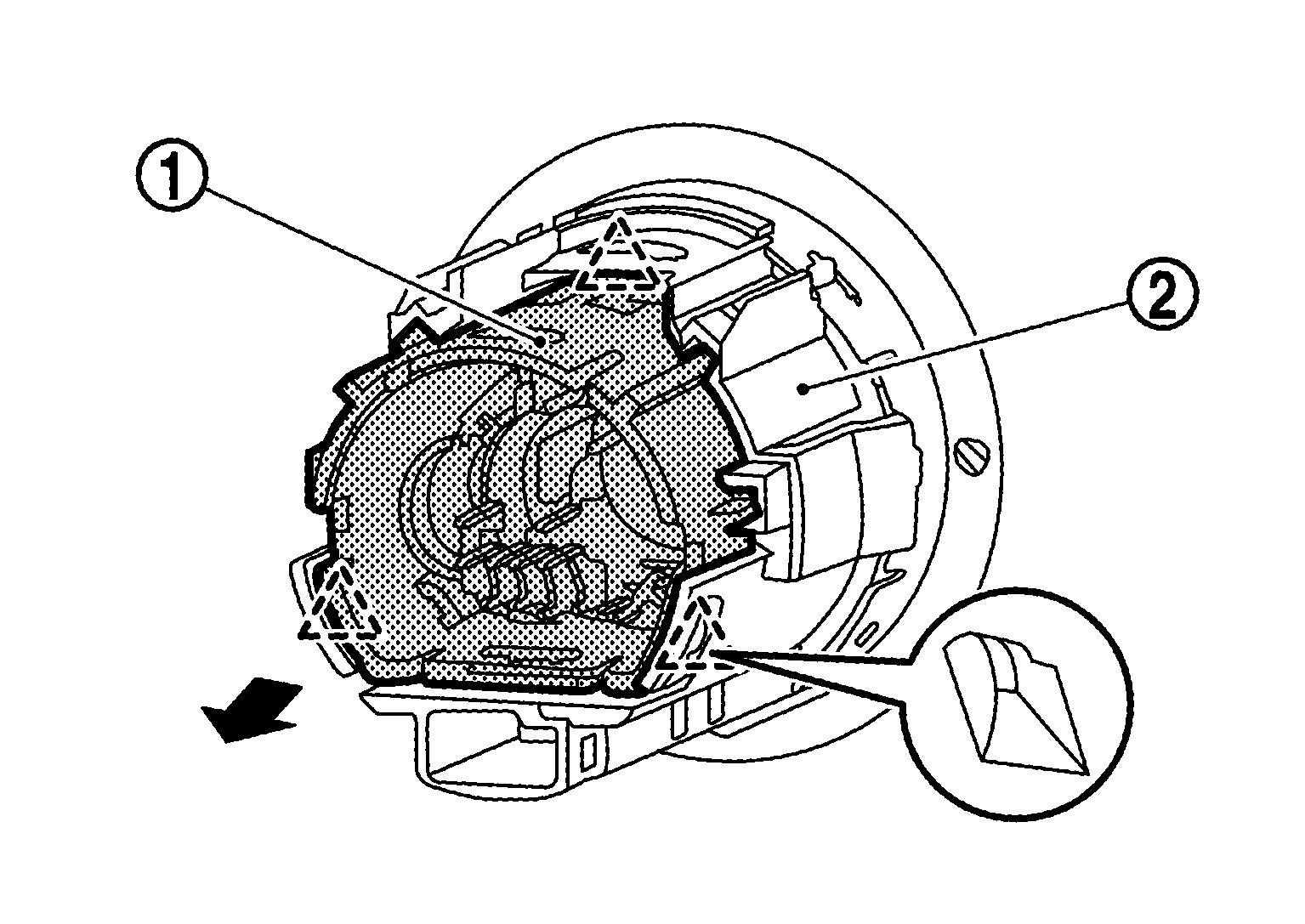

  4. Disengage push-button ignition switch fixing pawl and then remove push-button ignition switch SYMBOL from NATS antenna amp. SYMBOL .
    GNSJMMIA1435Z-435Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
