Work Procedure (Target Mark Sample)

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

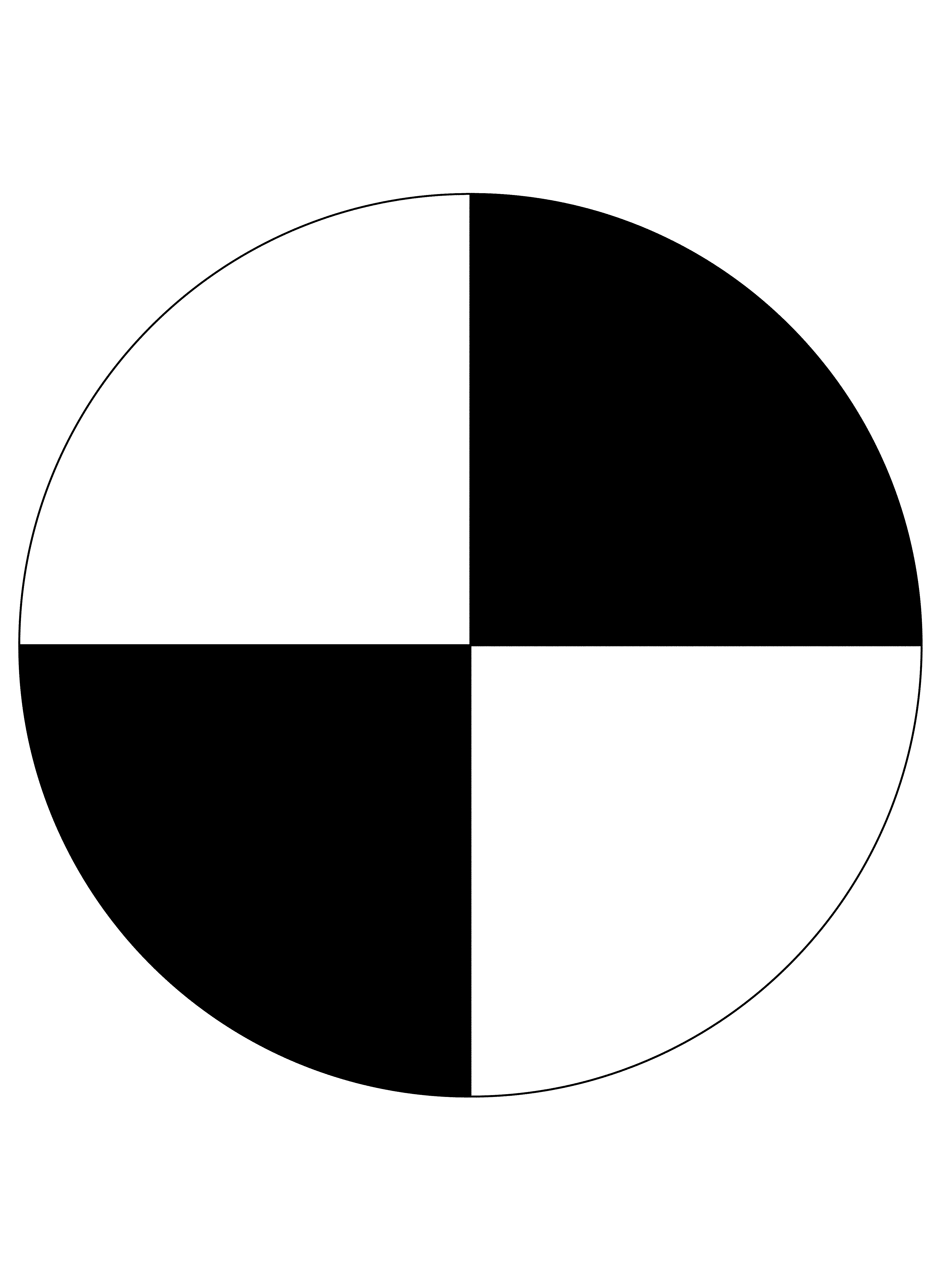

NOTE: Print this illustration so that the diameter of the circle is 200 mm (7.87 in).
G04078567Courtesy of NISSAN NORTH AMERICA, INC.
