Physical Values
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
Terminal No. (Wire color) |
Description |
Condition |
Standard value |
Reference value |
||||||||
|
+ |
- |
Signal name |
Input/Output |
|||||||||
|
1 (G) |
5 (B) |
Ignition power supply |
Input |
Ignition switch ON |
-- |
10 - 16 V |
Battery voltage |
|||||
|
3 (L) |
-- |
ITS communication-H |
-- |
-- |
-- |
-- |
||||||
|
5 (B) |
Ground |
Ground |
-- |
Ignition switch ON |
-- |
0 - 0.1 V |
Approx. 0 V |
|||||
|
8 (R) |
16 (G) |
Warning buzzer signal |
Output |
Ignition switch ON |
Driver assistance buzzer OFF |
0 - 0.1 V |
Approx. 0 V |
|||||
|

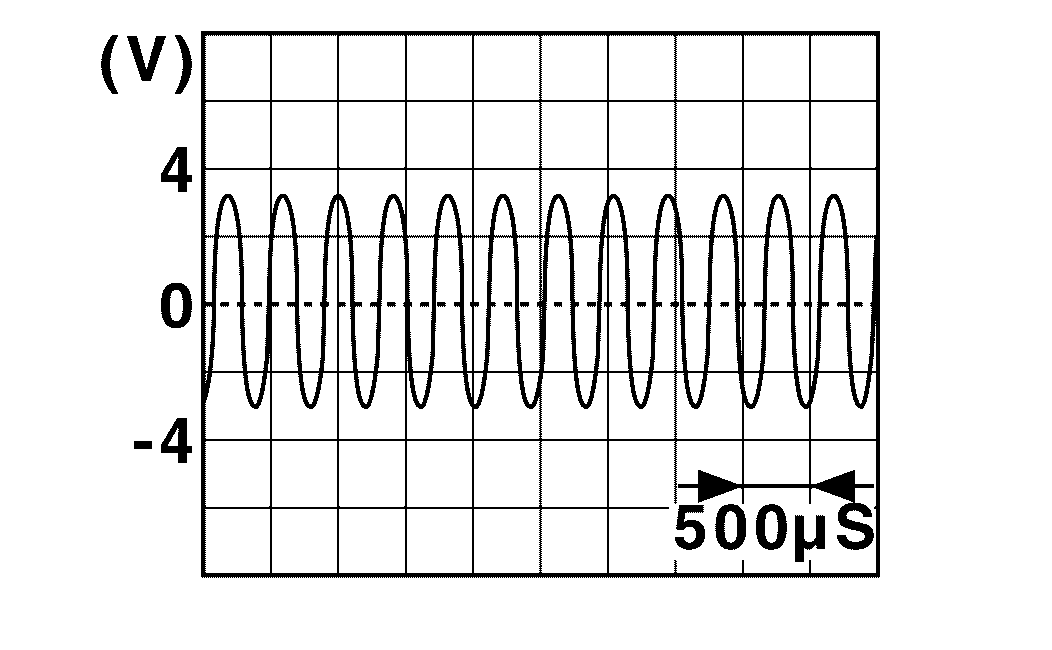

At "BUZZER 1" test of "Active test" |
0 | |||||||||||
|

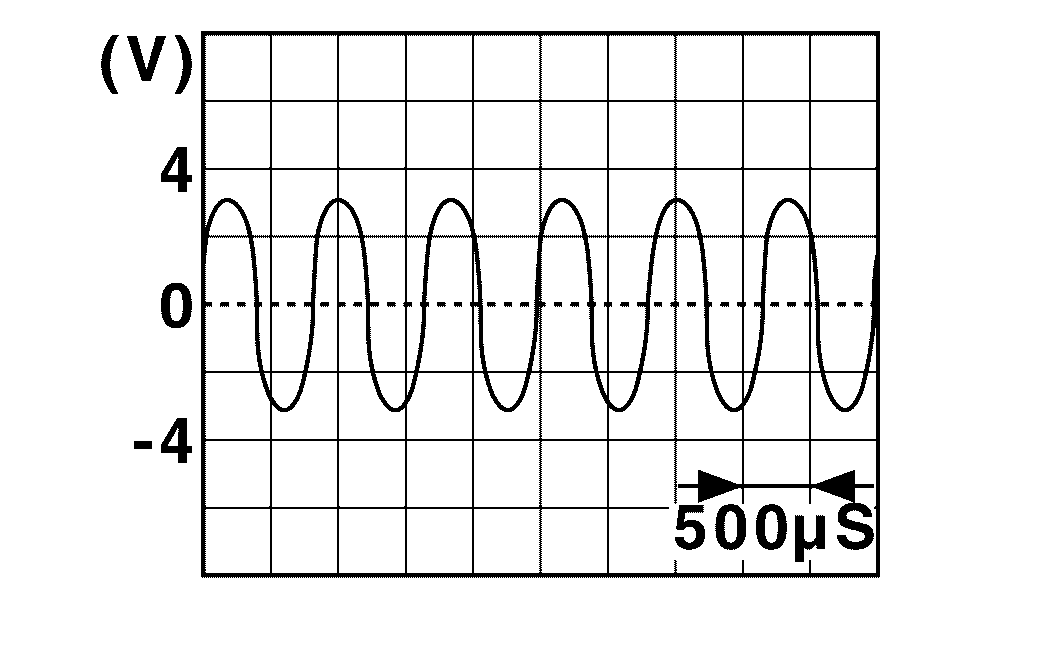

At "BUZZER 2" test of "Active test" |
||||||||||||
|

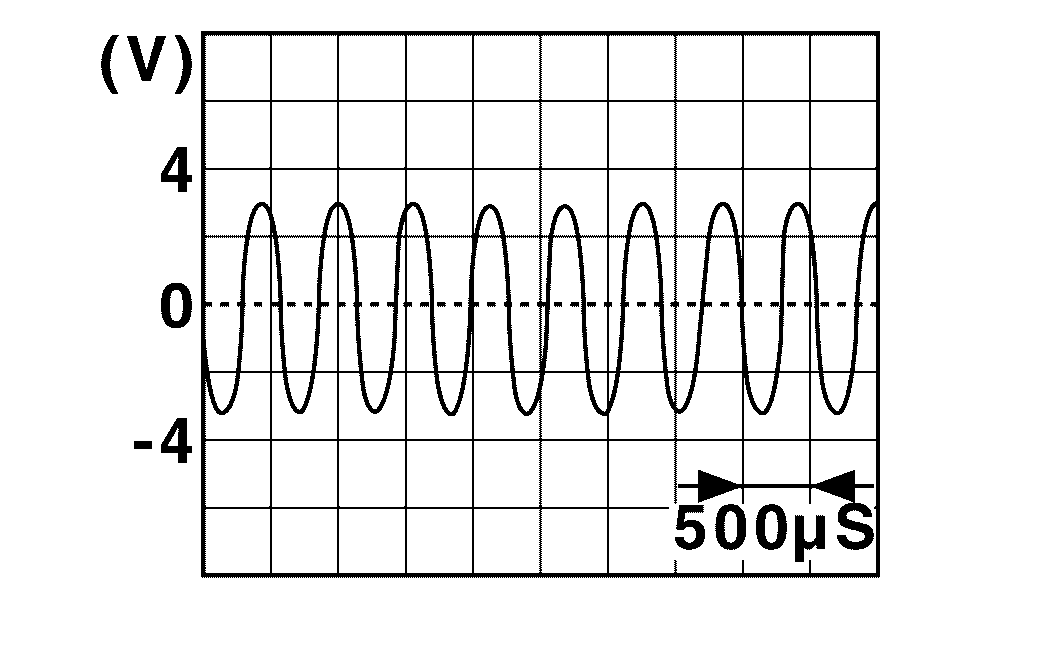

At "BUZZER 3" test of "Active test" |
||||||||||||
|
11 (Y) |
-- |
ITS communication-L |
-- |
-- |
-- |
-- |
-- |
|||||
|
13 (B) |
Ground |
Ground |
-- |
Ignition switch ON |
-- |
0 - 0.1 V |
Approx. 0 V |
|||||
|
16 (G) |
5 (B) |
Warning buzzer signal ground |
Output |
Ignition switch ON |
-- |
0 - 0.1 V |
Approx. 0 V |
|||||
