Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

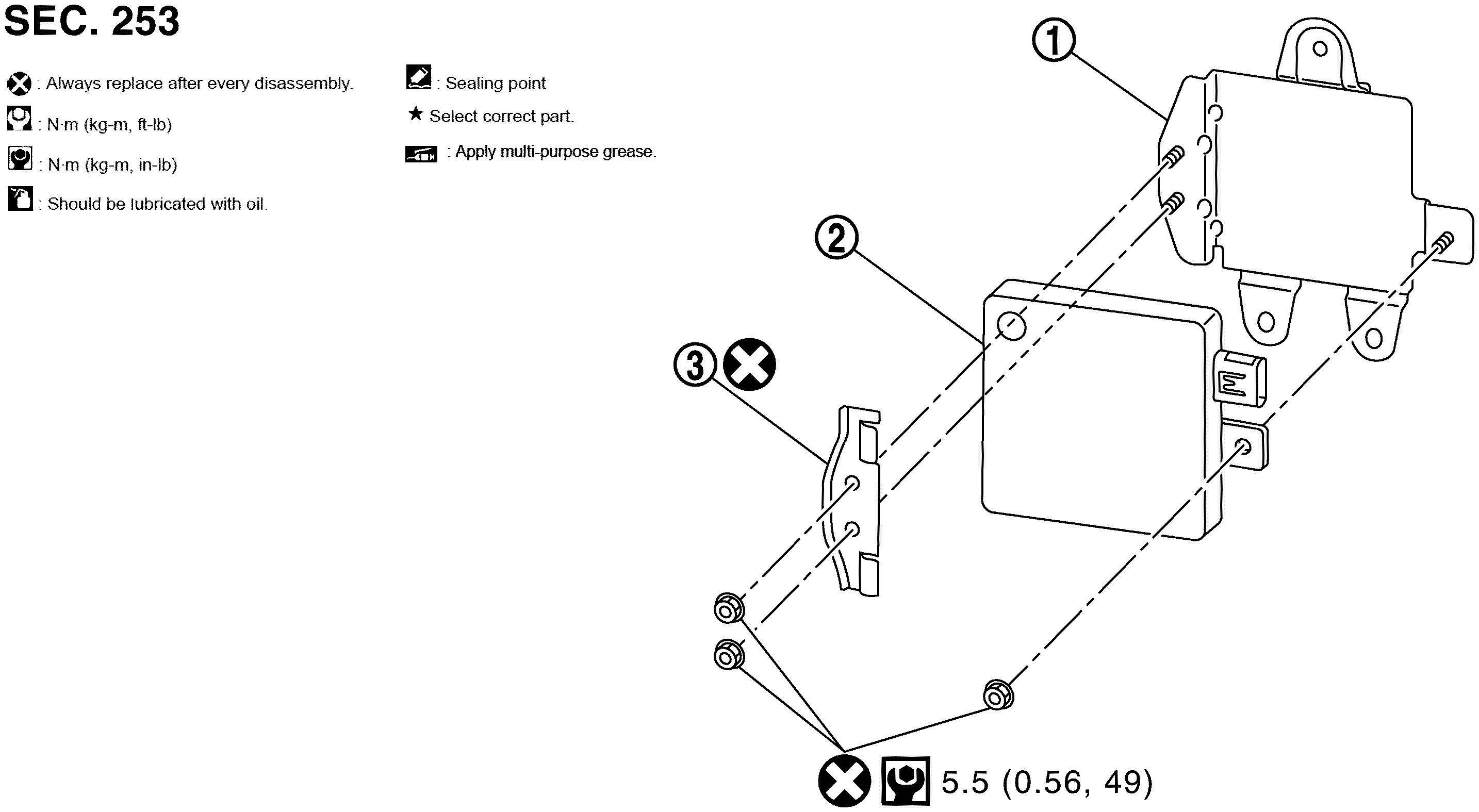

G09170503Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Bracket

SYMBOL

Side radar

SYMBOL

Bracket

SYMBOL

: N.m (kg-m, in-lb)
