System Display

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

PFCW/LDW/BSW

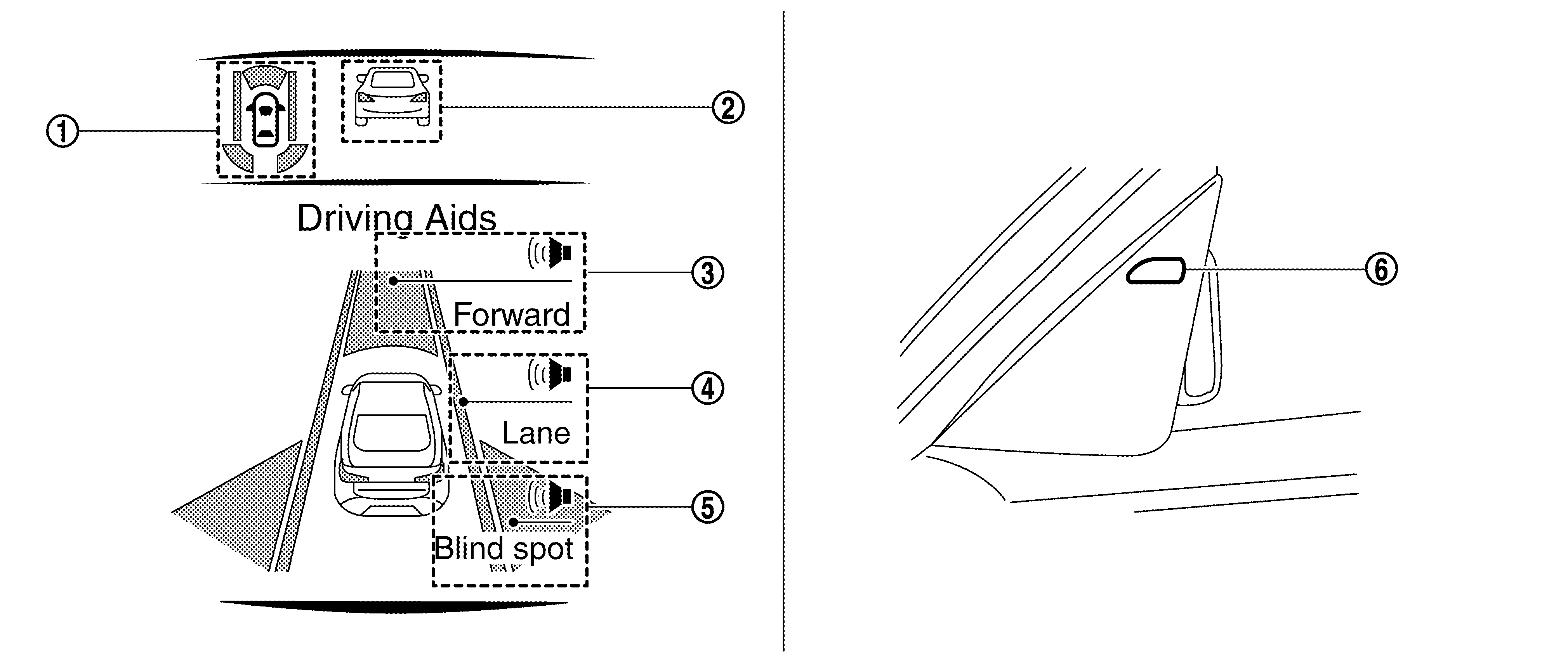

GNSJSOIA0910Z-910Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

Warning systems indicator

Indicates that PFCW/FEB/LDW/BSW systems are ON

SYMBOL

Vehicle ahead detection indicator

Indicates whether it detects a vehicle ahead

NOTE: The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied

SYMBOL

Warning systems indicator "Forward" position

(Speaker icon)

Indicates that PFCW/FEB system is ON

SYMBOL

Warning systems indicator "Lane" position

(Speaker icon)

Indicates that LDW system is ON

SYMBOL

Warning systems indicator "Blind spot" position

(Speaker icon)

Indicates that BSW system is ON

SYMBOL

Blind Spot Warning/Blind Spot Intervention indicator LH/RH

  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when BSW system is warning to driver
