Function Description

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Lane Departure Prevention (LDP) system provides a lane departure warning and steering control assistance when the vehicle is driven at speeds of approximately 70 km/h (45 MPH) or more.
When the vehicle approaches either the left or the right side of the traveling lane, a warning sounds and the LDP system display on the combination meter blinks to alert the driver. Then, the LDP system automatically applies the steering to help assist the driver to return the vehicle to the center of the traveling lane.
Warning and steering control are not performed during turn signal operation (lane change side).
The warning and assist functions stop when the vehicle returns to a position inside of the lane marker.

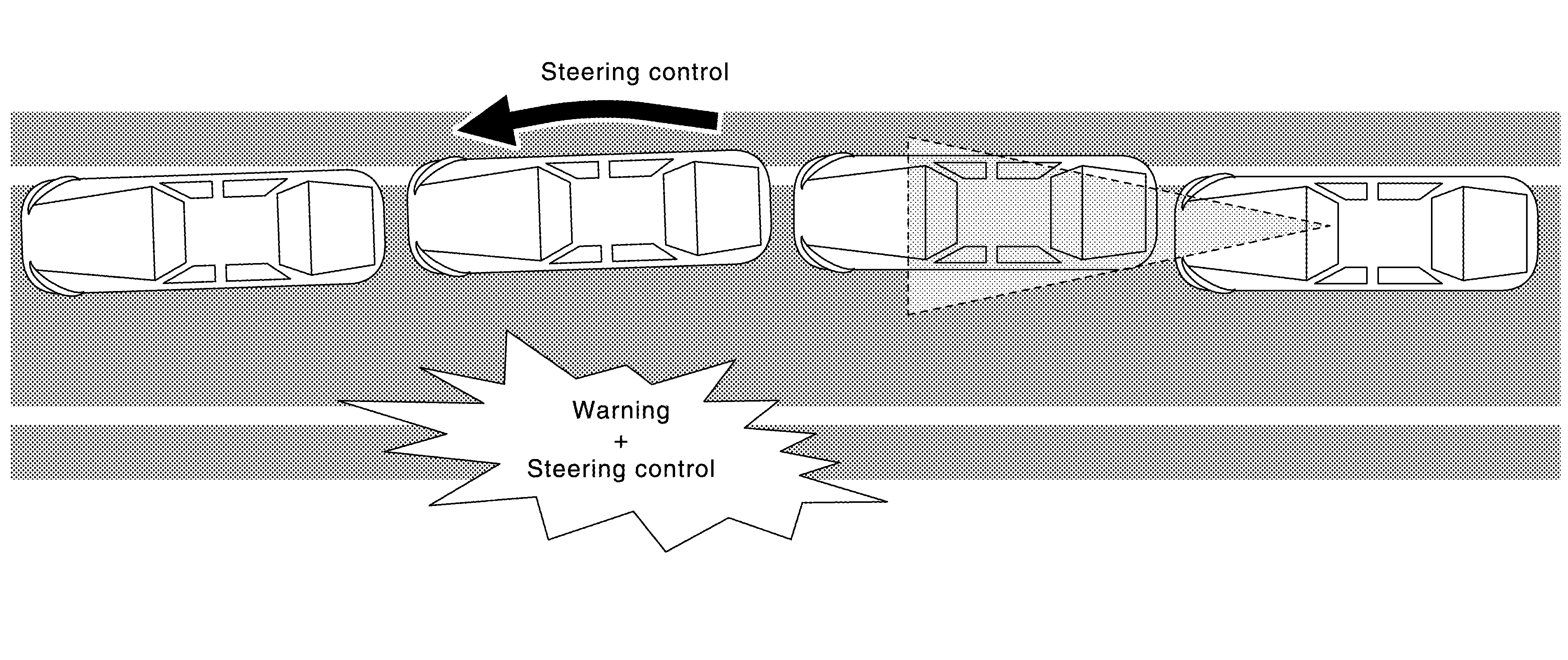

EXAMPLE

Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle approaches the right lane marker, the driver is alerted by the buzzer and the blinking of LDP system display. Simultaneously, the steering is controlled to return the vehicle to the lane.

NOTE: For details of LDP system indication on the combination meter, refer to Menu Displayed by Pressing Each Switch .
