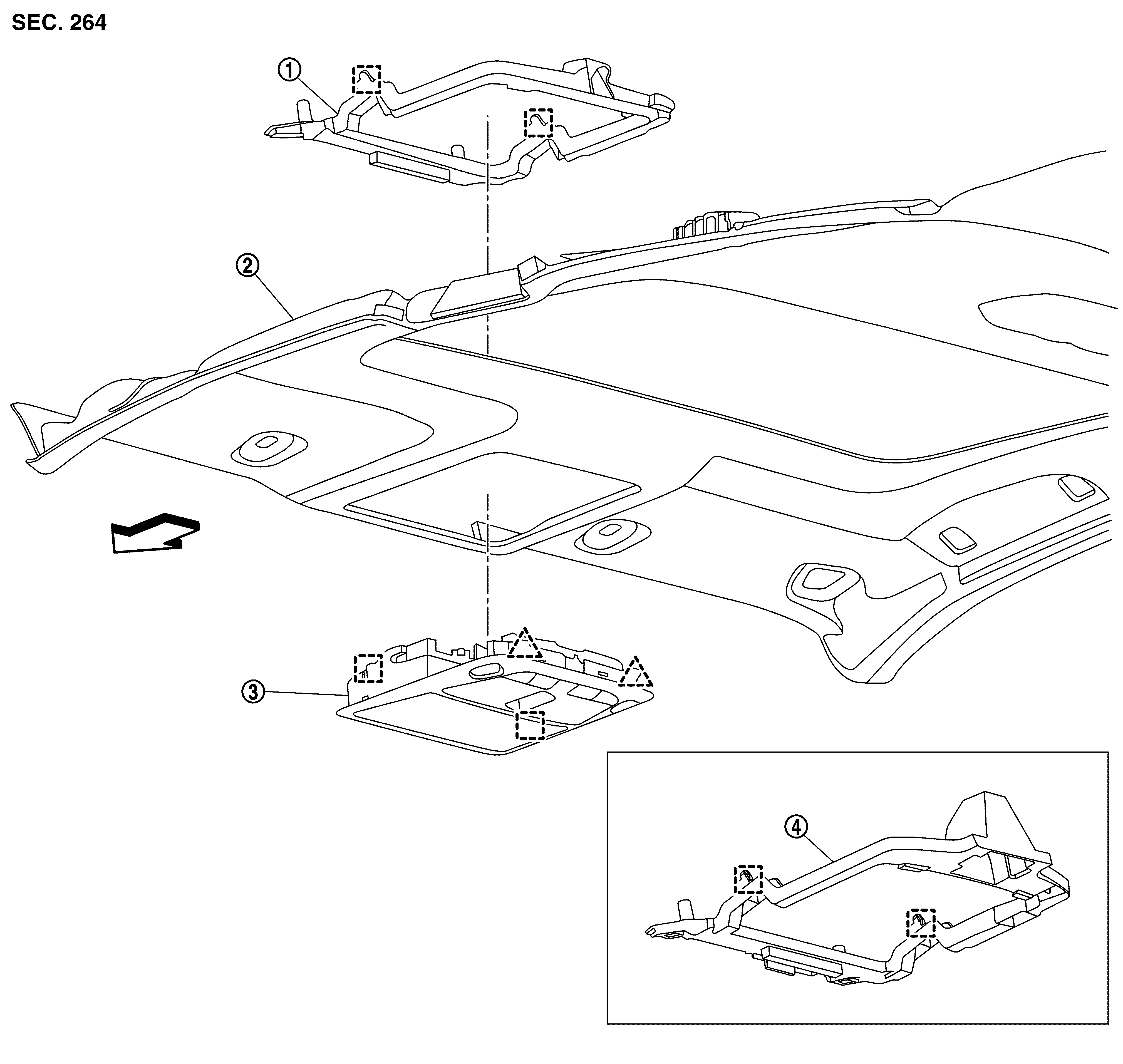

Exploded View
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|
Map lamp bracket *1
|
|
Headlining assembly
|
|
Map lamp assembly
|
|
|
Map lamp bracket *2
|
|
|
: Pawl
|
|
|
: Metal clip
|
|
|
: Vehicle front
|
*1
: With sunroof
*2
: Without sunroof
