Circuit Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

With VR engine

GNSILL0118676-676Courtesy of NISSAN NORTH AMERICA, INC.

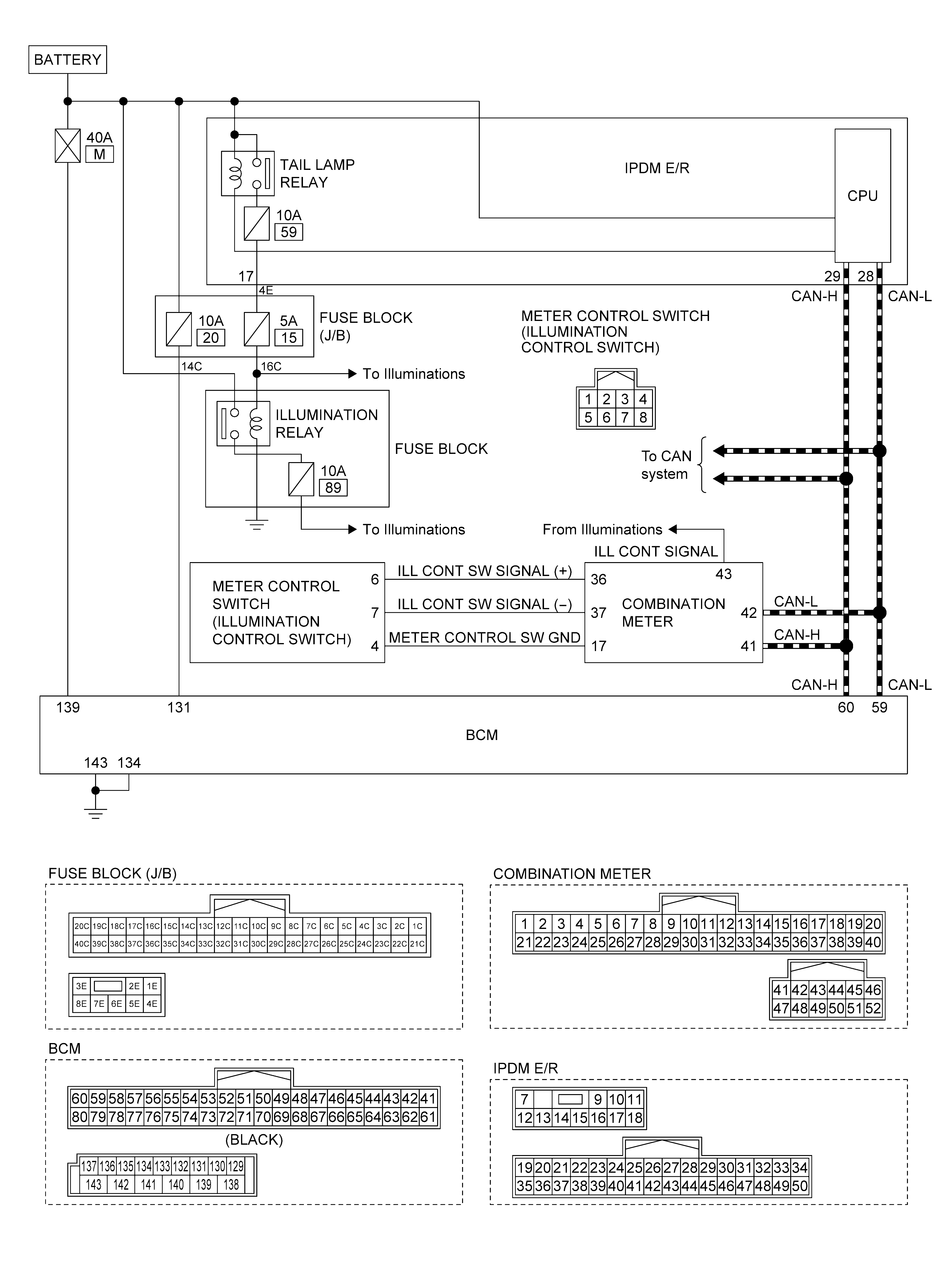

With 2.0L turbo gasoline engine

GNSILL0118677-677Courtesy of NISSAN NORTH AMERICA, INC.
