Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing ADAS control unit, perform "Read/Write Configuration" to save or print current vehicle specification (With ICC models). For details, refer to Work Procedure .
  1. Remove the rear parcel shelf finisher. Refer to Removal and Installation .
  2. Remove the trunk finisher front upper Refer to Removal and Installation .
  3. Disconnect ADAS control unit connector.

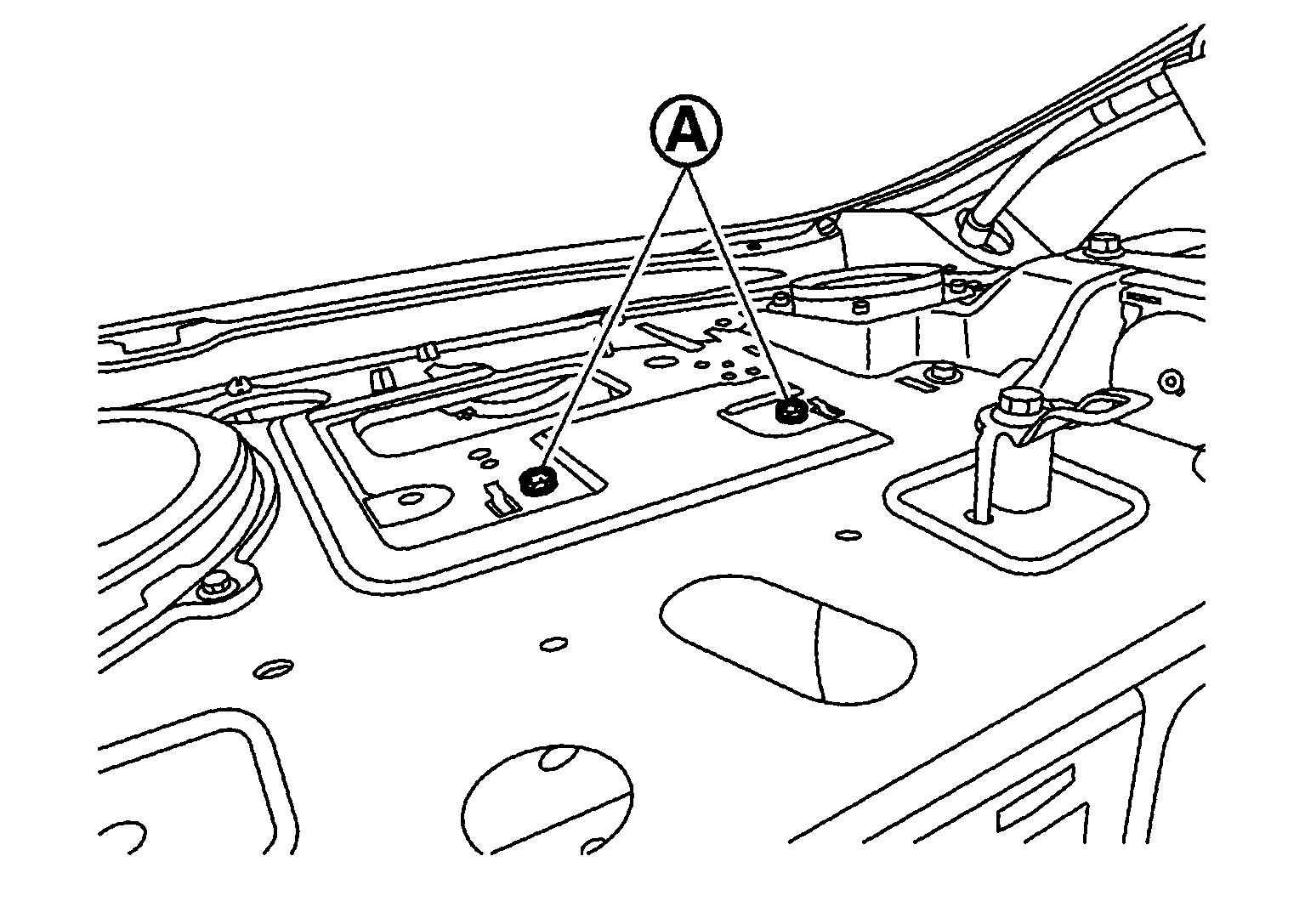

  4. Remove mounting bolts from ADAS control unit.
    GNSJSOIA0882Z-882Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove ADAS control unit.
