Lane Camera Unit Handling

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

To keep the proper operation of Active Lane Control and prevent a system malfunction, be sure to observe the following:

Always keep the windshield clean.
Do not attach a sticker (including transparent material) or install an accessory near the lane camera unit.
Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the lane camera unit capability of detecting the lane markers.
Do not strike or damage the areas around the lane camera unit.
Do not touch the camera lens.
Do not remove the screw located on the lane camera unit.

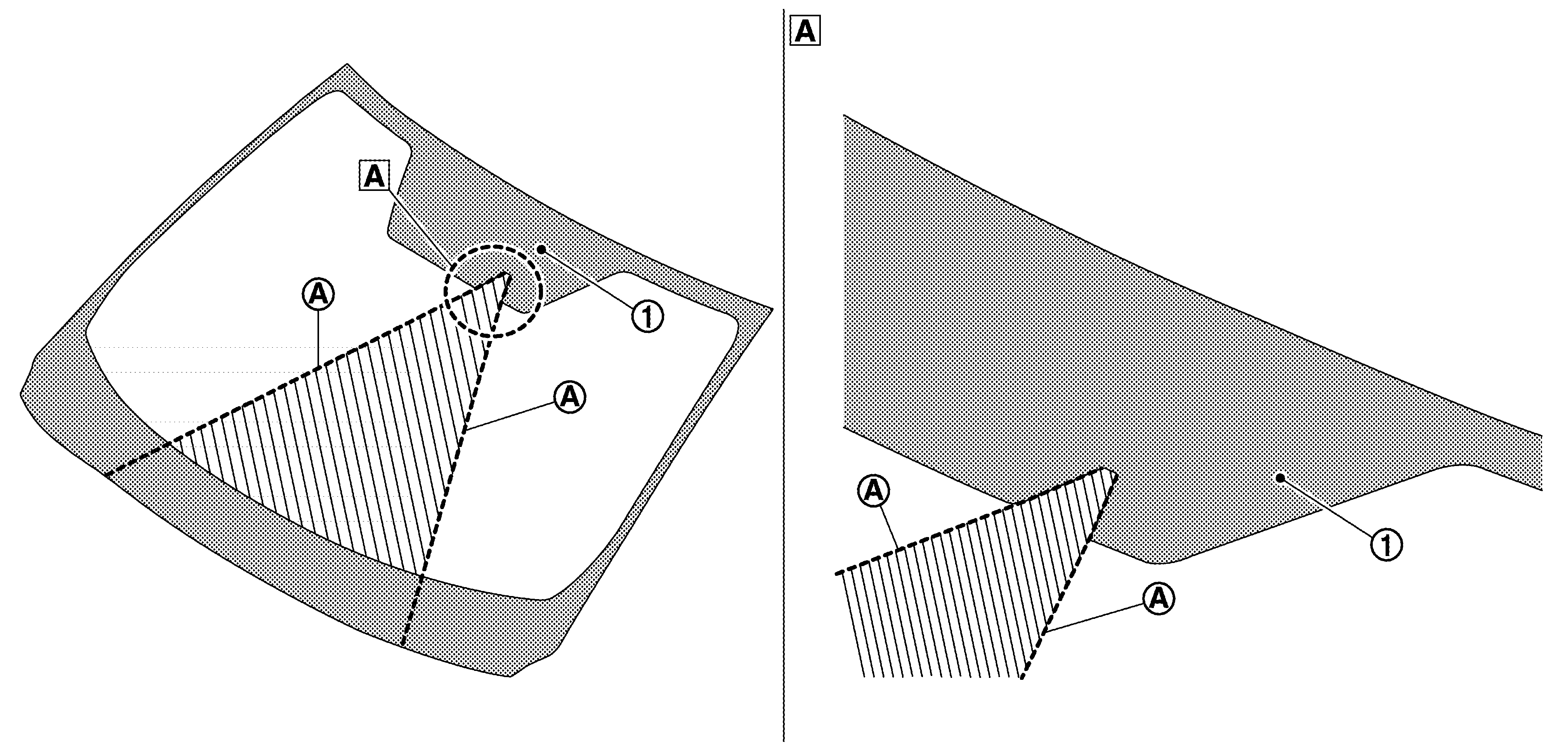

NOTE: For operating the system normally, replace the windshield glass in the following case.

When there is a scratch on the area printed in black of windshield upper portion.
When there is a scratch on the detecting range of lane camera unit. (the area within the lines extended from the notch of the area printed in black)

Courtesy of NISSAN NORTH AMERICA, INC.

	Area printed in black
	Line extended from the notch of the area printed in black
	Detail
	The detecting range of lane camera unit
