Exploded View: Disassembly

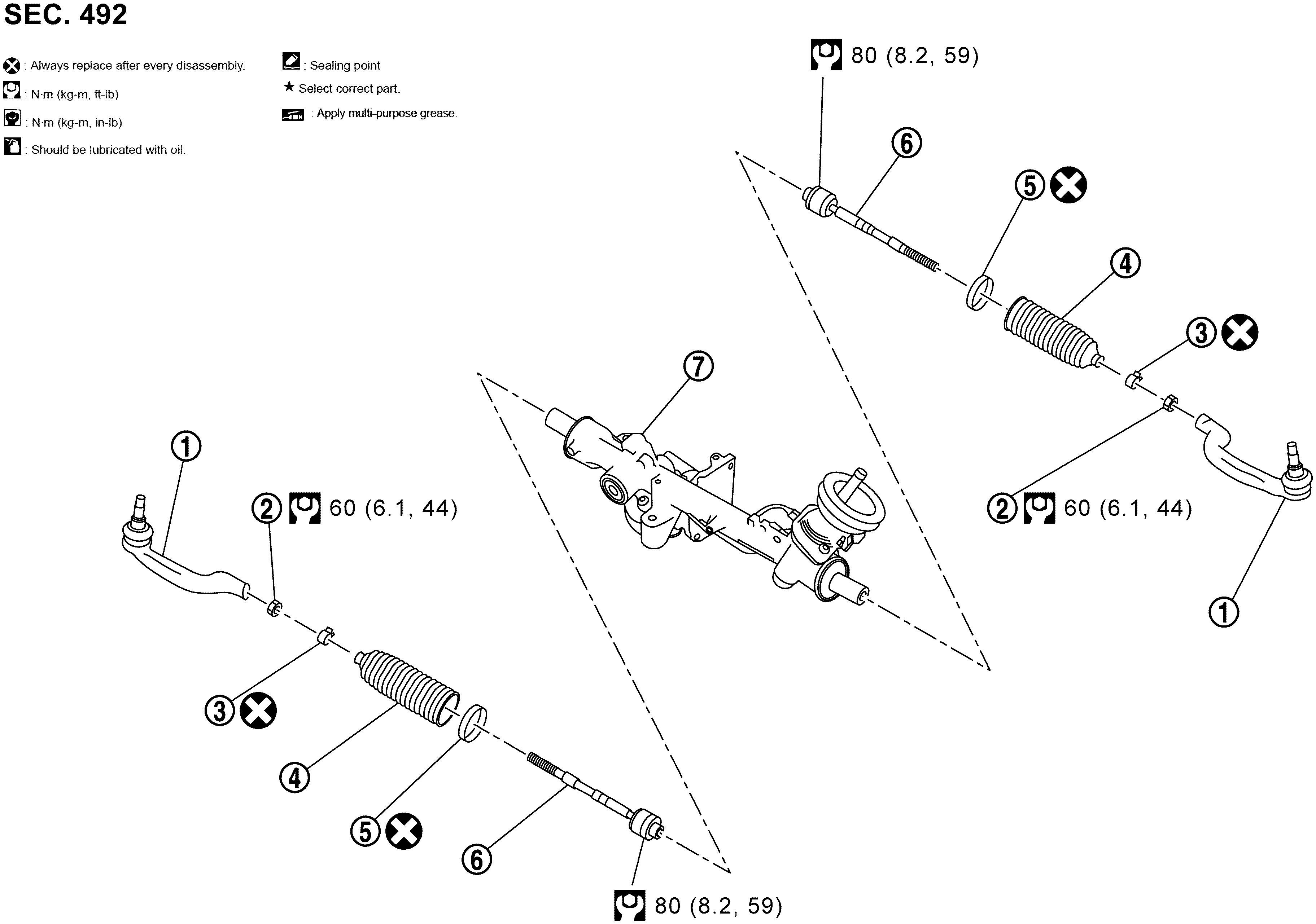

Fig 1: Outer Socket Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Outer socket	Outer socket lock nut	Boot clamp (small diameter)
	Boot	Boot clamp (large diameter)	Inner socket
	Gear housing assembly
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
