Exploded View: Removal

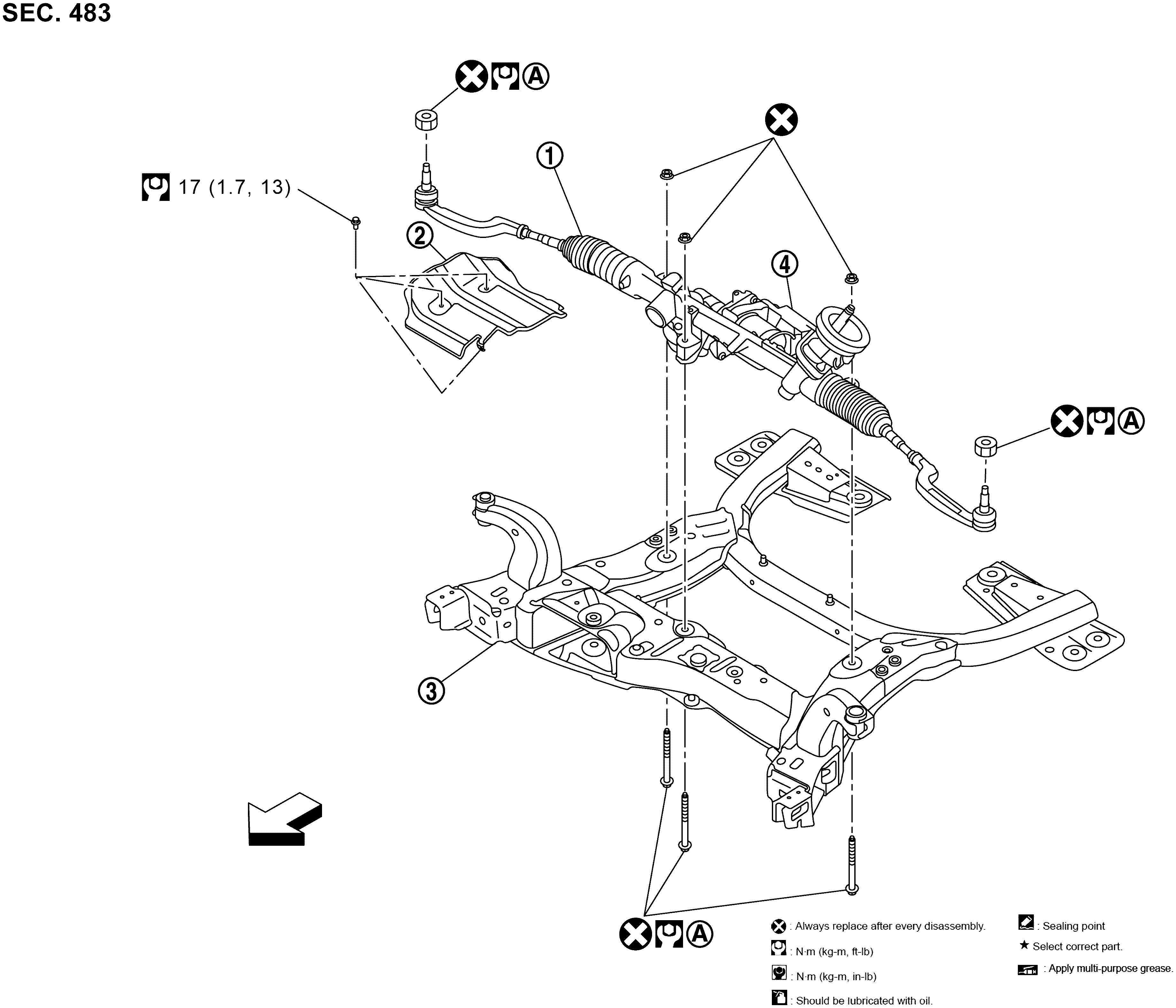

Fig 1: Steering Gear And Linkage Replacement Components With Torque Specifications
GNSJSGIA1931GB-931Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering gear assembly

SYMBOL

Heat insulator

SYMBOL

Front suspension member

SYMBOL

EPS control unit

SYMBOL : Tightening must be done following the installation procedure. Refer to Removal and Installation .

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
