Exploded View

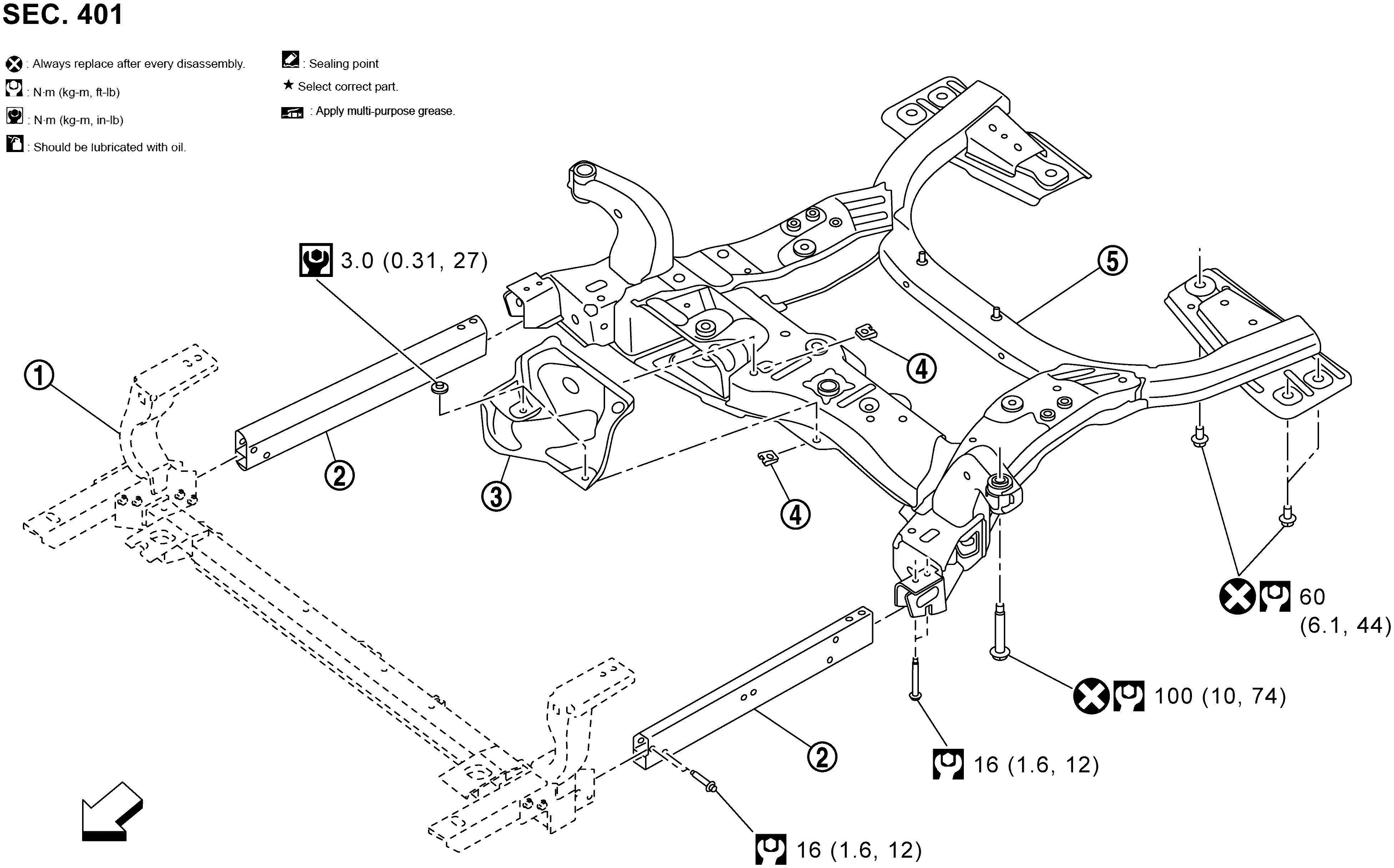

Fig 1: Front Suspension Member Replacement Components With Torque Specifications
GNSILL0166397-397Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Radiator core support lower

SYMBOL

Crossbar

SYMBOL

Heat insulator

SYMBOL

Grommet

SYMBOL

Front suspension member

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)

SYMBOL : N.m (kg-m, in-lb)
