ICC Sensor Initial Vertical Alignment

NOTE: The ICC sensor initial vertical alignment procedure must be performed anytime the ICC sensor is removed and reinstalled.

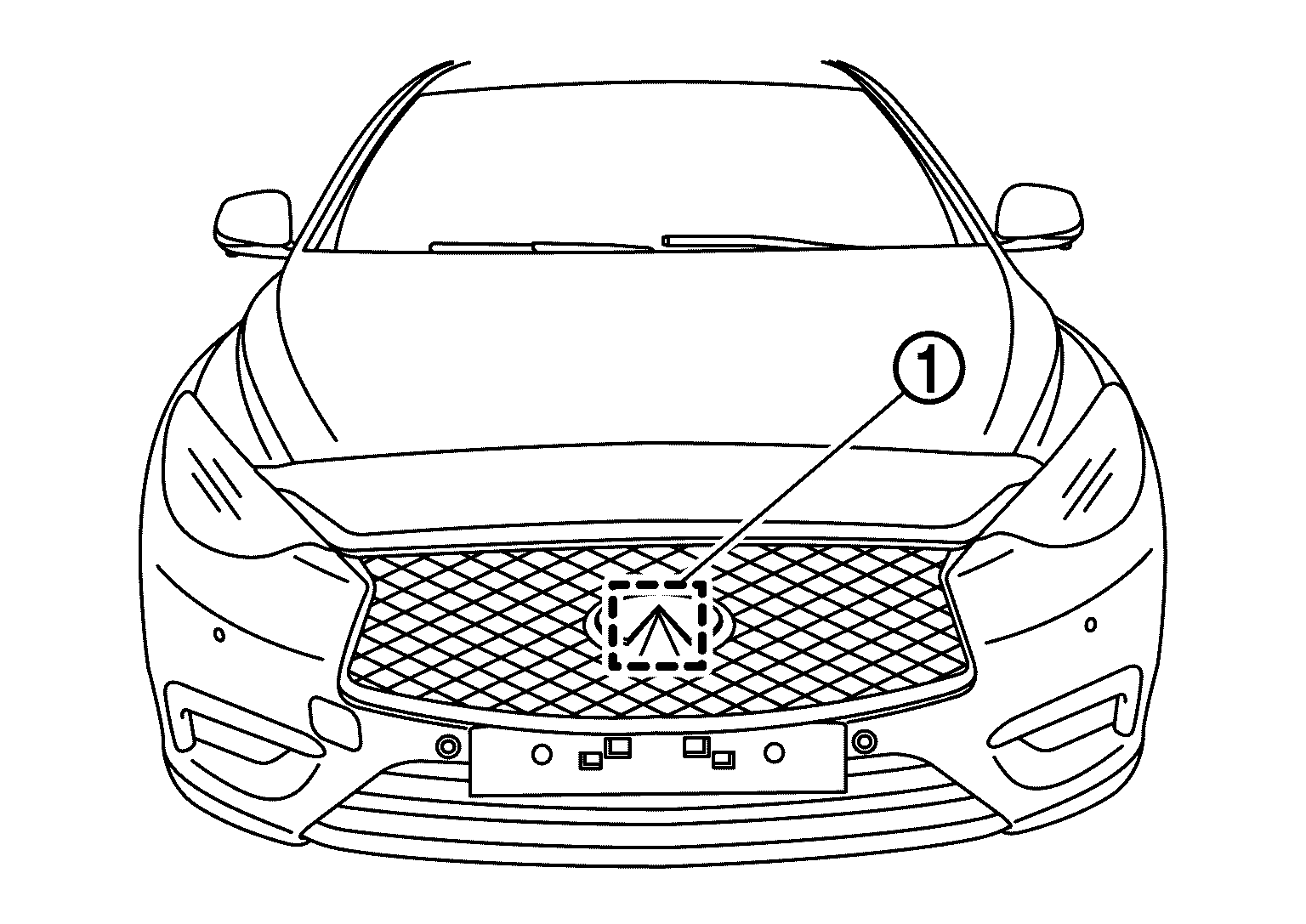

The ICC sensor is located behind the front emblem.

Courtesy of NISSAN NORTH AMERICA, INC.
Using standard glass cleaner and a clean soft towel, remove any dirt from the ICC sensor lens and from the suction cup of the vertical alignment tool.

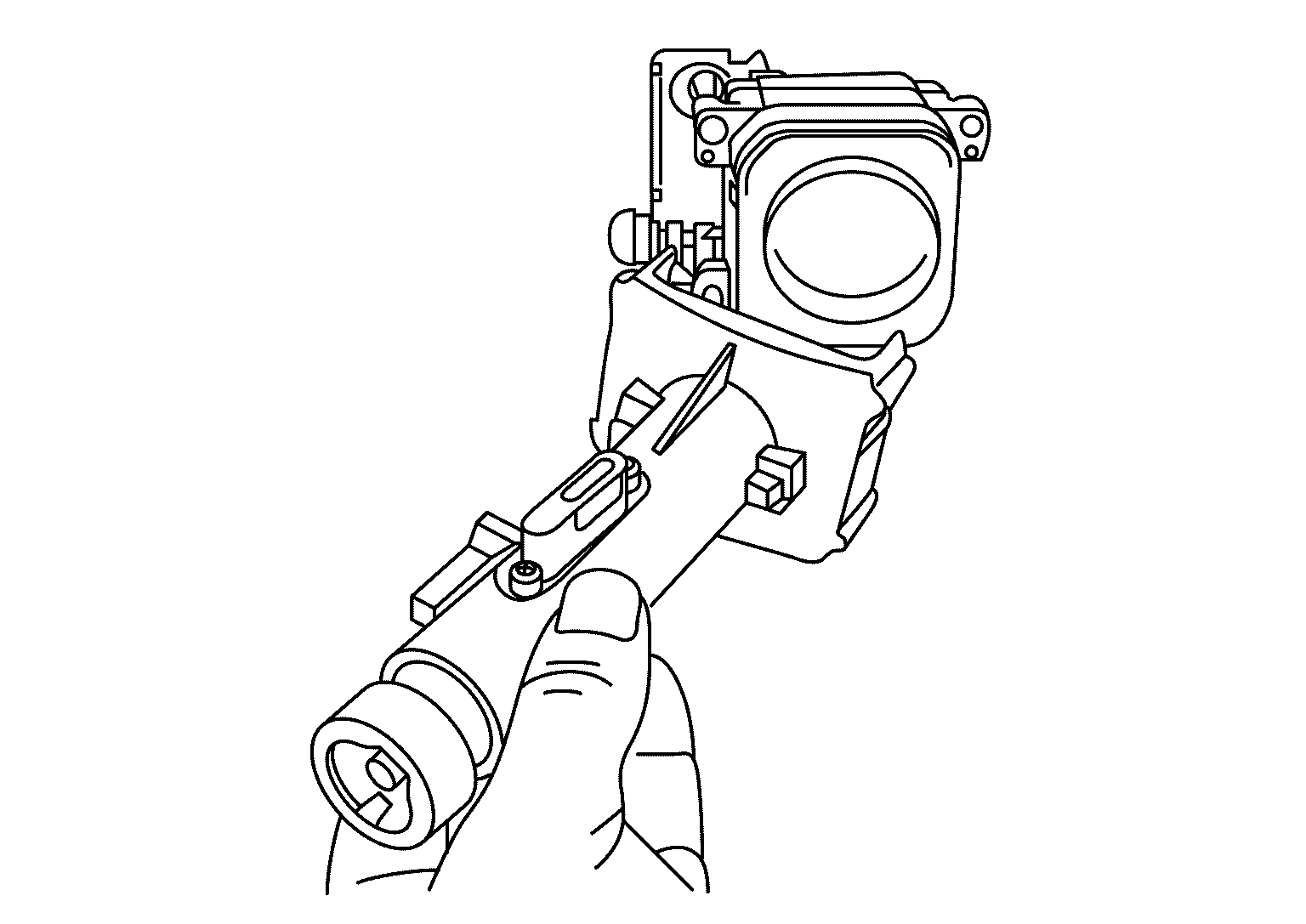

With the level indicator facing upward, carefully slide the vertical alignment tool over the sensor housing until the suction cup rests against the lens of the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

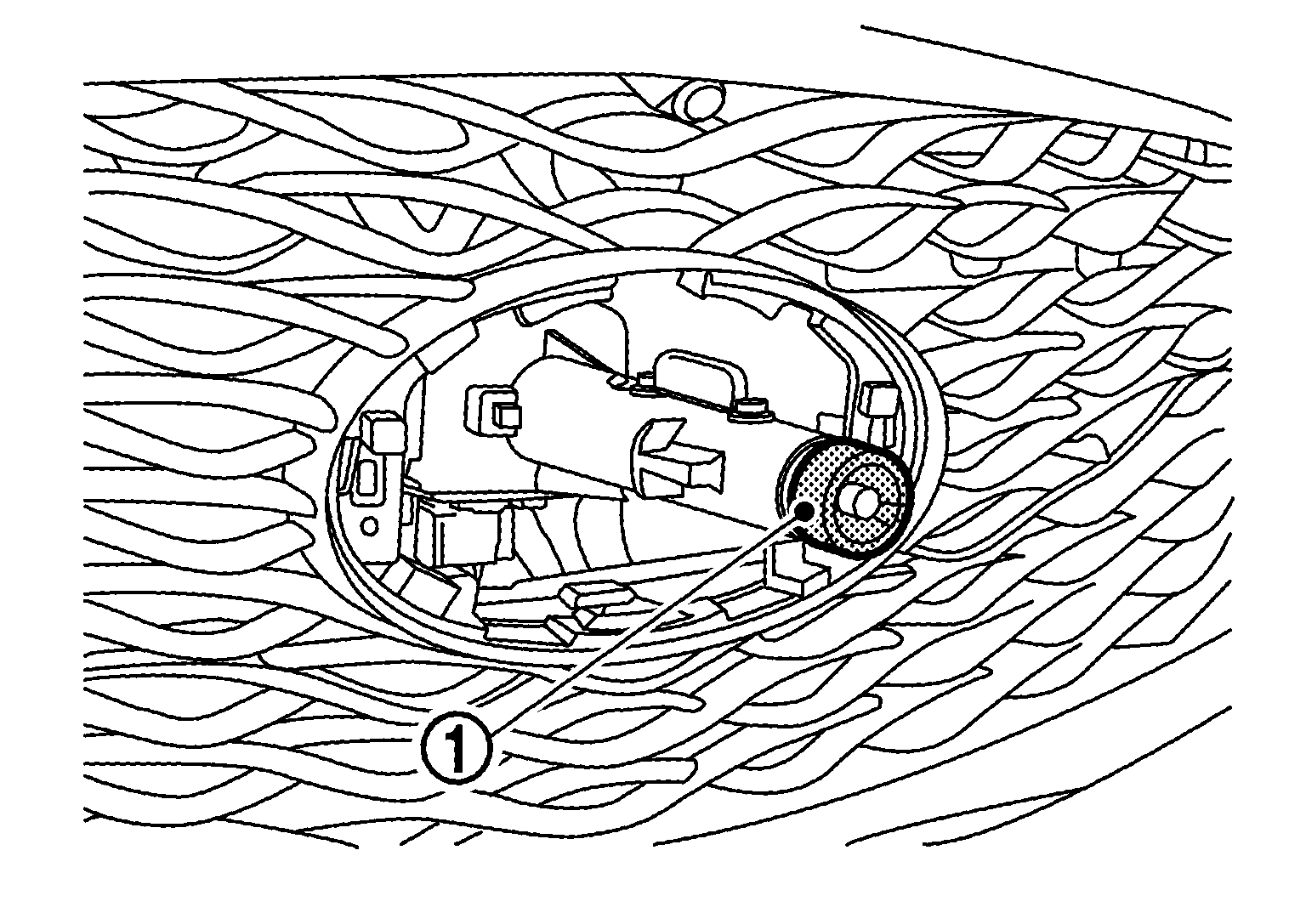

Depress the plunger of the vertical alignment tool to engage the suction cup and attach the tool securely to the lens of the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: It may take several attempts to get the suction cup of the tool to fasten securely to the sensor. If necessary, lightly wet the suction cup with clean water to help improve adhesion.

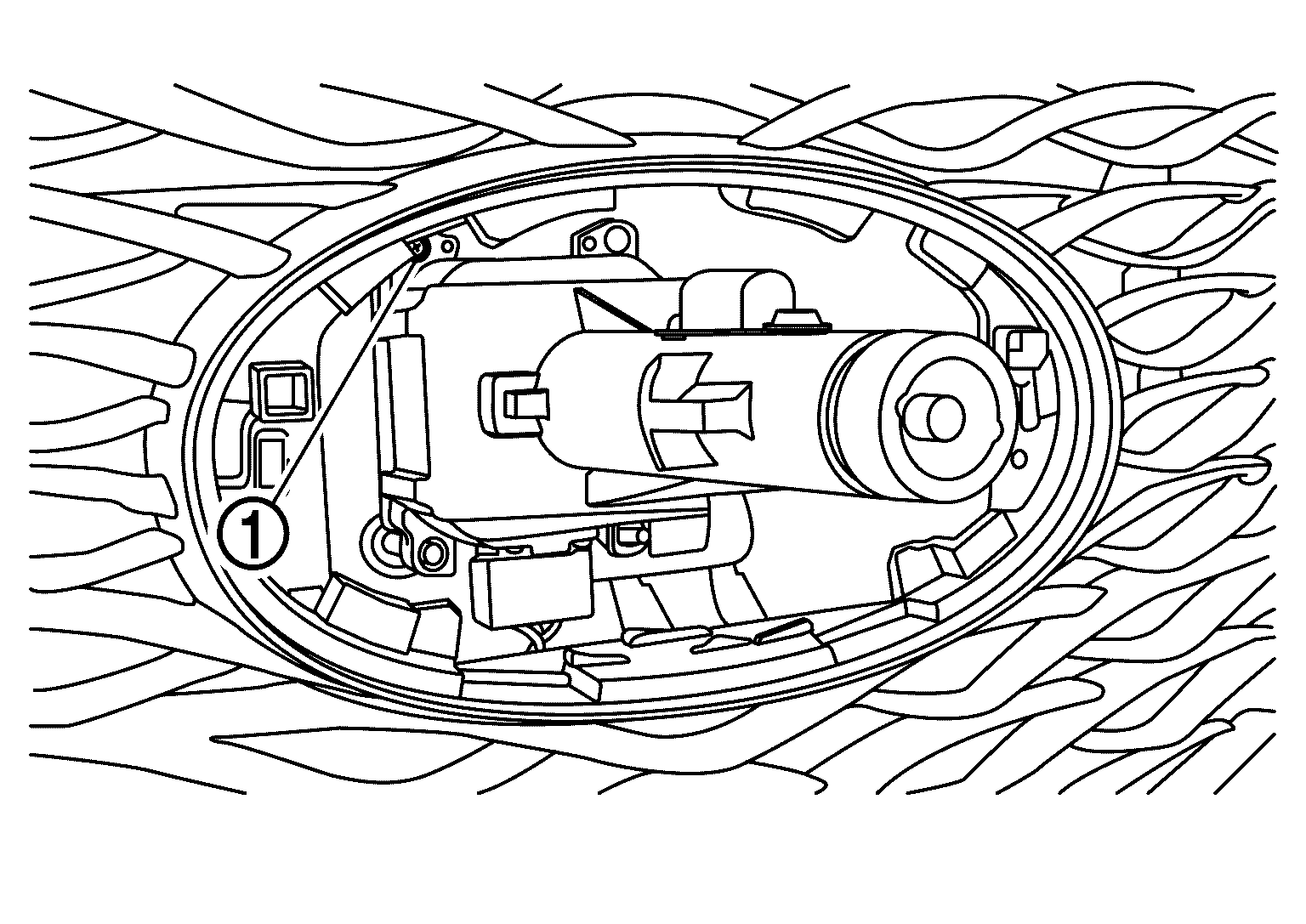

Turn the ICC sensor adjustment screw to level the tool.

Courtesy of NISSAN NORTH AMERICA, INC.

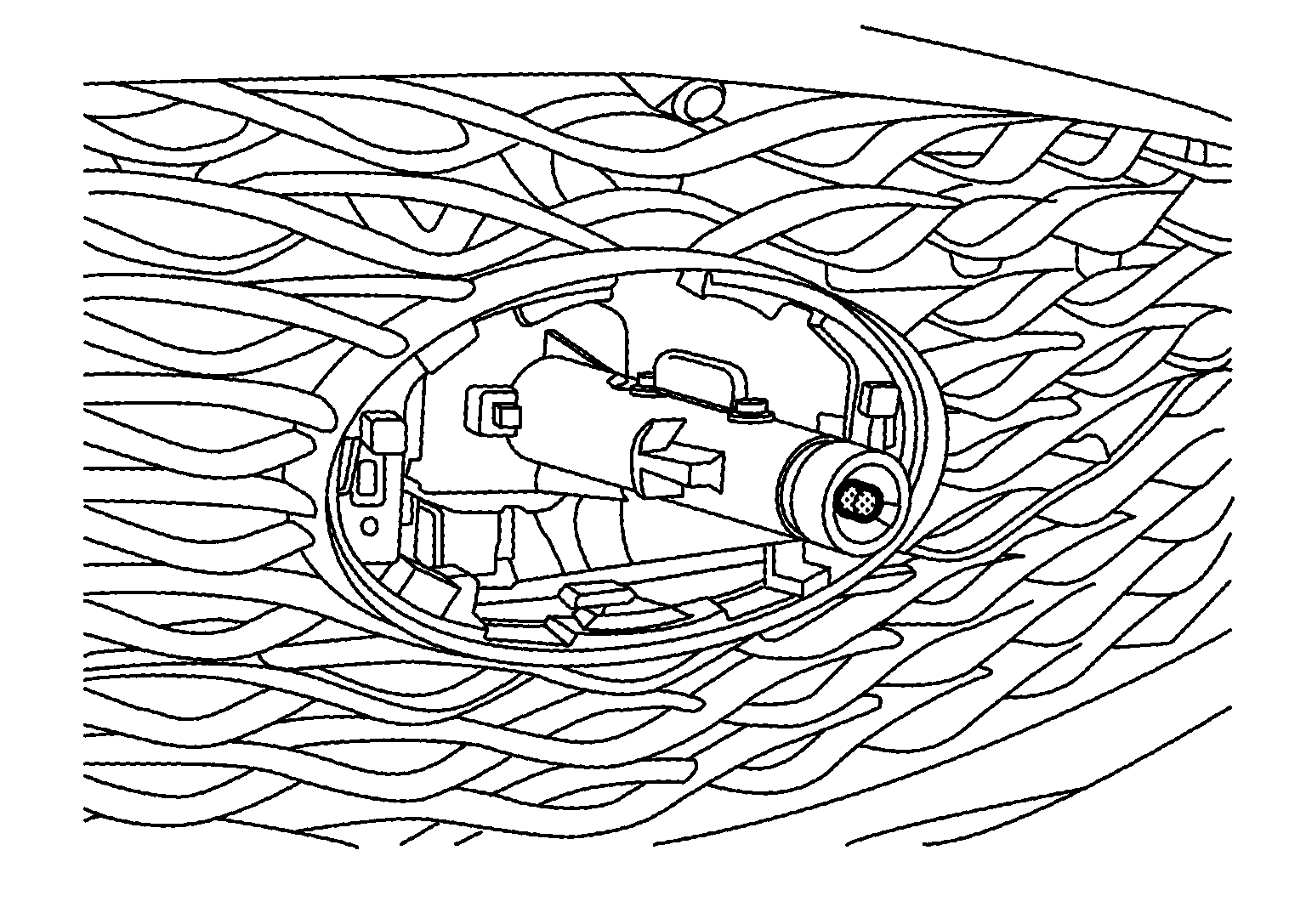

Depress the center release button of the tool to release the suction cup from the sensor lens and remove the tool from the sensor.

Courtesy of NISSAN NORTH AMERICA, INC.
Insure the ICC sensor electrical connector located on the bottom of the sensor is connected.
Reinstall the front emblem.
Perform the ICC sensor alignment procedure. Proceed to Application Notice .
