System Display

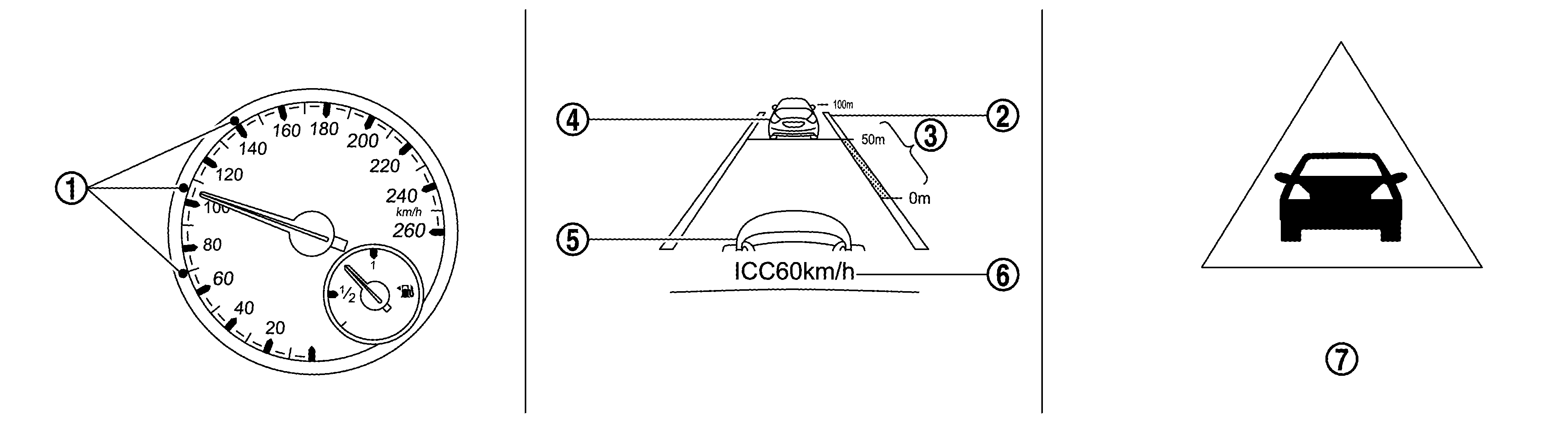

GNSJSOIA2489Z-489Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

Segment indicator

  • No vehicles detected ahead: One or two segments in the set speed range light up
  • Detects a vehicle ahead: Segments between speed of the vehicle ahead and stored light up

SYMBOL

Distance indicator

Current distance to the vehicle ahead

SYMBOL

Specified minimum distance to the vehicle ahead indicator

Indicates the specified minimum distance to the vehicle ahead

SYMBOL

Vehicle ahead indicator

Vehicle ahead, if detected

SYMBOL

Own vehicle indicator

Indicates own vehicle

SYMBOL

ICC stored speed

Indicates ICC stored speed

SYMBOL

FEB warning lamp

FEB warning lamp illuminates if the distance to the vehicle in front is too small
