Fuel Pump Control Module Connector End View (M365)

Connector Types:  M365

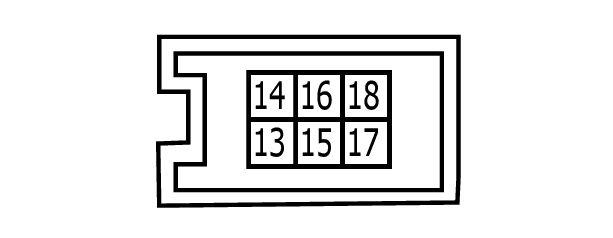

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

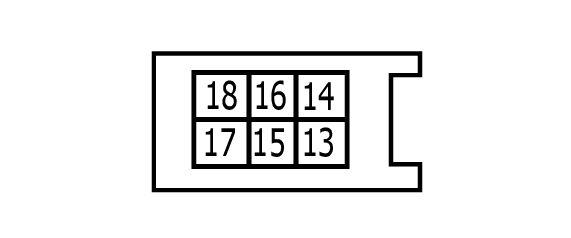

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
13	O/LG	BATTERY POWER SUPPLY
14	BR	FPCM GROUND
15	BR	FUEL PUMP MOTOR GROUND
16	B/W	FUEL PUMP MOTOR U
17	V	FUEL PUMP MOTOR W
18	W	FUEL PUMP MOTOR V
