Fuel Pump Control Module Connector End View (M456)

Connector Types:  HIRSCHMANN_772-717-501

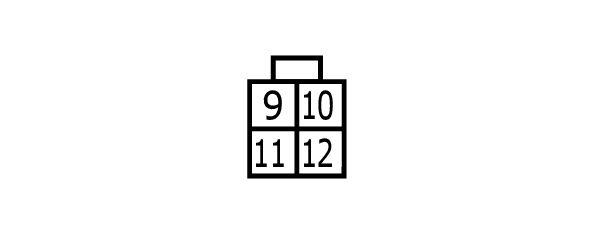

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

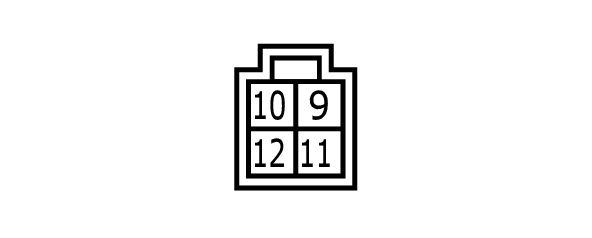

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
9	BR	GROUND
10	O/LG	POWER SUPPLY (BATTERY)
11	BR/O	FUEL PUMP GROUND
12	O/L	FUEL PUMP CONTROL SIGNAL
