Overhead Control Panel Control Unit Connector End View (M172)

Connector Types:  MB_A0025406781

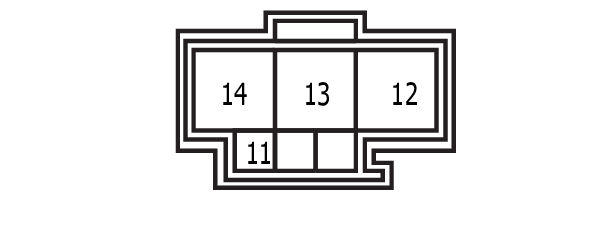

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

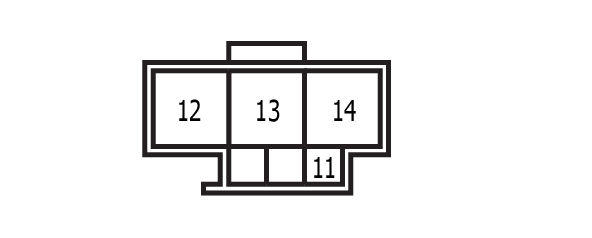

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
11	O	LIN (ROOF)
12	B	GND
13	P	BATTERY POWER SUPPLY
14	O	BATTERY POWER SUPPLY
