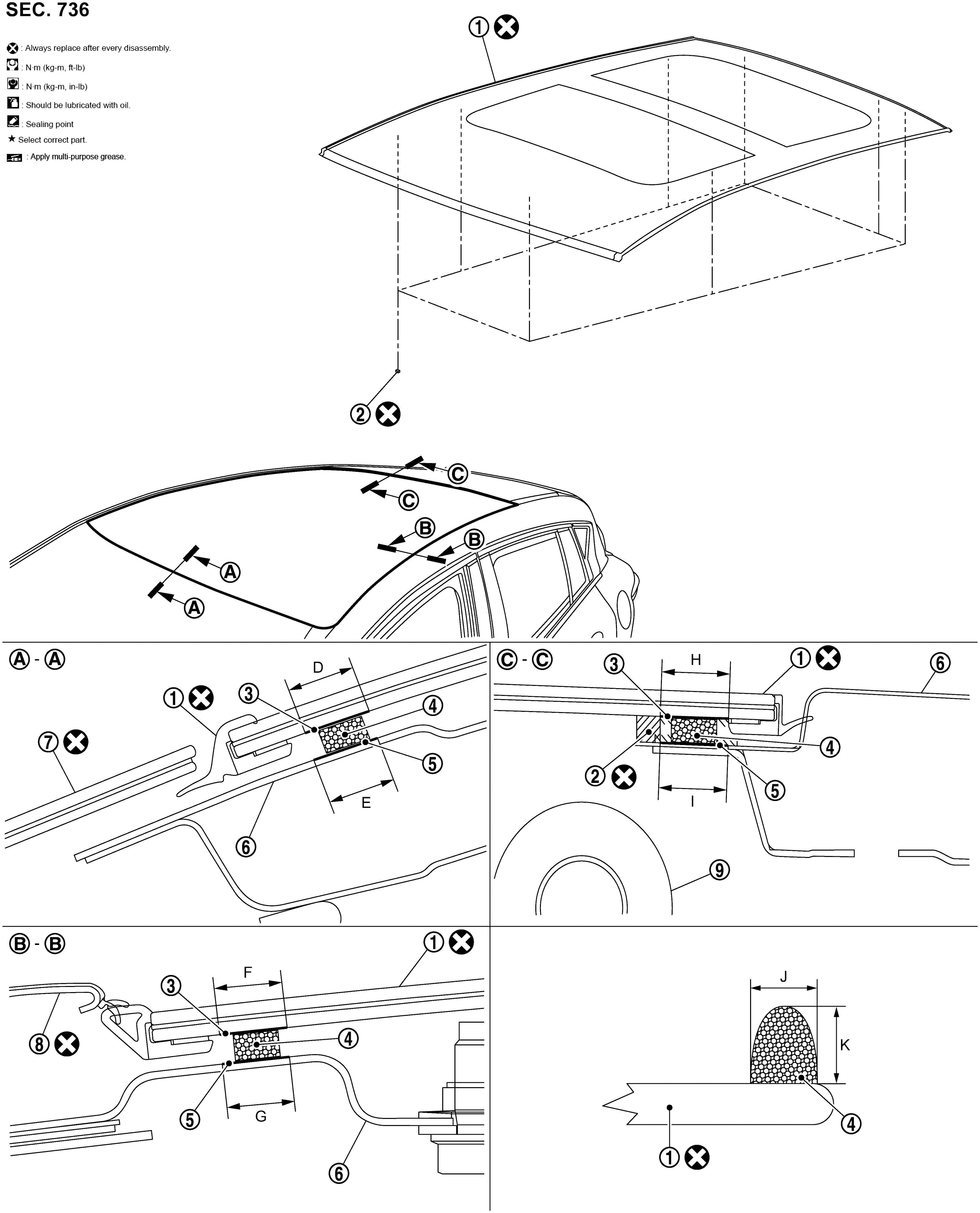

Exploded View
|
|
Glass roof assembly |
|
Glass roof spacer |
|
Glass primer |
|
|
Adhesive |
|
Painted surface primer |
|
Roof panel |
|
|
Windshield glass |
|
Roof side molding |
|
Sunshade unit assembly |
|
|
: Always replace after every disassembly. |
||||
Unit: mm (in)
|
Portion |
Primer range |
Adhesive range |
|||
|
J |
K |
||||
|
Glass roof - Roof panel |
|
D |
15.0 (0.59) |
7.0 (0.276) |
12.0 (0.472) |
|
E |
-- |
-- |
|||
|
|
F |
7.0 (0.276) |
12.0 (0.472) |
||
|
G |
-- |
-- |
|||
|
|
H |
7.0 (0.276) |
12.0 (0.472) |
||
|
I |
-- |
-- |
|||
