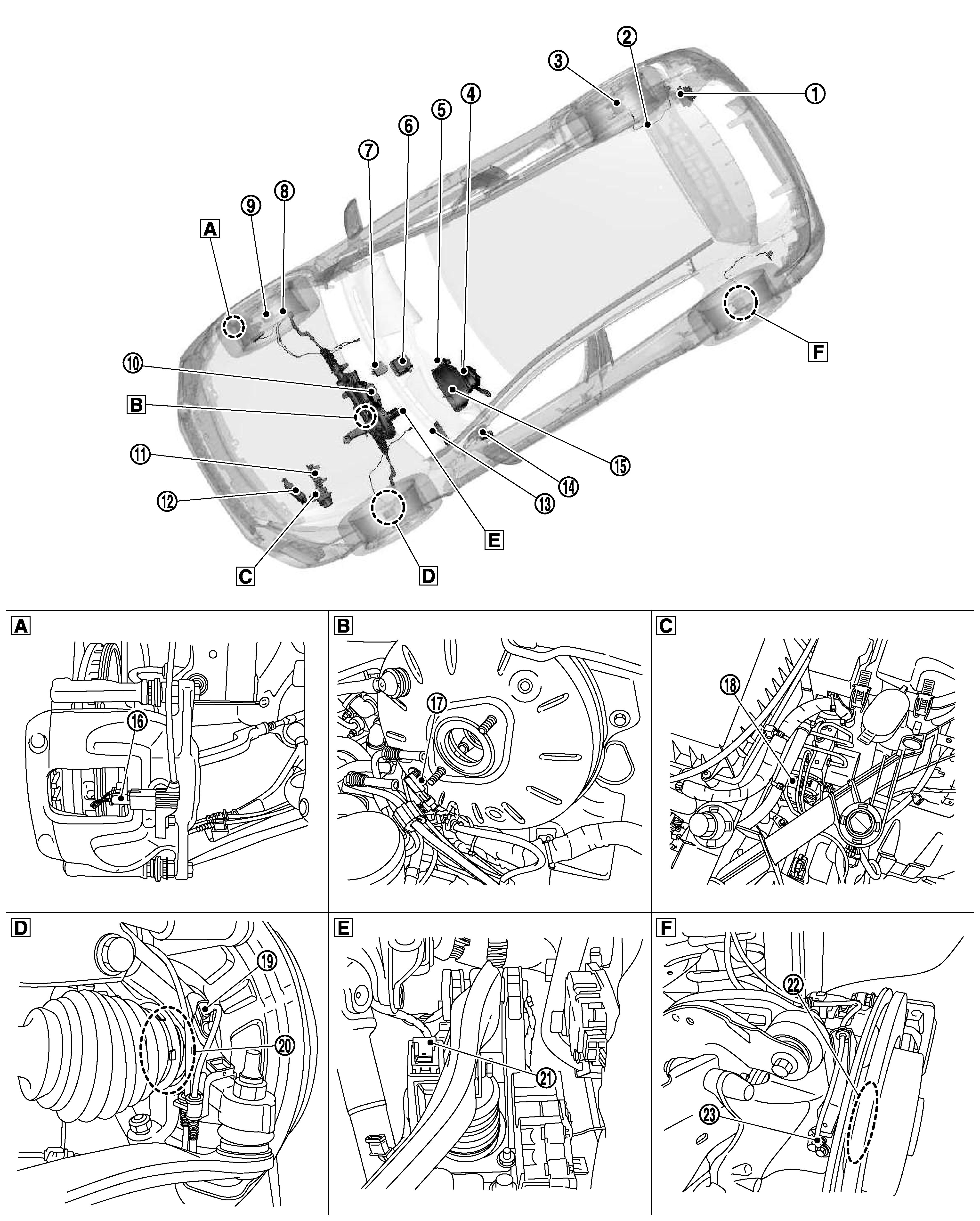

Component Parts Location

Right front brake pad

Brake booster

Inside engine room (LH side)

Steering knuckle (LH)

Brake pedal

Rear axle housing (LH)

No.

Component parts

Function

Electric parking brake control module

Mainly transmits the following signals to electronic stability program control unit via CAN communication.

• Electric parking brake switch status signal
• Electric parking brake status signal

Mainly receives the following signals from electronic stability program control unit via CAN communication.

• Electric parking brake request signal

Refer to Component Parts Location for detailed installation location.

Right rear axle rpm sensor

Refer to Axle RPM Sensor and Sensor Rotor

Right rear sensor rotor

Steering column control module

Mainly transmits the following signals to electronic stability program control unit via CAN communication.

• Steering angle signal
• Cruise control lever signal

Mainly transmits the following signals to combination meter via CAN communication. ^*1

• Steering switch signal

Refer to Component Parts Location for detailed installation location.

Electronic ignition switch control unit

Mainly transmits the each signal to each control unit via CAN communication.

• Ignition switch ON signal

Refer to Component Parts Location for detailed installation location.

Air bag diagnosis sensor unit

Mainly transmits the following signals to electronic stability program control unit via CAN communication.

• Drivers seat belt buckle switch signal

Refer to Component Parts Location for detailed installation location.

Sonar control unit

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*2

• Brake torque request signal

Refer to Component Parts Location for detailed installation location.

Right front axle rpm sensor

Refer to Axle RPM Sensor and Sensor Rotor

Right front sensor rotor

EPS control unit

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*2

• Steering assist status signal

Mainly receives the following signals from electronic stability program control unit via CAN communication. ^*2

• Steering assist request signal

Refer to Component Parts Location for detailed installation location.

TCM

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*3

• Shift position signal

Mainly receives the following signals from electronic stability program control unit via CAN communication. ^*3

• Down shift request signal

Refer to Component Parts Location for detailed installation location.

ECM

Mainly transmits the following signals to electronic stability program control unit via CAN communication.

• Accelerator pedal position signal
• Drive train operation signal
• Engine running signal

Mainly receives the following signals from electronic stability program control unit via CAN communication.

• Brake operation signal
• Engine torque down request signal

Refer to Component Parts Location for detailed installation location.

BCM

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*2

• Wiper status signal

Mainly receives the following signals from electronic stability program control unit via CAN communication. ^*2

• Brake lamp request signal

Mainly transmits the following signals to electronic stability program control unit.

• Standstill control (SSC) status signal
• Brake pedal signal

Refer to Component Parts Location for detailed installation location.

Left front door control unit

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*2

• Door switch status signal

Refer to Component Parts Location for detailed installation location.

Combination meter

Mainly transmits the following signals to electronic stability program control unit via CAN communication. ^*2

• Dynamometer mode status signal

Mainly receives the following signals from electronic stability program control unit via CAN communication. ^*2

• Wheel speed signal
• Meter display signal
• Brake warning lamp signal
• ABS warning lamp signal
• VDC warning lamp signal
• VDC OFF indicator lamp signal

Mainly receives the following signals from steering column control module via CAN communication. ^*1

• Steering switch signal

Right front brake wear sensor

Refer to Front Right Brake Wear Sensor

Brake vacuum sensor

Refer to Brake Vacuum Sensor

Electric stability program control unit

Refer to Electronic Stability Program Control Unit

Left front axle rpm sensor

Refer to Axle RPM Sensor and Sensor Rotor

Left front sensor rotor

Brake light switch

Refer to Brake light switch

Rear LH axle rpm sensor

Refer to Axle RPM Sensor and Sensor Rotor

Rear LH sensor rotor
