For 2.0L Turbo Gasoline Engine Models

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

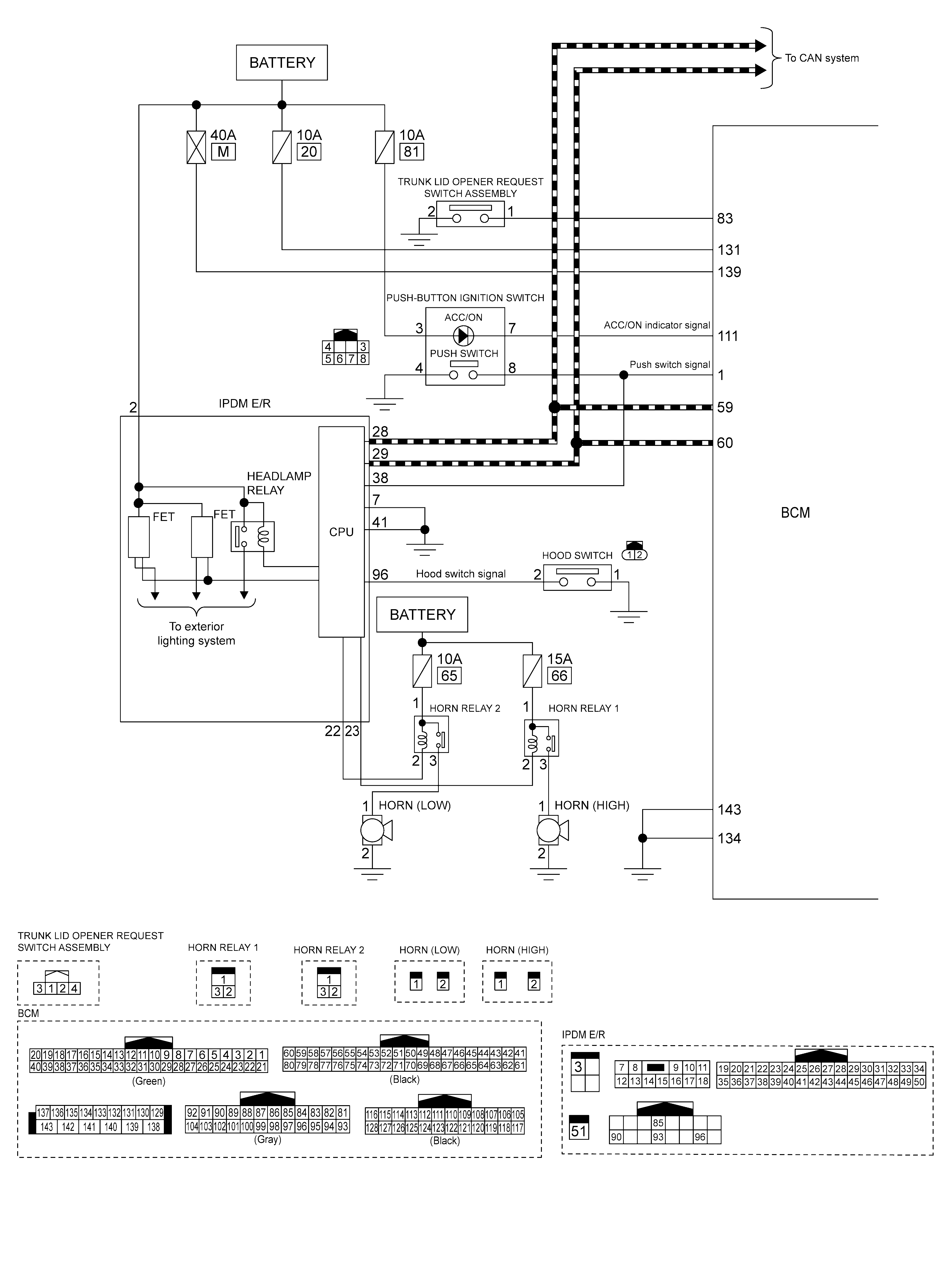

GNSILL0112551-551Courtesy of NISSAN NORTH AMERICA, INC.

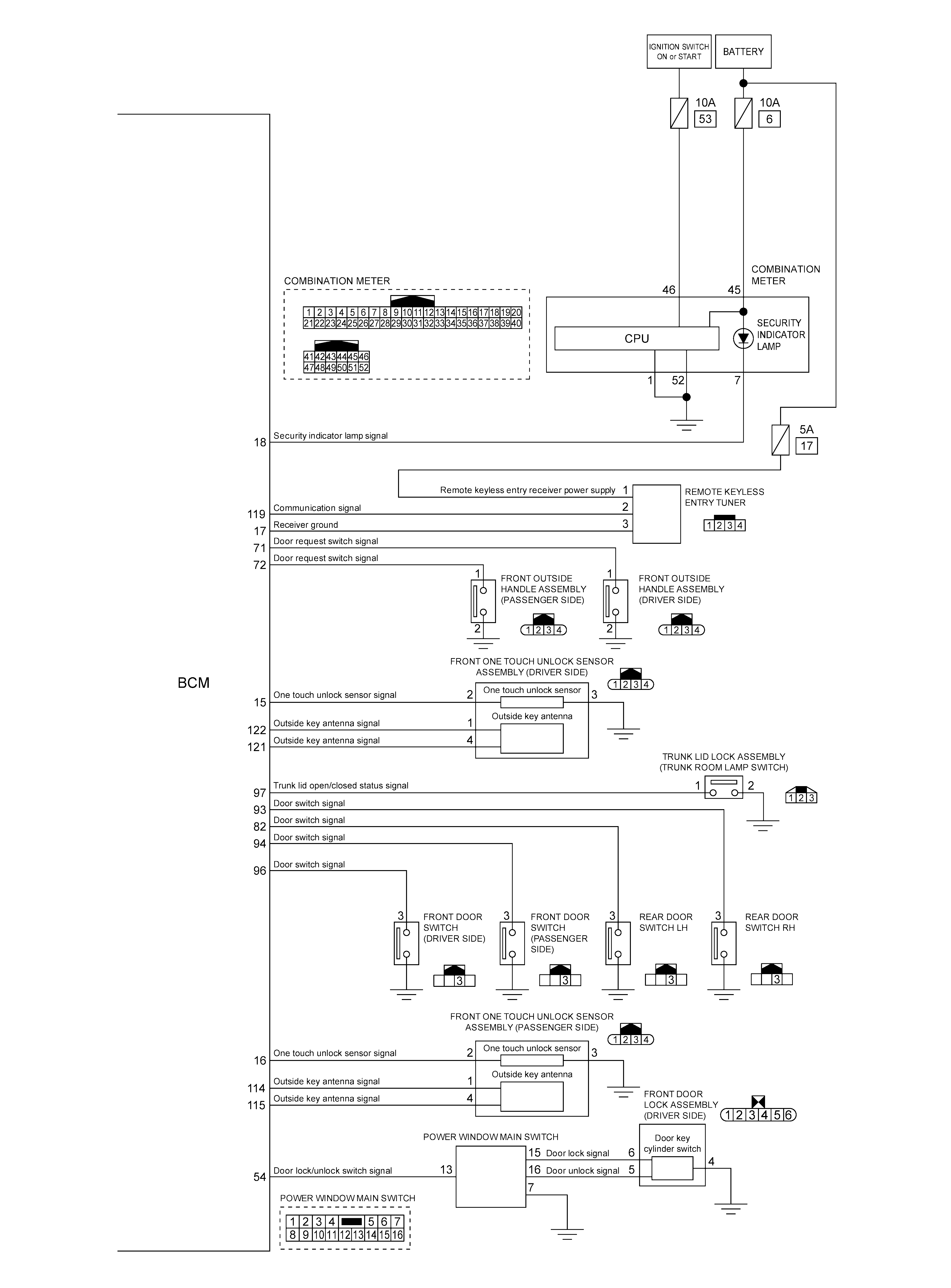

GNSJMKIB7511GB-511Courtesy of NISSAN NORTH AMERICA, INC.
