Removal and Installation: Removal

  1. Remove cluster lid C. Refer to Removal and Installation .

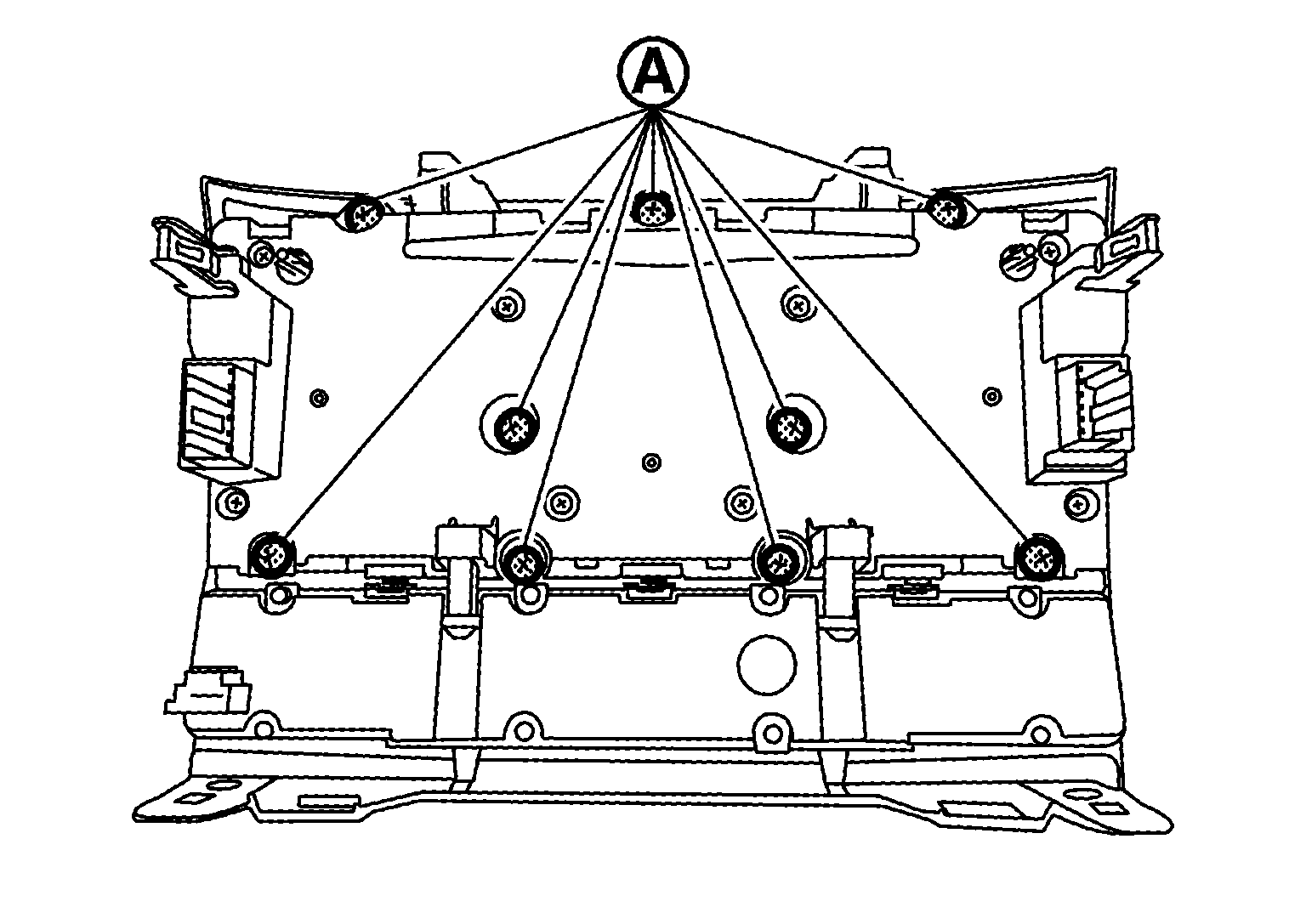

  2. Remove screws SYMBOL .
    GNSJMJIB1752Z-752Courtesy of NISSAN NORTH AMERICA, INC.

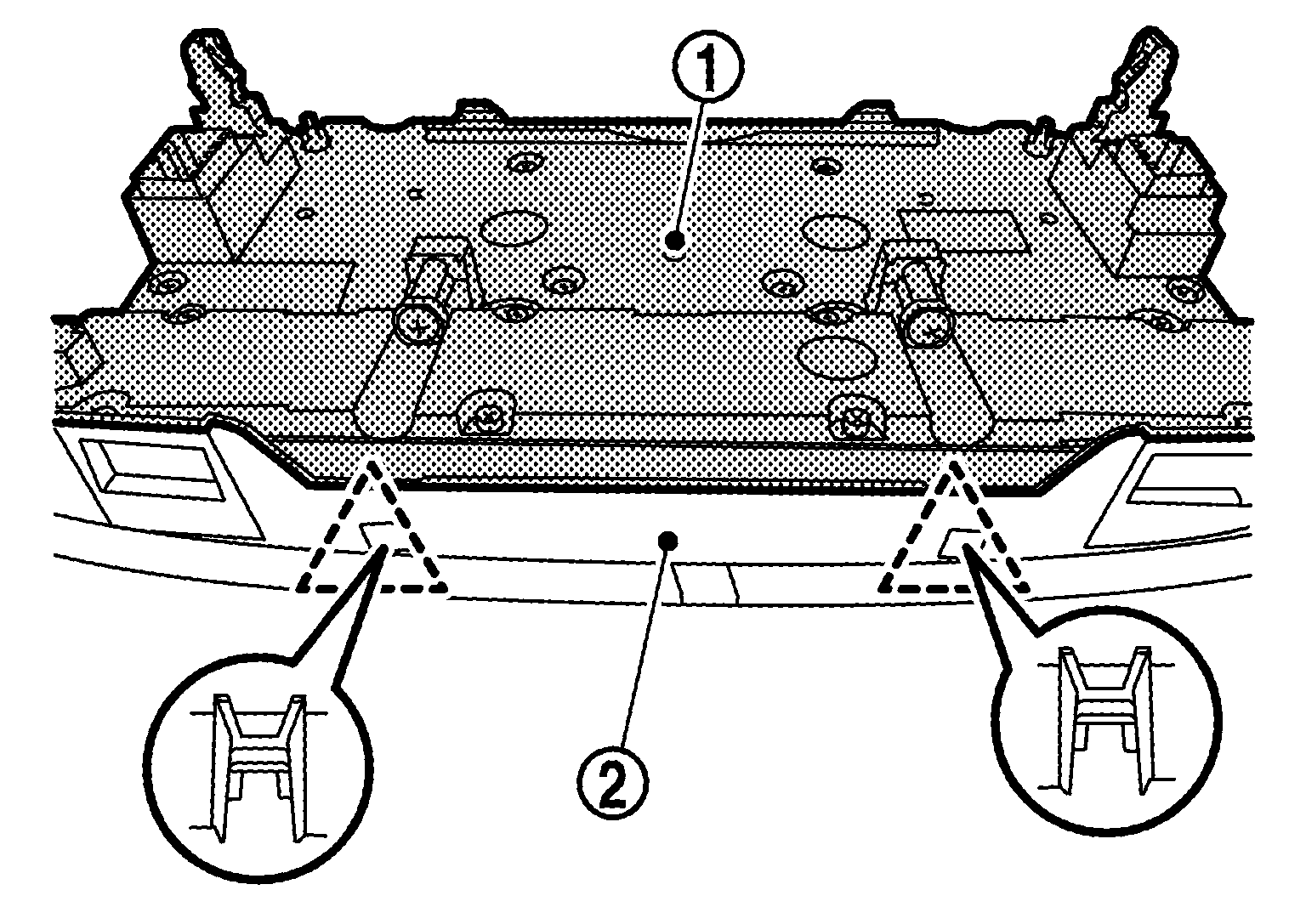

  3. Disengage the fixing pawls, and then remove multifunction switch and upper control panel control unit SYMBOL from cluster lid C.
    GNSJMJIB1753Z-753Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

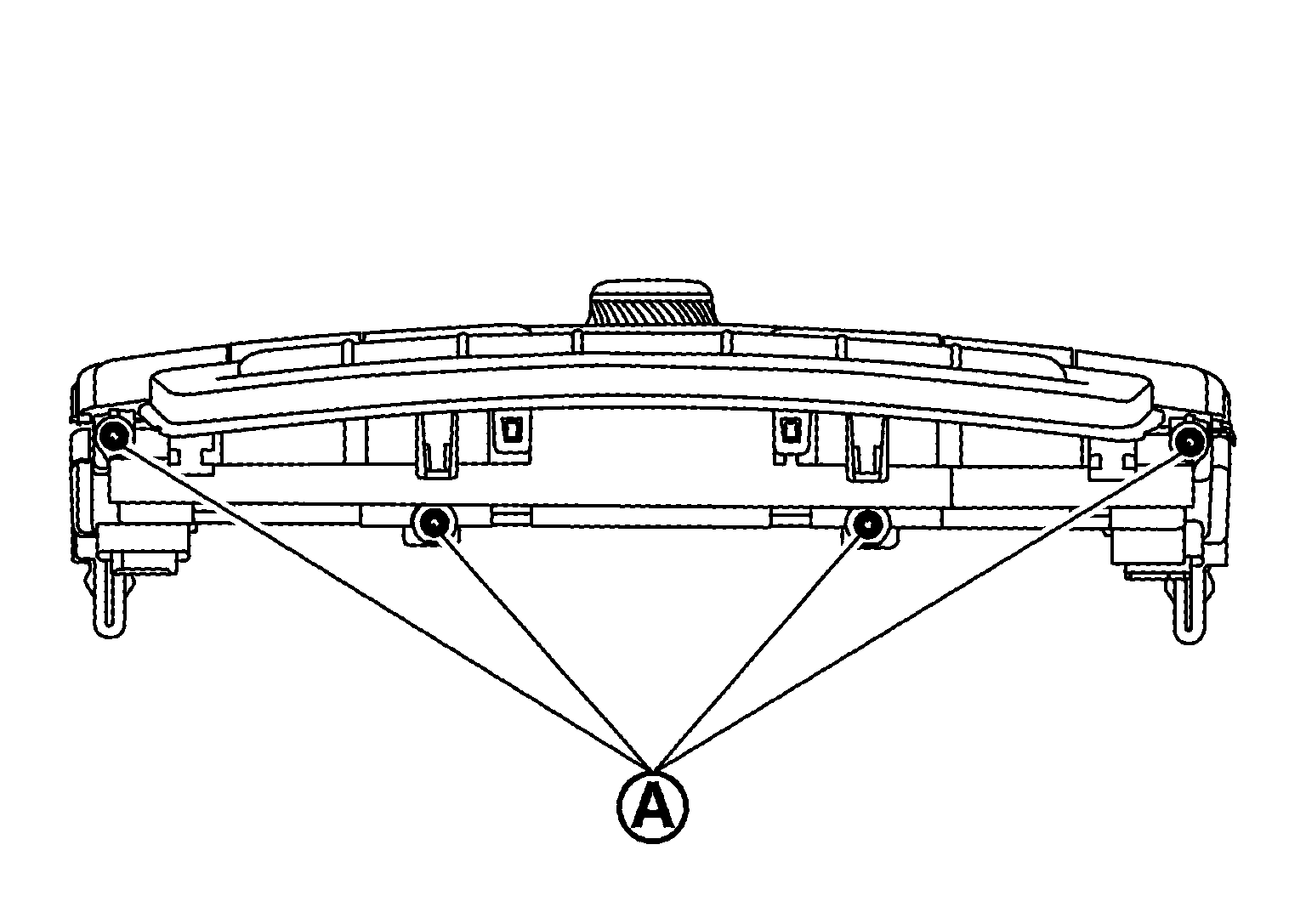

  4. Remove screws SYMBOL and then remove upper control panel control unit.
    GNSJMJIB1751Z-751Courtesy of NISSAN NORTH AMERICA, INC.
