Diagnosis Procedure

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT FOR OPEN

Turn ignition switch OFF.
Disconnect display control unit harness connector and around view monitor control unit harness connector.

Check continuity between display control unit harness connector and around view monitor control unit harness connector.

Display control unit		Around view monitor control unit		Continuity
Connector	Terminal	Connector	Terminal
M101	38	B51	47	Existed
	58		48

Is the inspection result normal?

YES

GO TO 2.

Repair or replace malfunctioning parts.

CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT FOR SHORT

Check continuity between display control unit harness connector and ground.

Display control unit		Ground	Continuity
Connector	Terminal
M101	58		Not existed

Is the inspection result normal?

YES

GO TO 3.

Repair or replace malfunctioning parts.

CHECK CAMERA IMAGE SIGNAL

Connect display control unit harness connector and around view monitor control unit harness connector.
Turn ignition switch ON.

Check signal between display control unit harness connector and ground.

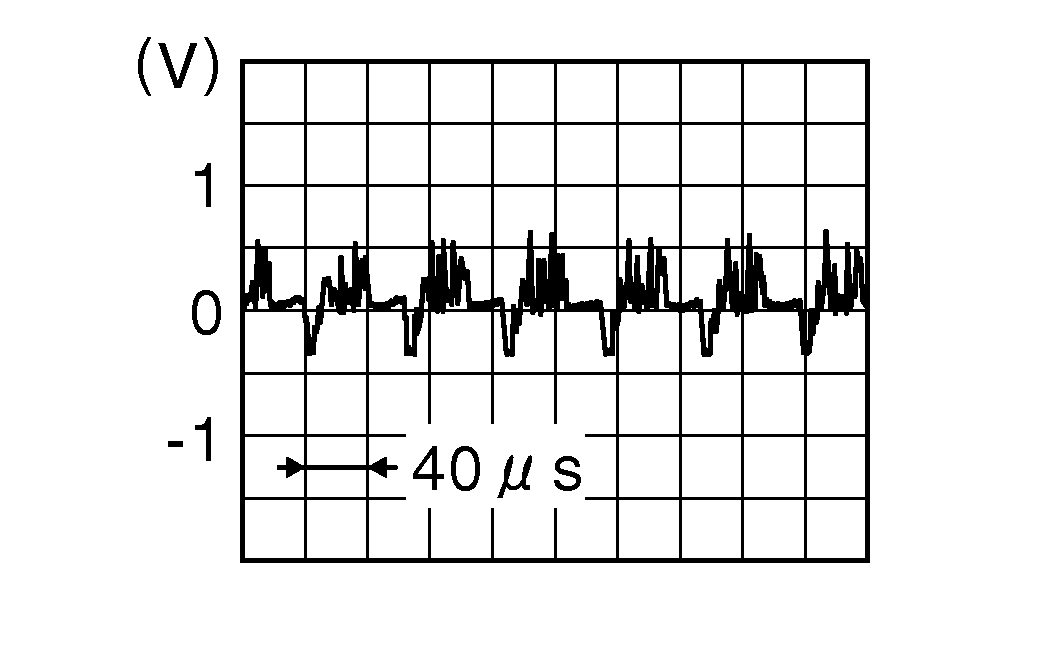

Terminals			Condition	Reference value
(+)		(-)
Display control unit
Connector	Terminal
M101	58	Ground	At camera image is displayed.	Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

Replace display control unit. Refer to Removal and Installation .

Replace around view monitor control unit. Refer to Removal and Installation .
