- CHECK MULTIFUNCTION SWITCH (1)
- Turn ignition switch OFF.
- Disconnect multifunction switch harness connector.

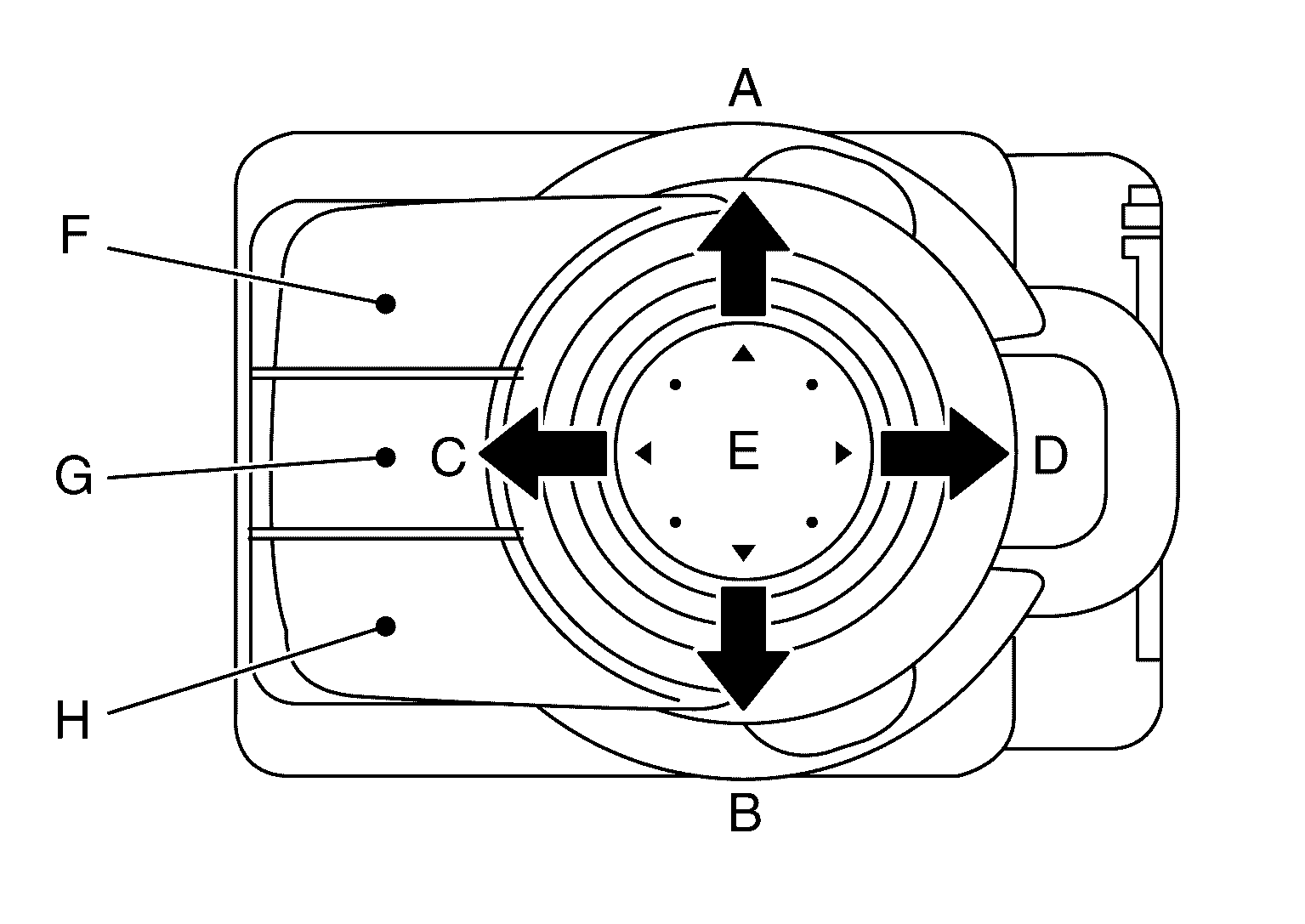

- Check the resistance between multifunction switch terminals as per the following condition.
Terminal
Switch position
Resistance (Ohm)
(+)
(-)
1
2
All OFF
4632 - 4868
E
390.1 - 410.1
F
45.3 - 47.7
4
All OFF
4632 - 4868
A
605.1 - 636.2
B
211.2 - 222.0
G
45.3 - 47.7
10
All OFF
4632 - 4868
C
605.1 - 636.2
D
211.2 - 222.0
H
45.3 - 47.7
Is the inspection result normal?
YES
GO TO 2.
NO
Replace multifunction switch. Refer to Removal and Installation .
- CHECK MULTIFUNCTION SWITCH (2)
- Reconnect all harness connectors disconnected.
- Turn ignition switch ON.
- Check the voltage between integral switch harness connector terminals as per the following condition.
Integral switch
Condition
Voltage
(Approx.)
Connector
Terminals
(+)
(-)
Terminal
M3
32
31
Multifunction switch
Rotate
2.0 - 4.3 V
37
Is the inspection result normal?
YES
INSPECTION END
NO
Replace multifunction switch. Refer to Removal and Installation .
