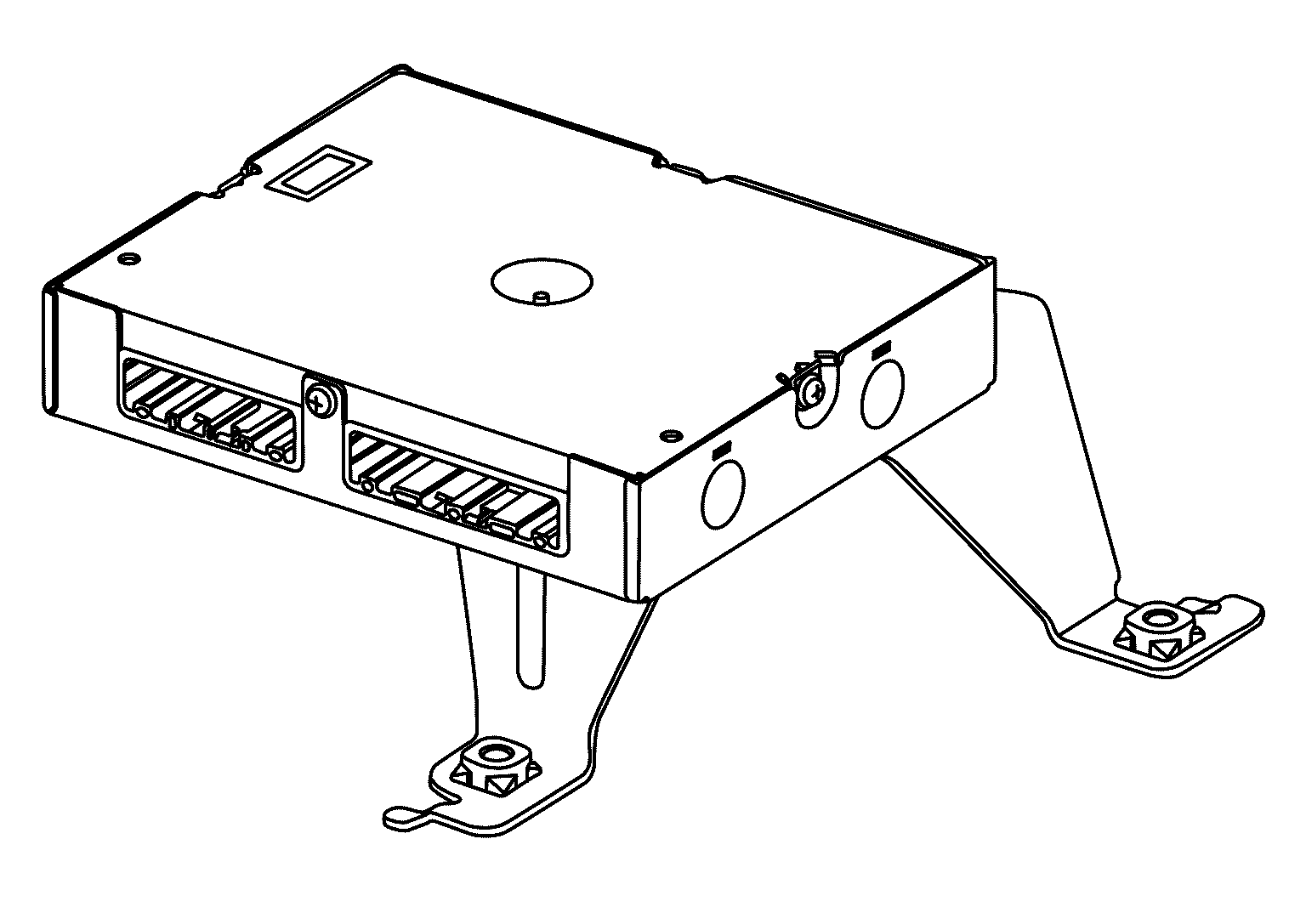

Around View Monitor Control Unit
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
- The around view monitor control unit is installed at the trunk room.
- Necessary signals are transmitted/received to/from control unit via CAN communication.
- Necessary signals are transmitted/received to/from display control unit via AV communication.
- Camera image signals received from each camera are converted/synthesized in the around view monitor control unit and transmitted to the display control unit.
- Vehicle width guide lines, predicted course line, vehicle front guiding line and vehicle side line, tire icon, and vehicle icon are rendered with the around view monitor control unit and combined with camera image.
