Removal and Installation: Removal

Remove instrument panel. Refer to Removal and Installation .

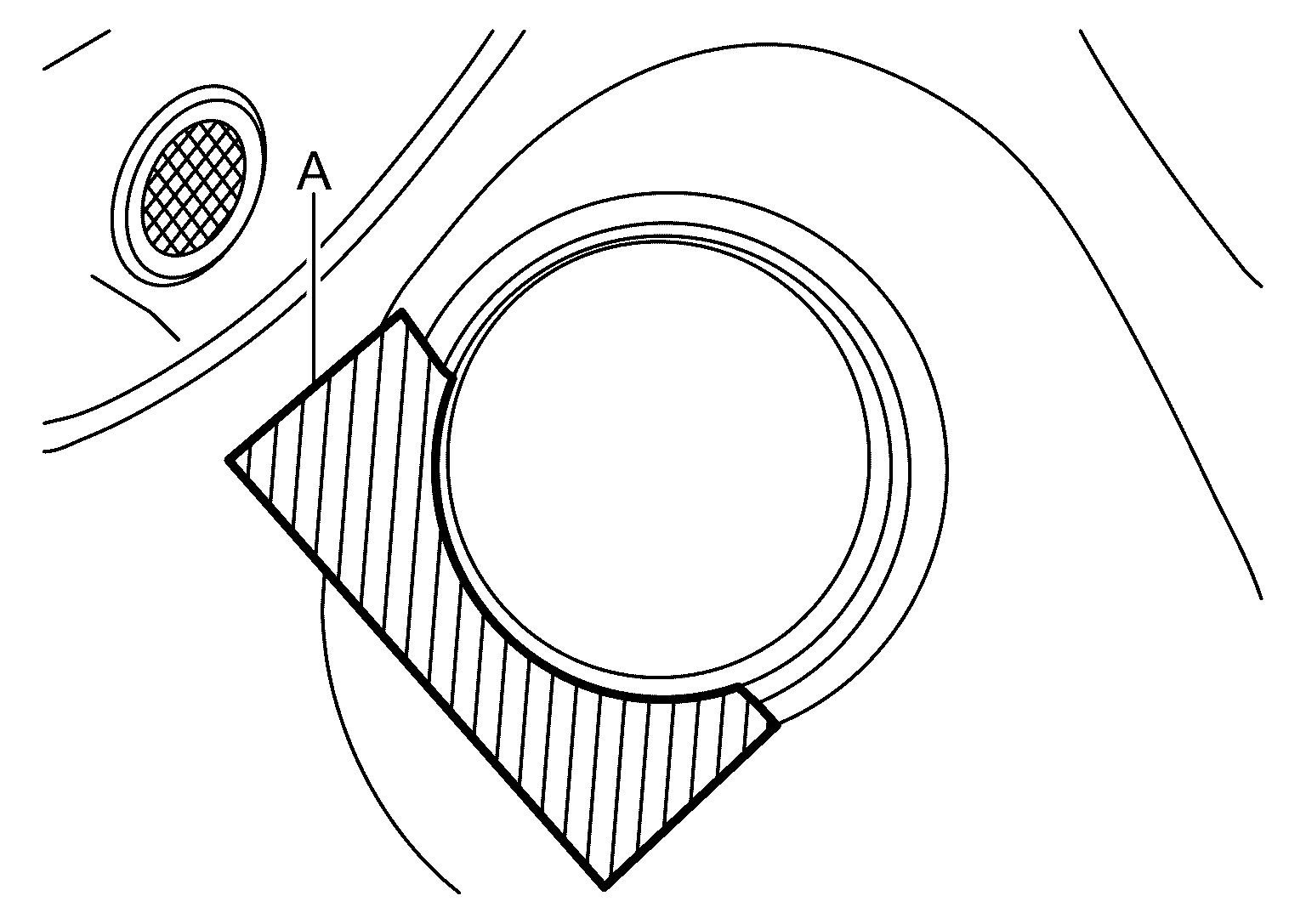

Apply protective tape (A) to instrument panel around push-button for preventing damage.

Courtesy of NISSAN NORTH AMERICA, INC.

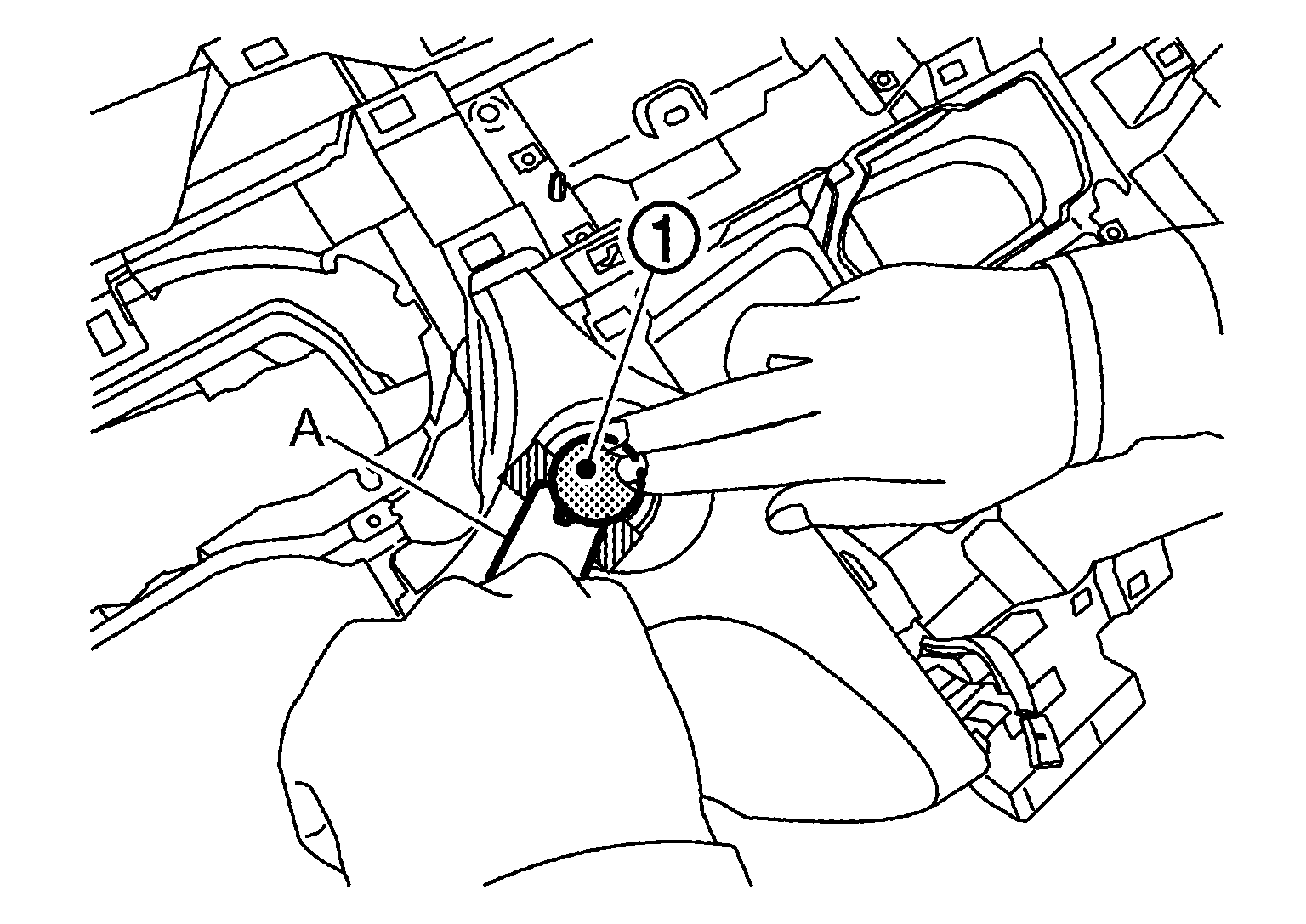

Disengage push-button using a remover tool (A)

Courtesy of NISSAN NORTH AMERICA, INC.

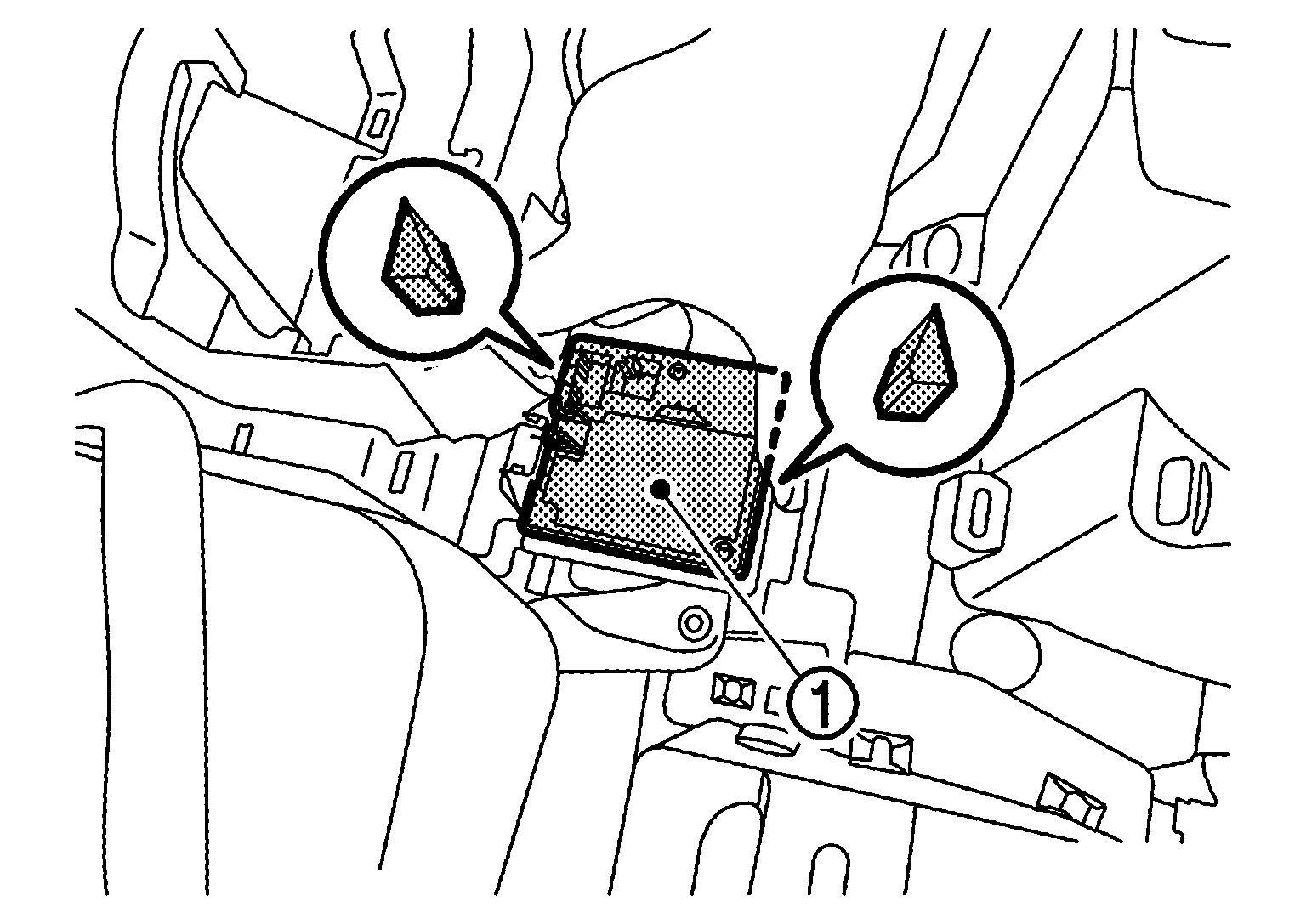

Disengage the electronic ignition switch control unit fixing pawls, and then remove the electronic ignition switch control unit.

Courtesy of NISSAN NORTH AMERICA, INC.
