Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

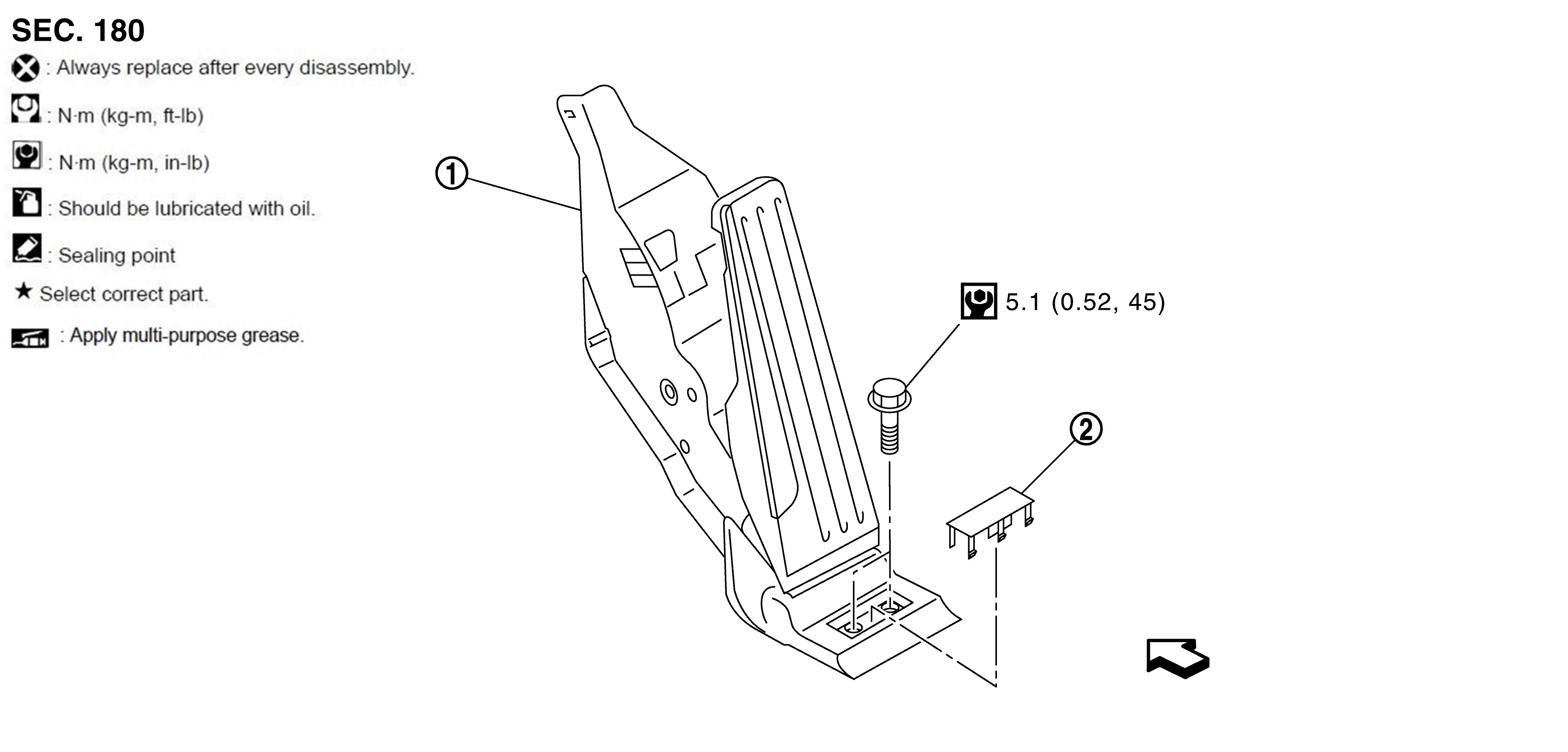

GNSJSBIA3902GB-902Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Accelerator pedal assembly

SYMBOL

Bolt cap

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, in-lb)
