System Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

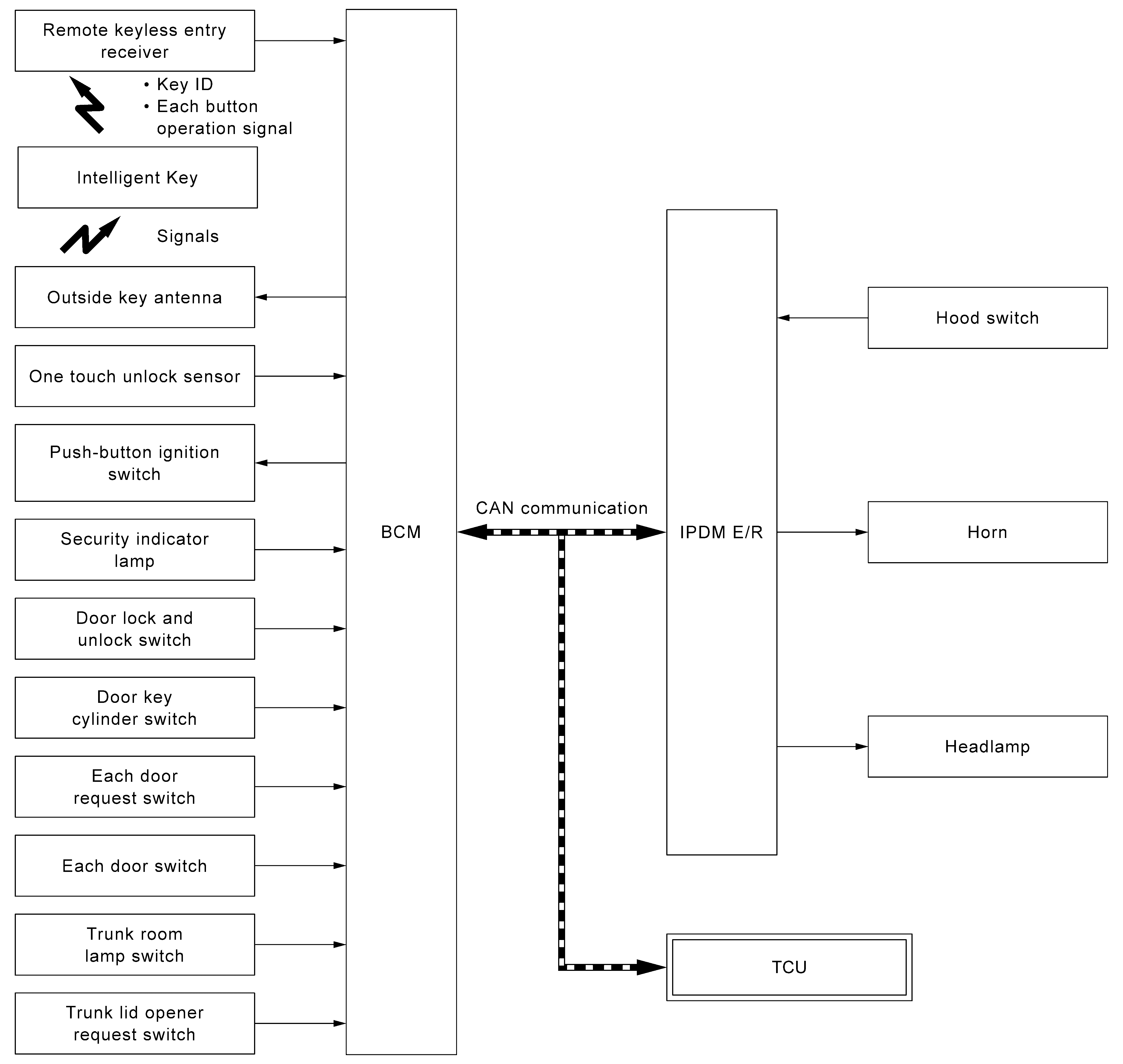

GNSJMKIB6286GB-286Courtesy of NISSAN NORTH AMERICA, INC.
