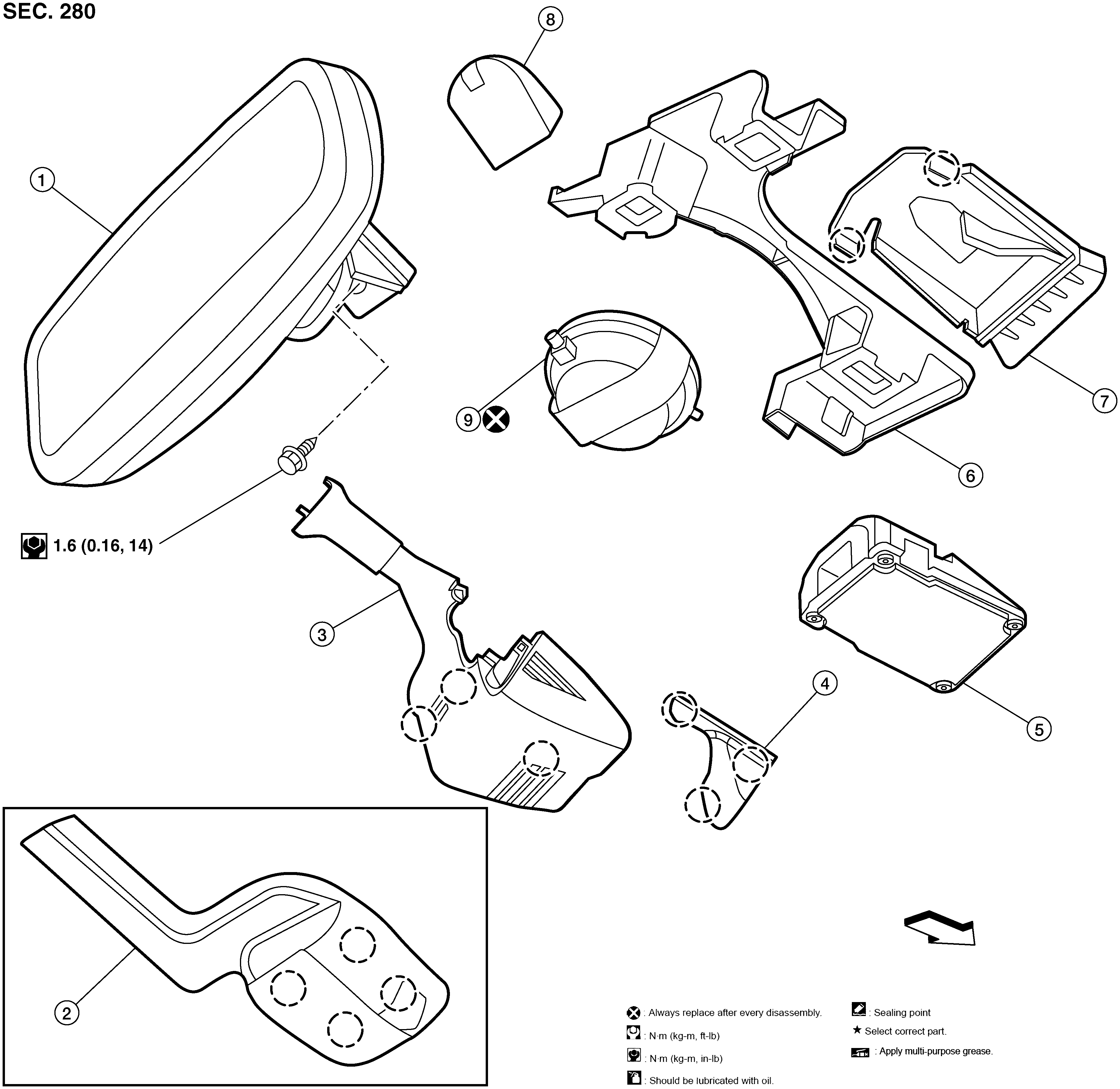

Exploded View

1.

Inside mirror

2.

Rain sensor cover (without lane departure warning)

3.

Lane camera cover [RH (with lane departure warning)]

4.

Lane camera cover [LH (with lane departure warning)]

5.

Lane camera (if equipped)

6.

Lane camera cover bracket (if equipped)

7.

Lane camera bracket (if equipped)

8.

Mirror base

9.

Rain sensor

Pawl

Front
