Fuel Pump Control Module (FPCM) Connector End View (B50)

Connector Types:  TB06FB

Connector Color:  BLACK

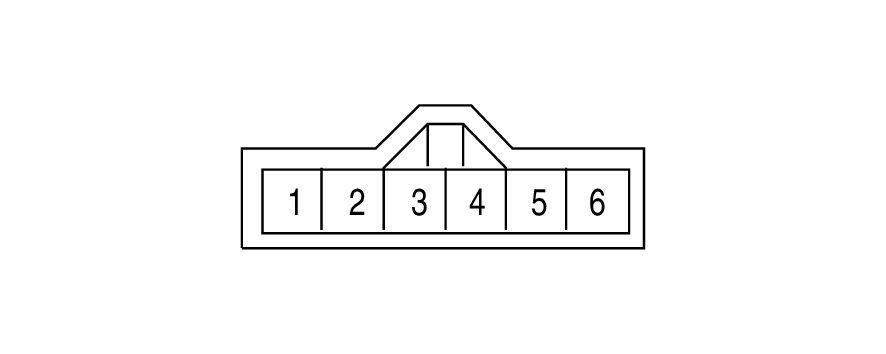

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

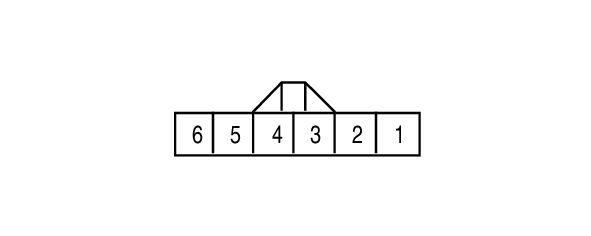

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	F/PUMP+
2	W	F/PUMP-
3	B	GROUND
4	R	FUEL PUMP CONTROL MODULE {FPCM) CHECK
5	GR	FUEL PUMP CONTROL MODULE {FPCM)
6	W	FUEL PUMP
