Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to Removal and Installation .

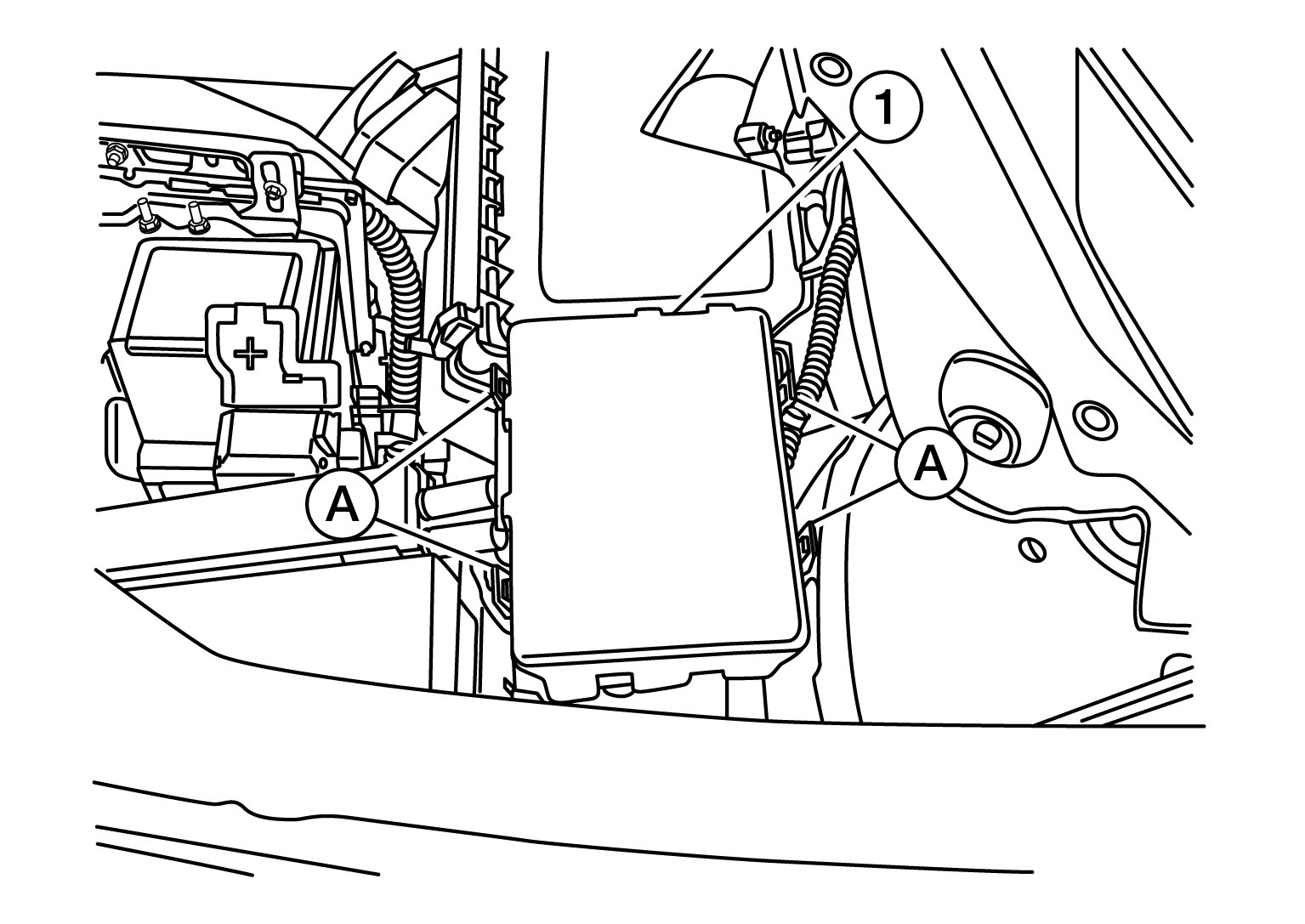

  2. Release the pawls (A) and separate the IPDM E/R (1) from the case.
    GNSDB111756Courtesy of NISSAN NORTH AMERICA, INC.

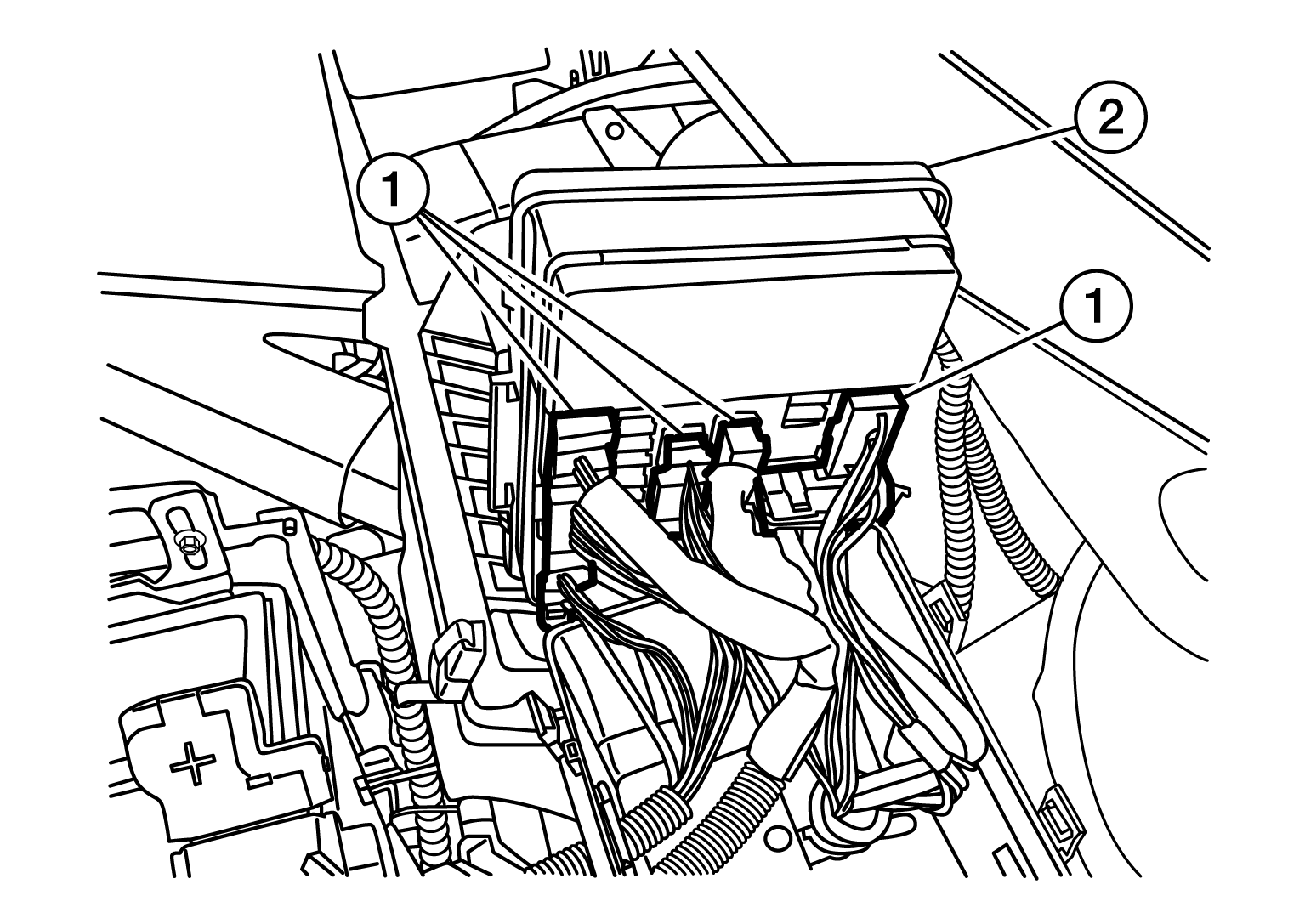

  3. Disconnect all harness connectors (1) from the IPDM E/R (2) and remove.
    GNSDB114237Courtesy of NISSAN NORTH AMERICA, INC.
