Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Removal And Installation
>>
Oil Pump
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

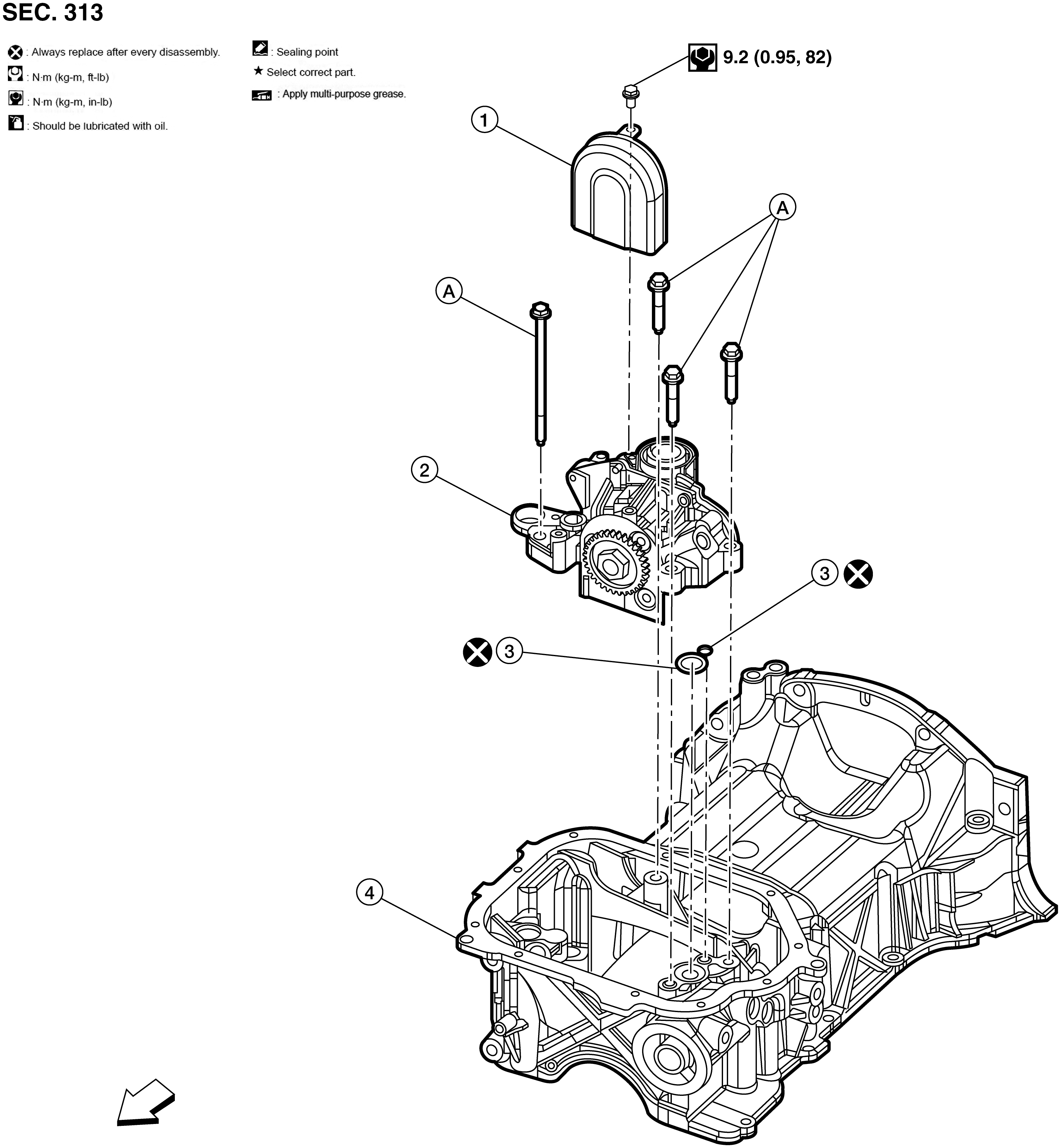

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Oil Pump Cover
2.
Oil Pump Assembly
3.
O-Rings
4.
Oil Pan
A.
Bolts
Front
Courtesy of NISSAN NORTH AMERICA, INC.
