General Precautions

Turn ignition switch OFF and disconnect the battery cable from the negative terminal before connecting or disconnecting the CVT assembly harness connector. Because battery voltage is applied to TCM even if ignition switch is turned OFF.

Courtesy of NISSAN NORTH AMERICA, INC.

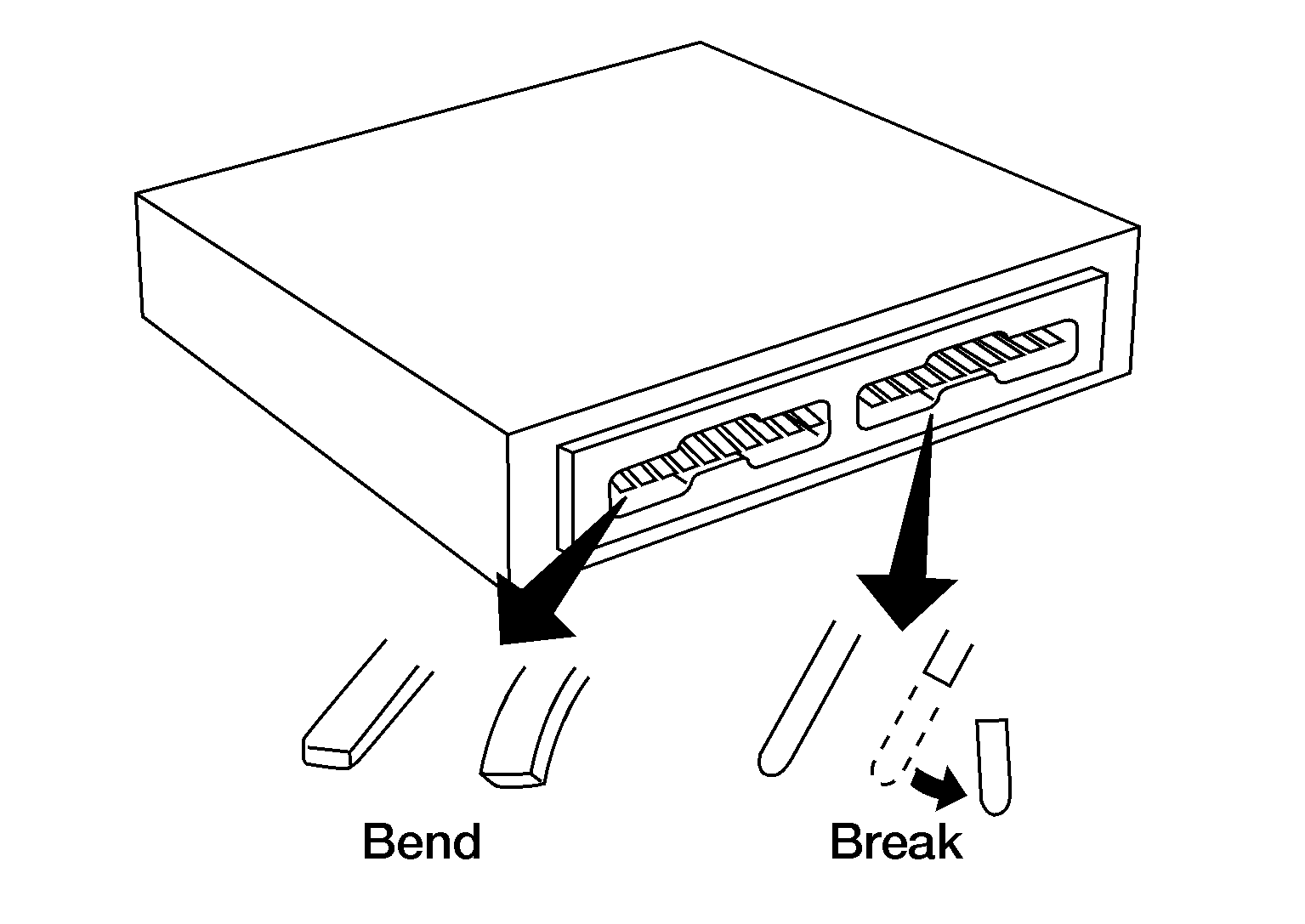

When connecting or disconnecting pin connectors into or from TCM, do not damage pin terminals (bend or break).

Courtesy of NISSAN NORTH AMERICA, INC.

Check that there are not any bends or breaks on TCM pin terminal, when connecting pin connectors.

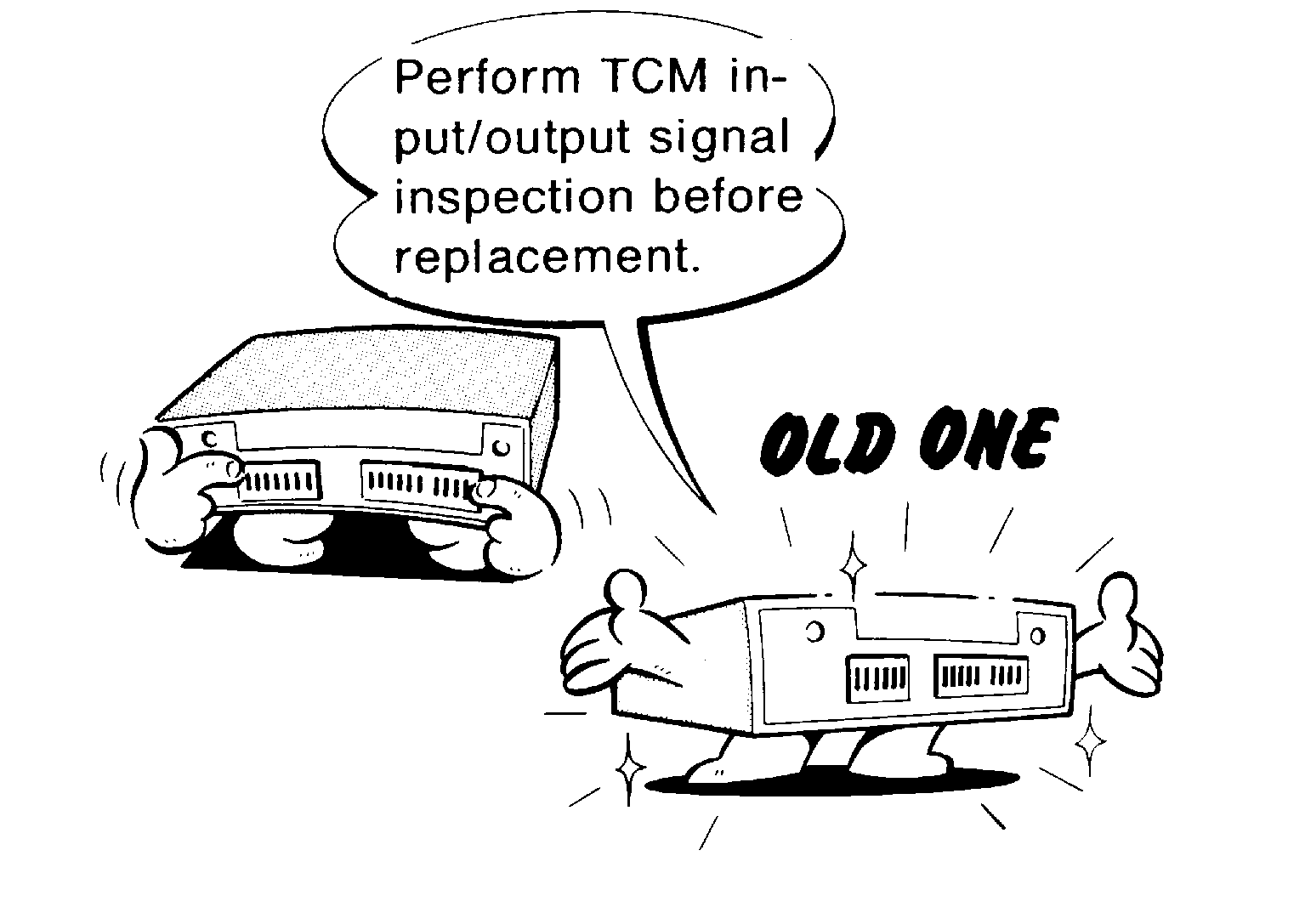

Perform TCM input/output signal inspection and check whether TCM functions normally or not before replacing TCM. Refer to Reference Value .

Courtesy of NISSAN NORTH AMERICA, INC.
Perform "DTC (Diagnostic Trouble Code) CONFIRMATION PROCEDURE".

Courtesy of NISSAN NORTH AMERICA, INC.

If the repair is completed DTC should not be displayed in the "DTC CONFIRMATION PROCEDURE".

Always use the specified brand of CVT fluid. Refer to Fluids and Lubricants .
Use lint-free paper, not cloth rags during work.
Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.
Before proceeding with disassembly, thoroughly clean the outside of the transaxle. It is important to prevent the internal parts from becoming contaminated by dirt or other foreign matter.
Disassembly should be done in a clean work area.
