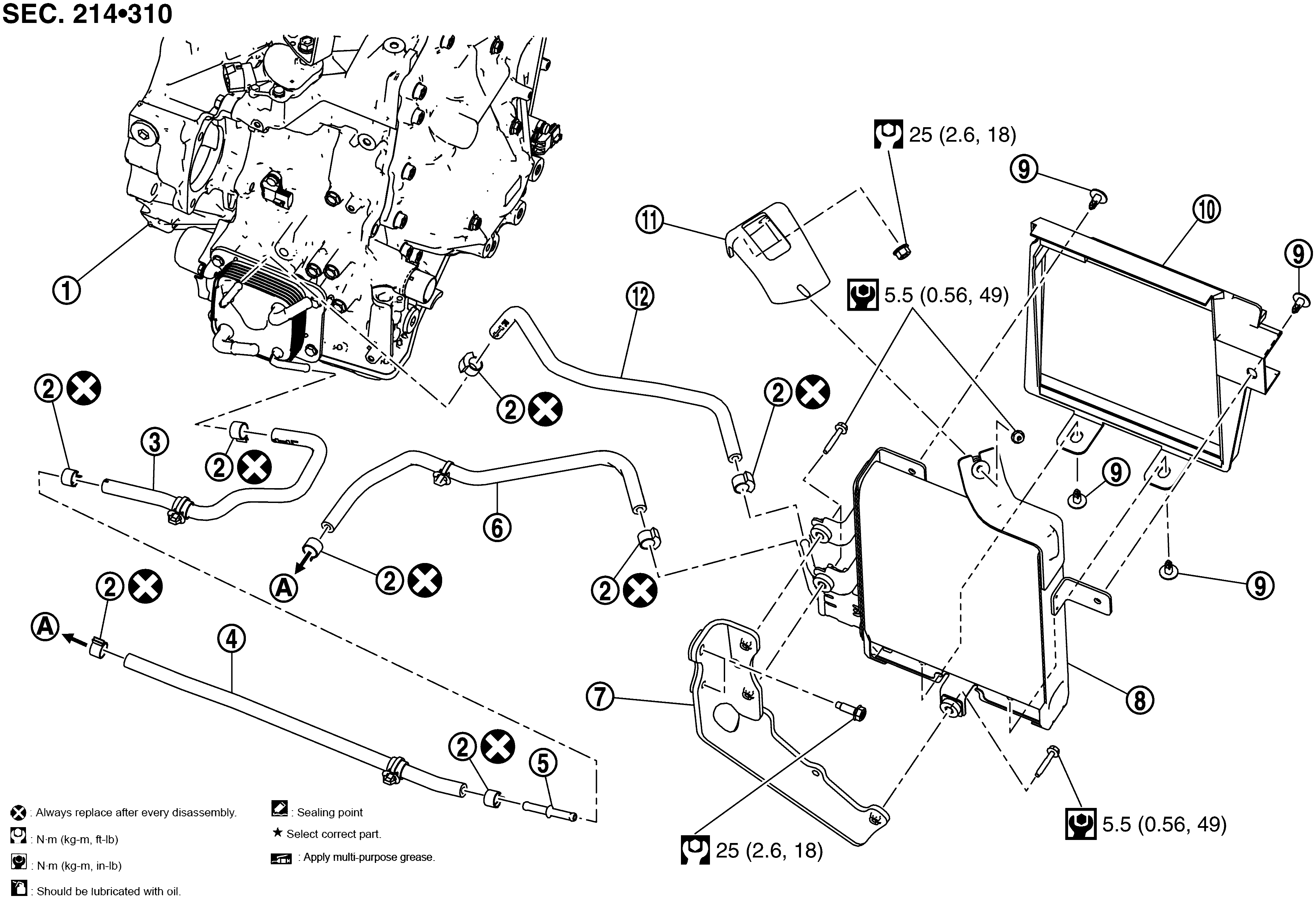

Component Location
|
|
Transaxle Assembly |
|
Hose Clamp |
|
CVT Fluid Cooler Hose A |
|
|
CVT Fluid Cooler Hose B |
|
Connector Tube |
|
CVT Fluid Cooler Hose C |
|
|
Bracket |
|
CVT Fluid Cooler |
|
Clip |
|
|
Air Guide |
|
Bracket |
|
CVT Fluid Cooler Hose D |
|
|
To radiator. Refer to Exploded View. |
||||
|
|
: Always replace after every disassembly. |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
|
|
: N.m (kg-m, in-lb) |
||||
