Switch Name and Function

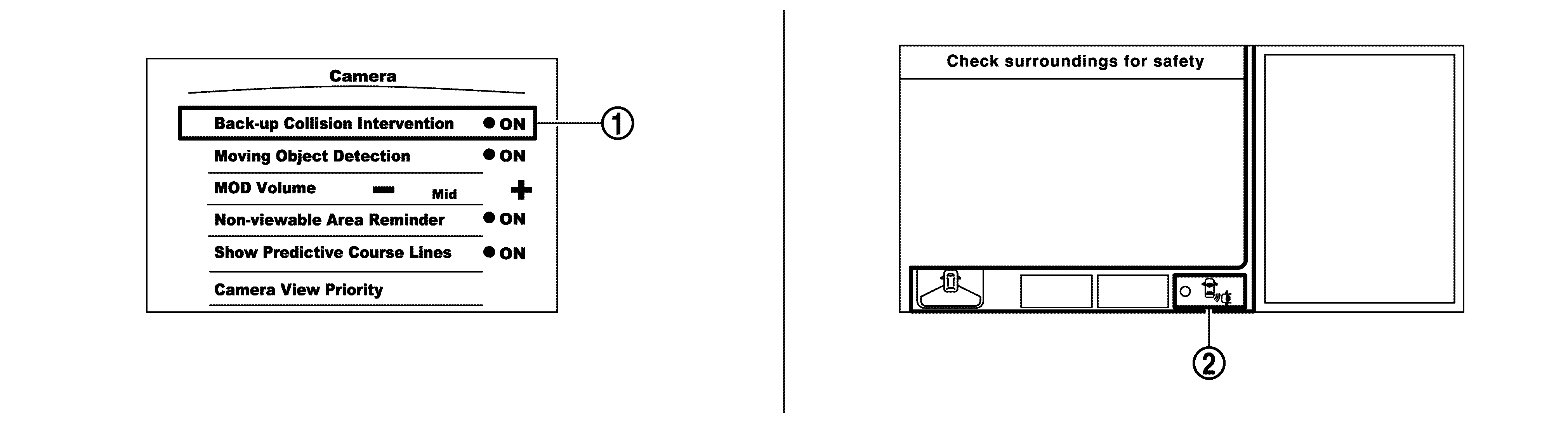

GNSJSOIA1059Z-059Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

BCI setting screen

(Navigation system setting screen)

The setting of BCI system can be switched between ON and OFF

SYMBOL

BCI system temporary switch

(Navigation screen)

Turns BCI system temporarily OFF
