Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. Press the "SETTING" button on the multifunction switch. The "Settings" screen is displayed.

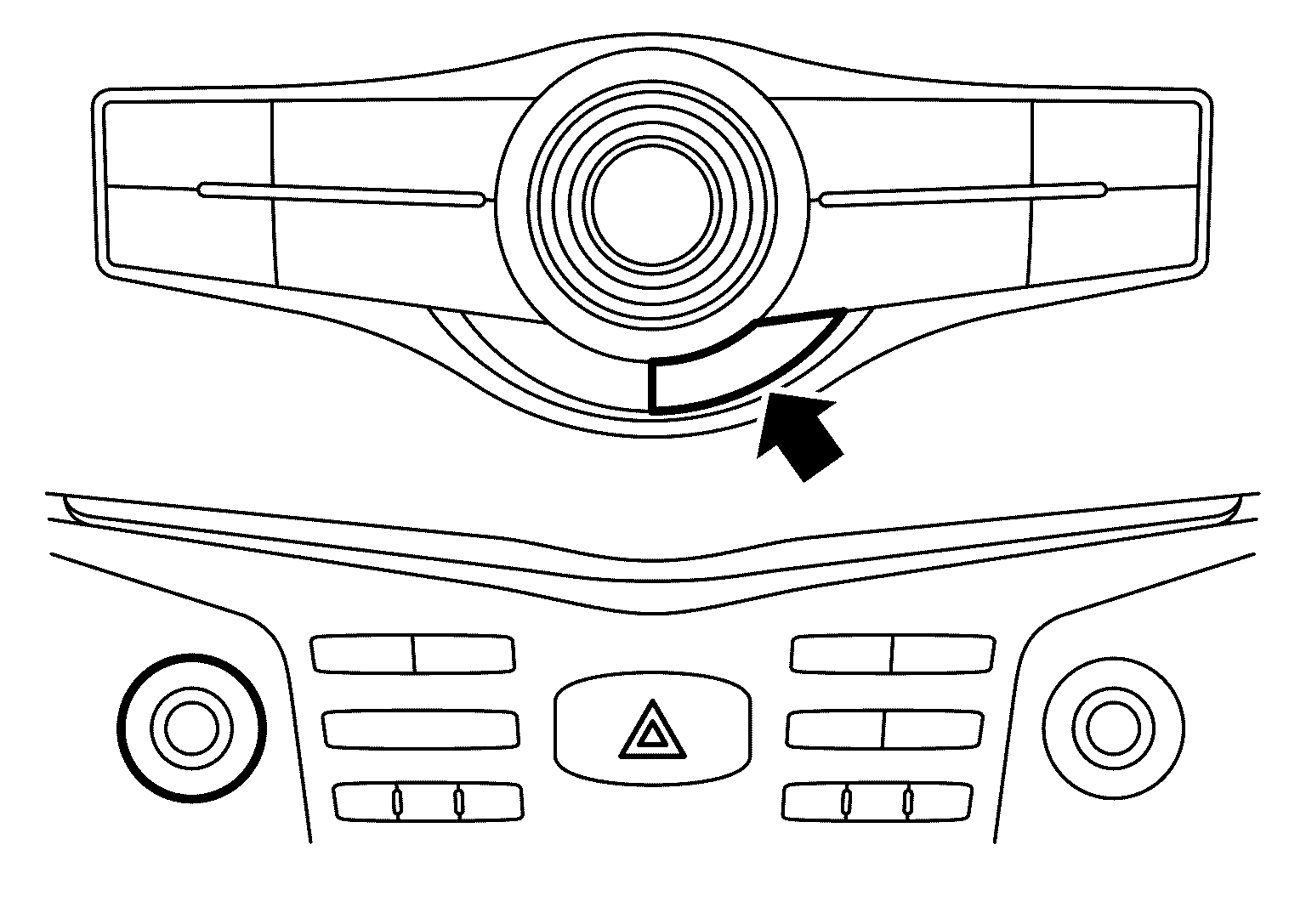

    GNSJSNIB1718Z-718Courtesy of NISSAN NORTH AMERICA, INC.
  4. Press the "Track" button on the AV switch at least 3 times within 15 seconds after the settings screen is displayed.

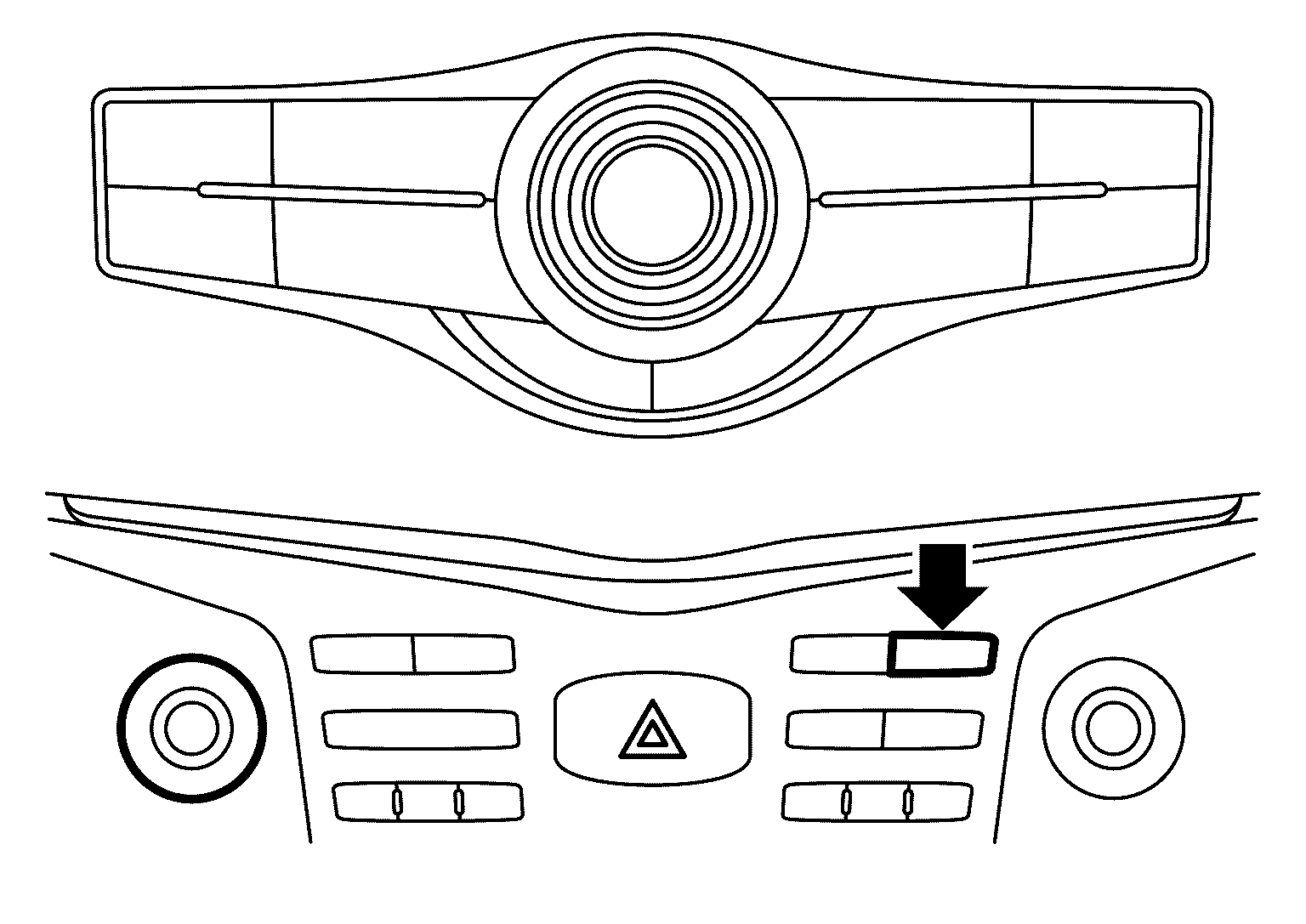

    GNSJSNIB1719Z-719Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: If the "Track" button is pressed more than 4 times, self-diagnosis mode will not start. Turn the ignition OFF and start again from step 1.
  5. Touch the screen (area of the figure) for 3 seconds.
    GNSJSNIB1720Z-720Courtesy of NISSAN NORTH AMERICA, INC.
  6. The trouble diagnosis initial screen is displayed, and "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
