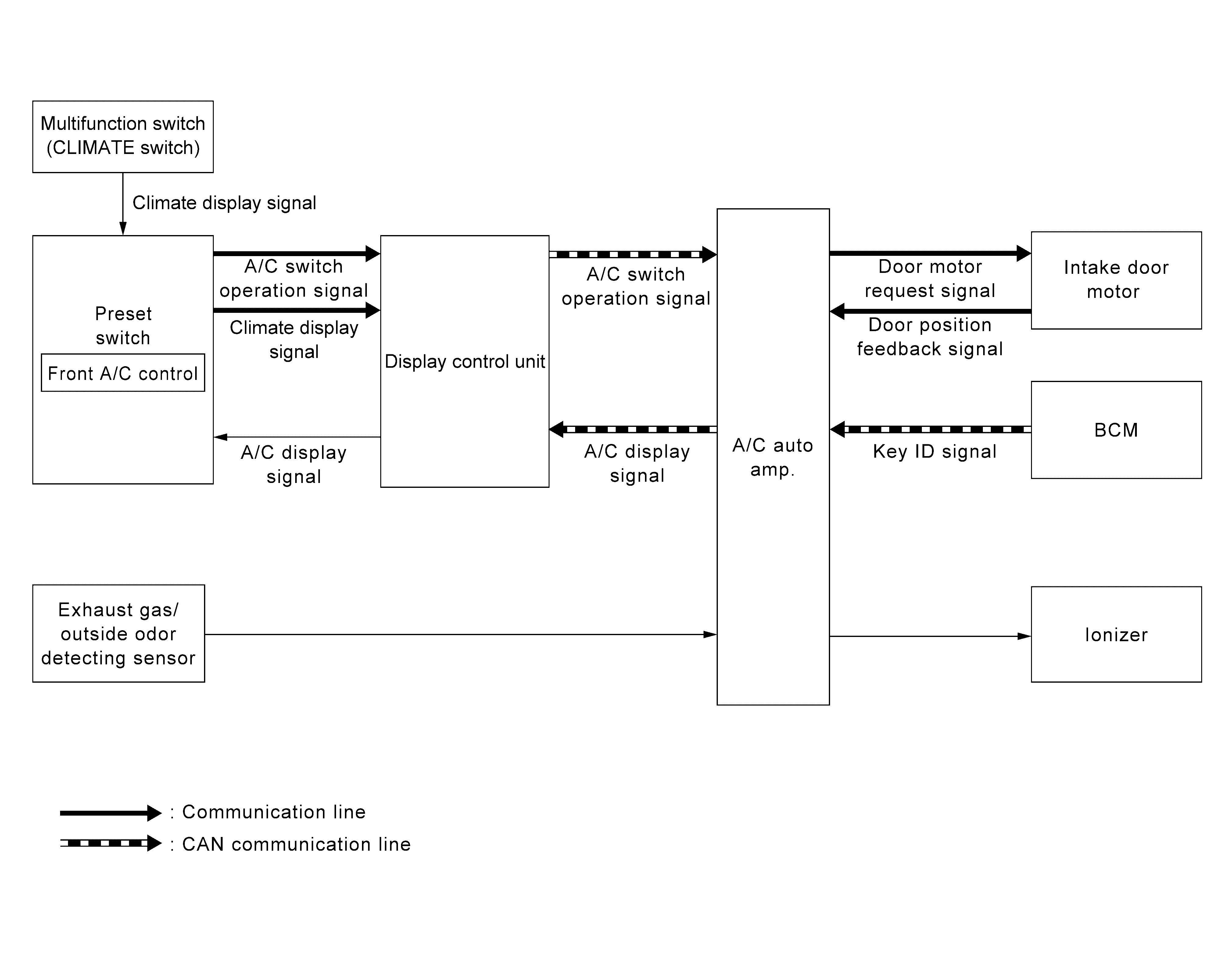

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

ACCS (advanced climate control system) controls passenger room air. It maintains the cleanliness of the passenger room air using an in-cabin microfilter and a combination of each of the following functions.
- Automatic Intake Control (Exhaust Gas / Outside Odor Detecting Mechanism) : Refer to System Description .
- Plasmacluster Control : Refer to System Description .
  NOTE:
  - Plasmacluster ^™ ion technology developed by Sharp Corporation is installed in this item.
  - Plasmacluster ^™ is a trademark of Sharp Corporation.
- Intelligent Key Interlock Function : Refer to System Description .
Various operations of ACCS (advanced climate control system) are transmitted from preset switch to display control unit via communication line and from display control unit to A/C auto amp. via CAN communication. A/C auto amp. sends each indication information to display control unit via CAN communication. Display control unit displays each indication information that is received.
